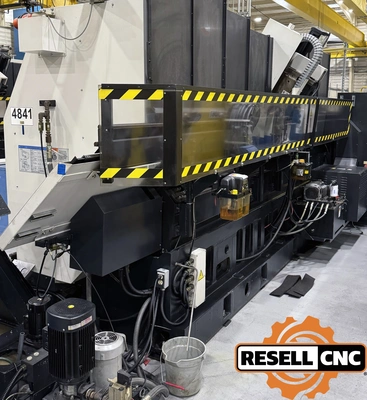

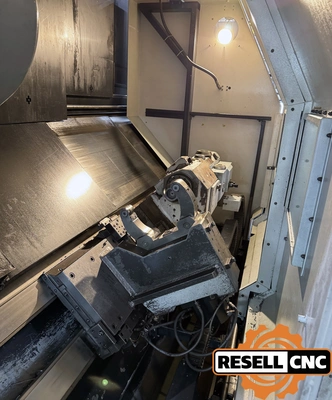

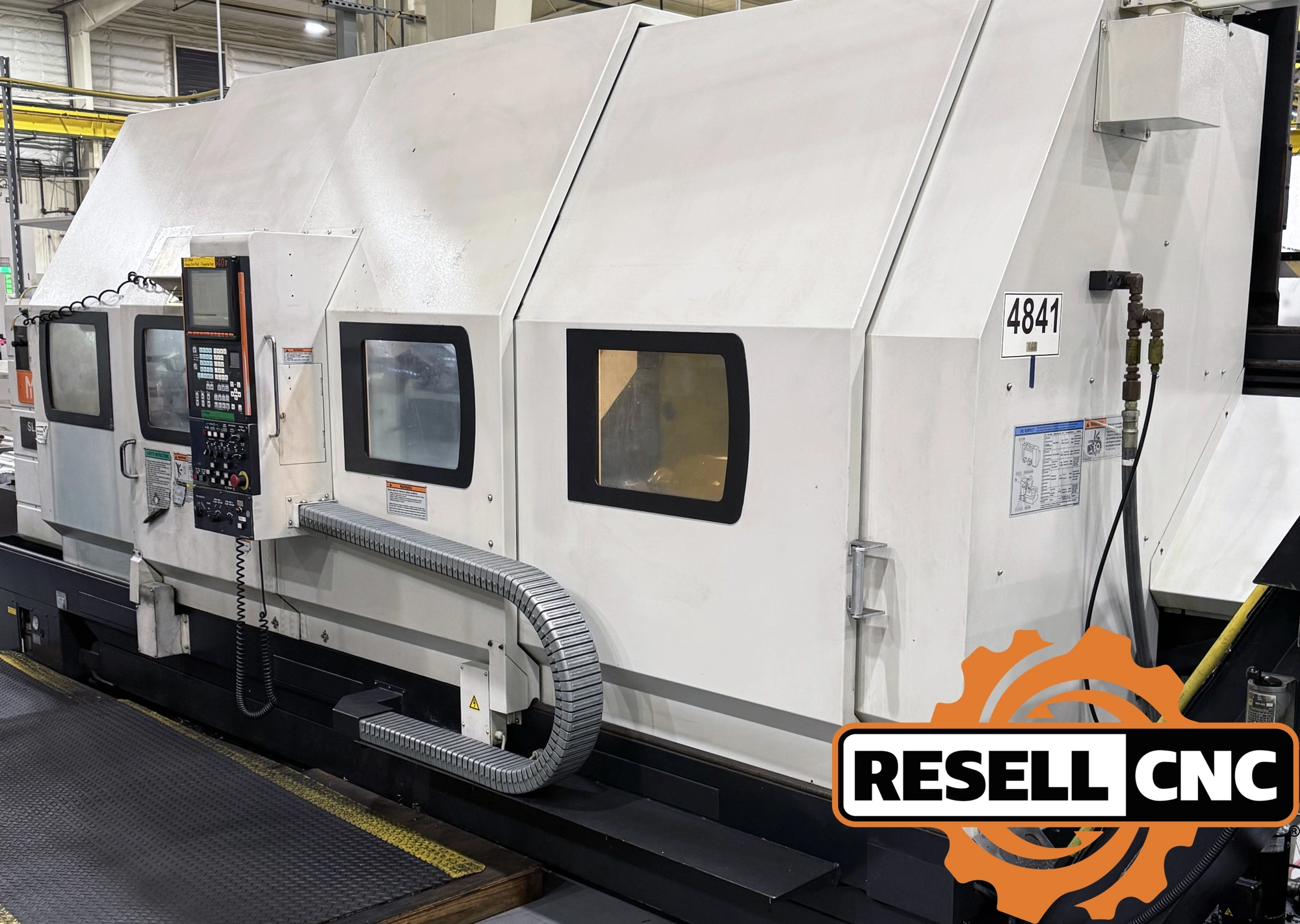

USED 2006 Mazak Slant Turn 50N

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false

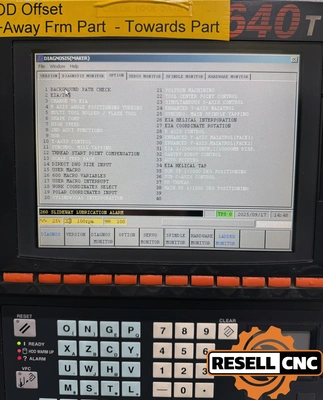

Additional Control Options: Thread Start Point Compensation

Direct DWG Size Input

600 Macro Variables

User Macro Interrupt

Work Coordinates Select

Polar Coordinates Input

EIA Helical Tap

Background Path Check

Additional Machine Specs: Work Holding Type: Scroll Chuck

Tooling Included: No

Bar Capacity: 3.5
B Axis: false
C Axis: false
Chip Removal: Chip Conveyor

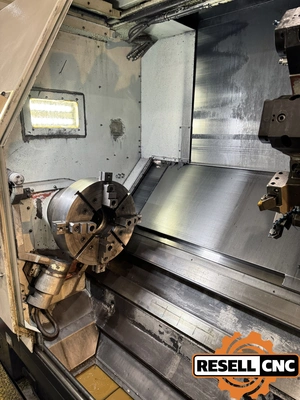

Chuck Description: 4-Jaw Chuck

Chuck Size: 21.0
Chuck Type: Manual

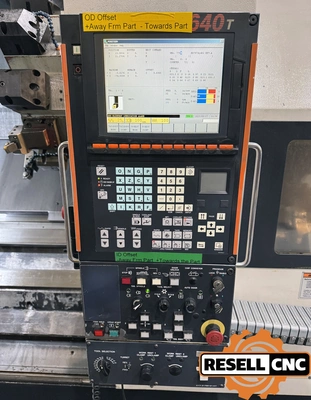

Control Make Model: Mazatrol 640T CNC Control
Control Options: Coordinate Rotation and Scaling, Helical Interpolation, Macros, EIA/ISO Code Input Function
Distance Between Centers: 120.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Cutting Turning Diameter: 28.0
Max Swing Over Bed: 31.7
Max Swing Over Saddle: 22.0
Programmable Tailstock: false
Rapid Traverse: 473/552
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 4.0
Spindle Motor: 50
Spindle Speed: 750.0
Steadyrest Capacity: 9.6
Steadyrest Type: Hydraulic
Sub Spindle: false
Tailstock: true

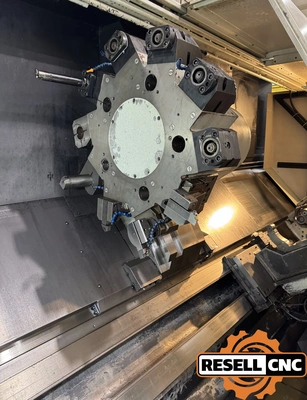

Tool Positions: 15.0
Twin Turret: false
X Travel: 22.6
Y Axis: false
Z Travel: 120.0
