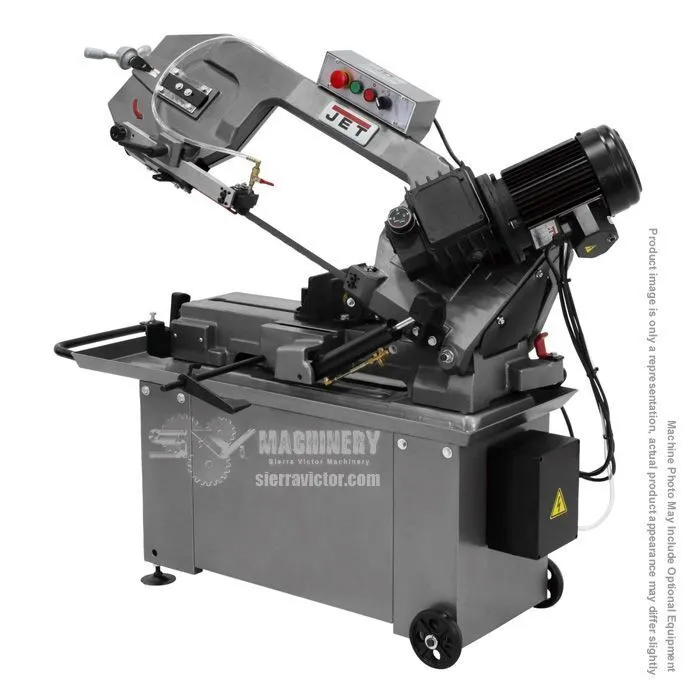

The JET HBS-814GH was engineered with the operator in mind. An easy access control panel and heavy-duty geared head transmission for quick speed change means productivity never slows. Like every JET machine we manufacture, professionals know they can rely on this saw when the project is on the line.
| Cutting Capacity | 8 x 14 in. (W x D) | 8 x 14 in. (W x D) |
| Round at 90° | 8 in. | 8 in. |
| Round at 45° | 6.5 in. | 6.5 in. |
| Rectangle at 90° | 14 x 8 / 2 x 14 in. | 14 x 8 / 2 x 14 in. |
| Rectangle at 45° | 6-1/2 (H) x 6 (W) and 2 (H) x 7 (W) in. | 6-1/2 (H) x 6 (W) and 2 (H) x 7 (W) in. |
| Blade Size | 3/4 x .035 x 97 in. | 3/4 x .035 x 97 in. |
| Blade Wheel Diameter | 12" | 304.8 mm |
| Blade Speed | 135, 197, 256 sfpm | 135, 197, 256 sfpm |
| Motor | 1 HP | 1 HP |
| Power | 230v, 1-Phase | 230v, 1-Phase |
| Bed Height | 26" | 660.4 mm |
| Throat Depth | 8" | 203.2 mm |
| Vise Swivels | 45° | 45° |
| Dimensions | 51-1/2 x 18-1/8 x 44 in. | 51-1/2 x 18-1/8 x 44 in. |
| Weight | 287 lbs. | 287 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR – Limited
