This JET large capacity , semi-automatic horizontal bandsaw is loaded with features that allow the operator the ability to fine tune the blade speed easily and quickly on a convenient swing away control panel. The sturdy head raises automatic while the mitering head allows the user to cut up to a 45° angle.
| Round at 90° | 11.813" | 300.04 mm |
| Rectangle at 90° | 16-1/2 x 11-13/16; 18-1/8 x 8-5/8; 19-1/4 x 4 in. | 16-1/2 x 11-13/16; 18-1/8 x 8-5/8; 19-1/4 x 4 in. |
| Round at 45° | 11.219" | 284.96 mm |
| Rectangle at 45° | 12-9/16 x 11-7/32 in. | 12-9/16 x 11-7/32 in. |
| Blade Size | 1 x 0.037 x 156 in. | 1 x 0.037 x 156 in. |
| Blade Wheel Diameter | 17.1" | 434.34 mm |
| Blade Speed | VARIABLE, 90-370 sfpm | VARIABLE, 90-370 sfpm |
| Blade Motor | 3 HP | 3 HP |
| Power | 460v, 3-Phase | 460v, 3-Phase |
| Head Movement | 45° | 45° |
| Bed/Table Height | 27.5" | 698.5 mm |
| Vise Opening | 19.625" | 498.47 mm |
| Dimensions | 87 x 31.5 x 53 in. | 87 x 31.5 x 53 in. |
| Weight | 1,606 lbs. | 1,606 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR – Limited

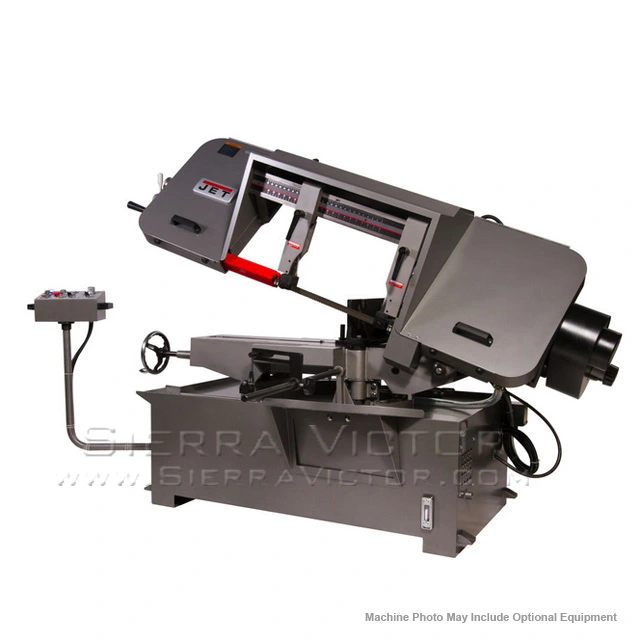

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
