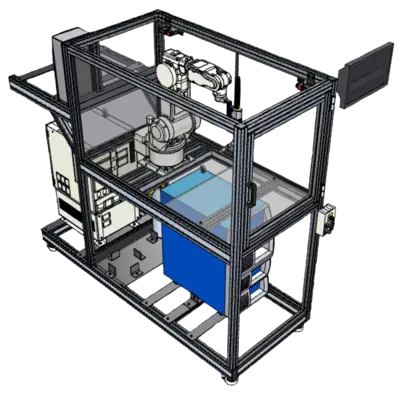

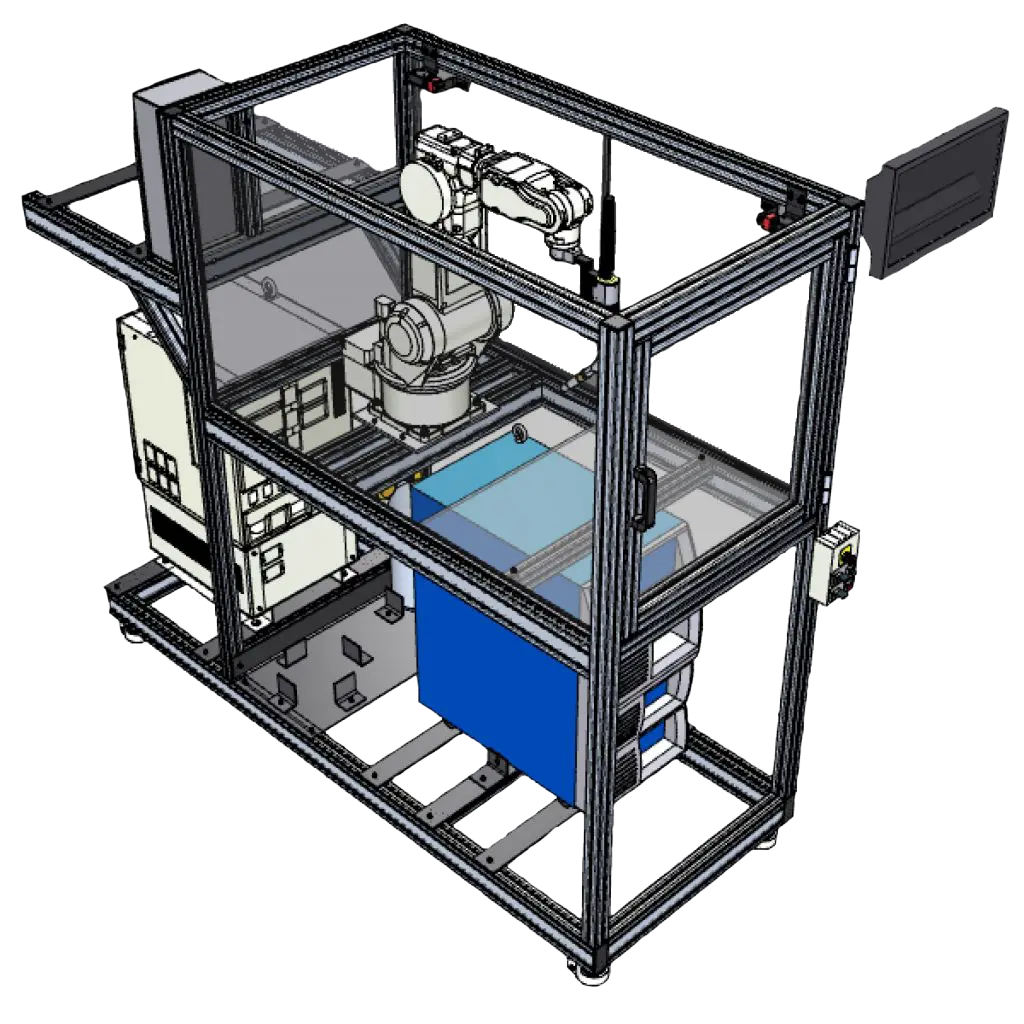

The OTC ED-ARC 100 is a completely mobile, fully enclosed and safe interlocked arc welding training station. The OTC ED-ARC 100 features a stationary table design to allow robotic weld training on small parts with an FD-H5 robot manipulator. Featuring a lightweight aluminum frame and polycarbonate arc flash enclosure, the OTC ED-ARC 100 allows all the capabilities of the welding environment to be brought to the classroom for instructional teaching.
Product Details
Ideal for small parts that fit in the 24” x 28.3” workspace and can quickly be converted to robotic welding
Mobile, fully enclosed arc welding training station with compact robot manipulator (FD-H5)
Lightweight aluminum frame and polycarbonate arc flash enclosure
Flat tabletop surface with 610mm x 720mm work area
Leveling casters for stable installation/easy movement when needed
Front-load access door with tinted window and safety interlock
Side access door with tinted window for load/maintenance and safety interlock
Tinted panels provide better light in work area for training visibility and operator safety
Shelf mounted welding power source
Standard Display Monitor
Maximum payload: 250kg
Height of work area: 1177mm
Weight: approx. 550kg
Width: 820mm (32.3”)
Height: 2014mm (79.3”)
Depth: 2320 (91.3”)
