OTC TRI-ARC 1000

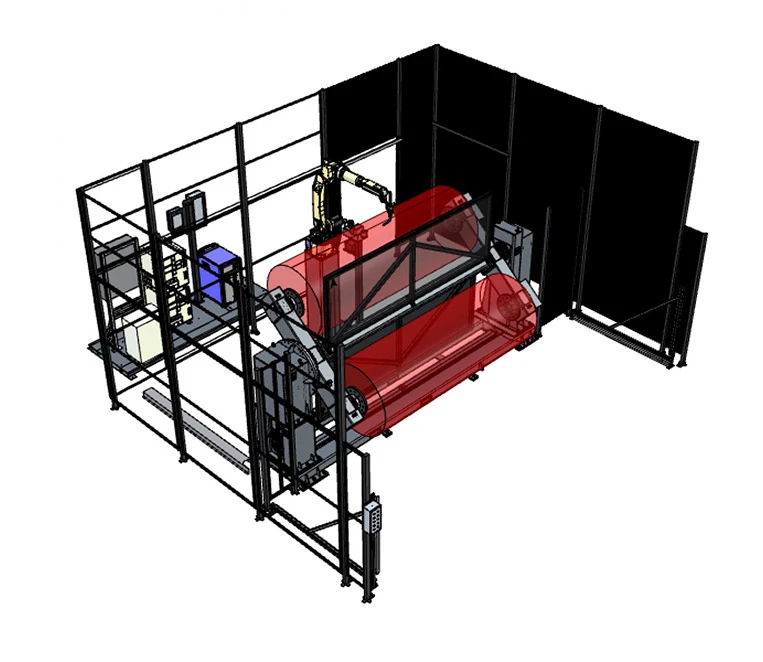

The OTC TRI-ARC 1000 is a three-axis, servo-controlled positioning cell offering dual head and tailstock positioning stations and a primary rotational axis to present each station to the robot. The heavy-duty design accommodates large components up to 3500mm in length and requires less floor space. Ideal for speed junkies whose production demands welding robot(s) mass-produce weldments at the fastest possible TAKT times. Any parts compatible with the DT-ARC or ROTA-ARC series would experience a production boost with the TRI-ARC welding robot cell.
Product Details
Ideal for mass producing weldments at the fastest possible TAKT times
Heavy-duty design to accommodate large components up to 3500mm in length
Requires less floor space while allowing single load and unload points for minimal operator movement during operation
3-axis Ferris wheel positioner with (2) headstock/tailstock stations
2-3 arc welding robots
Robot manipulator
Integrated Welbee II advanced welding power source with wire feeder and torch
Advanced robot controller
Teach pendant
Floor-mounted safety fencing w/ arc flash curtains
Utility trailer
Find additional options in the Resources tab
Work Capacity: 1000 kg/side
Standard HS/TS span: 2000mm
Index Speed: 5 seconds
HS/TS swing diameter: 1050mm
Weight: approx. 5500kg
Width: 5618mm (221.2”)
Height: 3460mm (136.2”)
Depth: 6437mm (253.4”)
