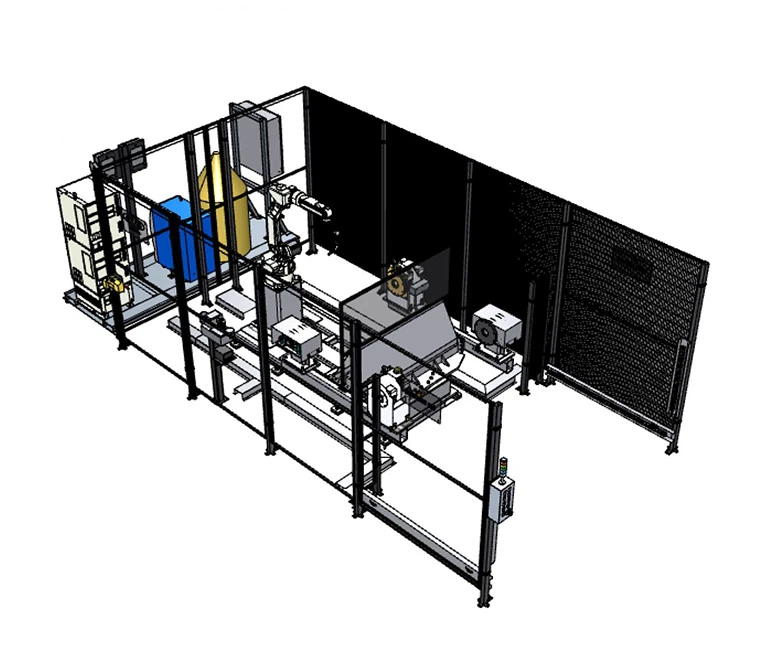

OTC ROTA-ARC 250

The ROTA-ARC 250 supports a payload of 250kg per side with a 1500mm span on each headstock/tailstock combo. Like others in the ROTA-ARC series, it incorporates a compact design ideal for complex parts in small spaces. It is effective at reducing cycle times and overhead costs with a 6 sec. average index time and smaller footprint. The ROTA-ARC 250 supports configurations of 1 or 2 arc-welding robots.
Product Details
Supports a payload of 250kg per side with a 1500mm span on each headstock/tailstock comb
3-axis rotary positioner with (2) headstock/tailstock stations
1 or 2 arc welding robots
Robot manipulator
Integrated Welbee II advanced welding power source with wire feeder and torch
Advanced robot controller
Teach pendant
Standard forklift pockets in base
Floor-mounted safety fencing w/ arc flash curtains
Utility trailer
Find additional options in the Resources tab
Work Capacity: 250 kg/side
Standard HS/TS span: 1500mm
Index Speed: 5 seconds
HS/TS swing diameter: 1000mm
Weight: approx. 4000kg
Width: 3336 mm (131.3”)
Height: 2200mm (86.6”)
Depth: 6411mm (252.4”)
