OTC SERVO-ARC 600B

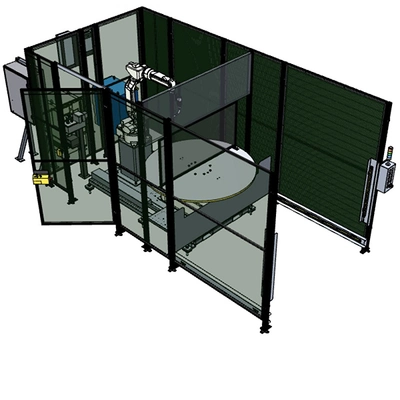

The SERVO-ARC 600B (basic) provides cost savings with a smaller base and floor mounted safety fencing. The SERVO-ARC 600 is designed for small and medium-size parts with minimal operator movement required. The operator can prepare the work on side A while the robot is welding on side B.
Product Details
Best suited for production runs of small- to medium-sized parts
60” servo-driven indexing table
1 arc welding robot
Integrated Welbee II advanced welding power source with wire feeder and torch
Advanced robot controller
Teach pendant
Standard forklift pockets
Rack and pinion design
Find additional options in the Resources tab
Index speed (180°) – 4.2 Seconds
Work capacity – 250kg/side
Weight – approx. 2000kg
Width: 2263mm (89.1”)
Height: 2200mm (86.6”)
Depth: 5406mm (212.8”)
