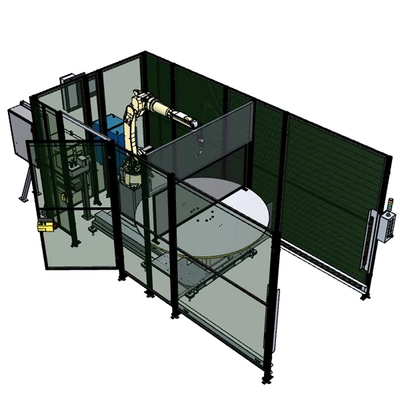

With a smaller base and floor-mounted safety fencing, the SERVO-ARC 720B (basic) provides cost savings. The servo-controlled turntable positioning cell is the unitized base option designed for medium- and large-sized parts with minimal operator movement required. The operator can prepare the work on side A while the robot is welding on side B. The robot, turntable and guarding are all mounted to a common base along with the robot controller and welding power supply, making the unit easy to reposition within your facility.
Product Details
Best suited for production runs of medium- and large-sized parts
72” servo-driven indexing table
Smaller base and floor-mounted safety fencing
1 arc welding robot
Robot manipulator in either standard or long-reach arm
Integrated Welbee II advanced welding power source with wire feeder and torch
Advanced robot controller
Teach pendant
Standard forklift pockets
Rack and pinion design
Find additional options in the Resources tab
Index Speed (180°) – 4.2 seconds
Work capacity – 250kg/side
Weight – approx. 3200kg
Width: 2187mm (86.1”)
Height: 2200mm (86.6”)
Depth: 4564mm (179.7”)
