OTC DT-ARC 500

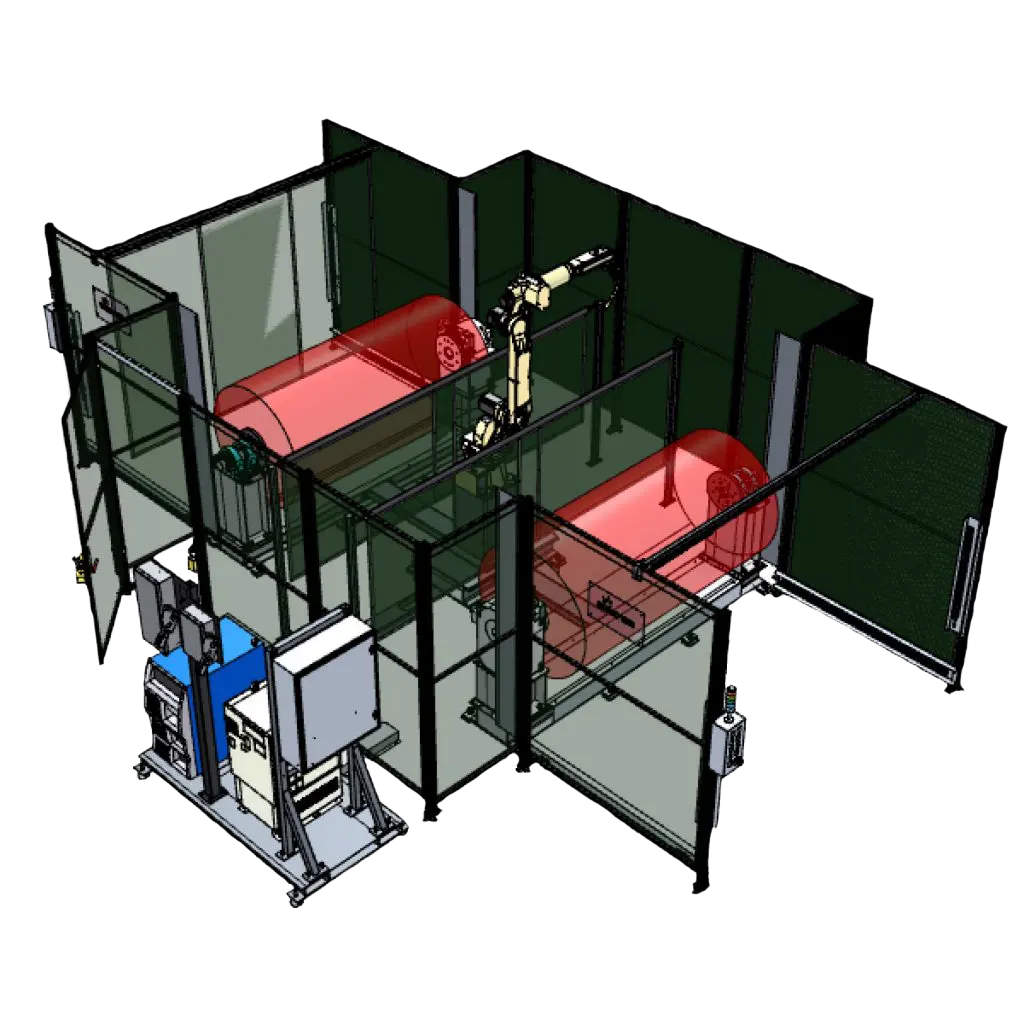

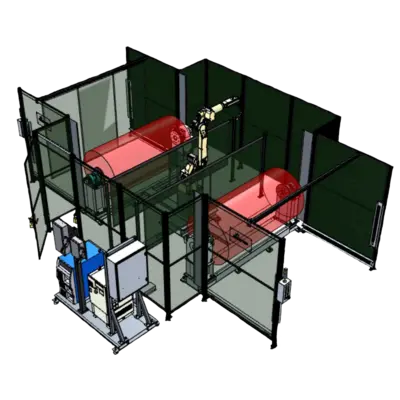

The DT-ARC 500 is a dual, servo-controlled head and tailstock-positioning cell, designed for medium and large parts. The two-station configuration allows the operator to prepare work on station one while the robot welds on station two. It is a flexible design to allow for 180-degree and 120-degree station orientations. The open station load design allows for crane access with heavier payloads.
Product Details
Ideal for medium and large parts
Flexible design to allow for 180-degree and 120-degree station orientations
Open station load design allows for crane access with heavier payloads
Dual A2PB-500 headstock positioners
1 arc welding robot
Robot manipulator in either standard or long-reach arm
Integrated Welbee II advanced welding power source with wire feeder and torch
Advanced robot controller
Teach pendant
Manual arc flash safety curtain at individual operator stations
Common base for HS/TS assembly
Zone ring for station designation
Access door on LH side
Arc flash curtain for cross station protection
Floor-mounted safety fencing with arc flash curtains
Work Capacity – 500kg/side
Standard HS/TS span: 2000mm
Maximum span: 3100mm
HS/TS swing diameter: 1000mm
Weight: Approx. 3000kg
Width: 5556mm (218.7”)
Height: 2200mm (86.6”)
Depth: 7055mm (277.8”)
