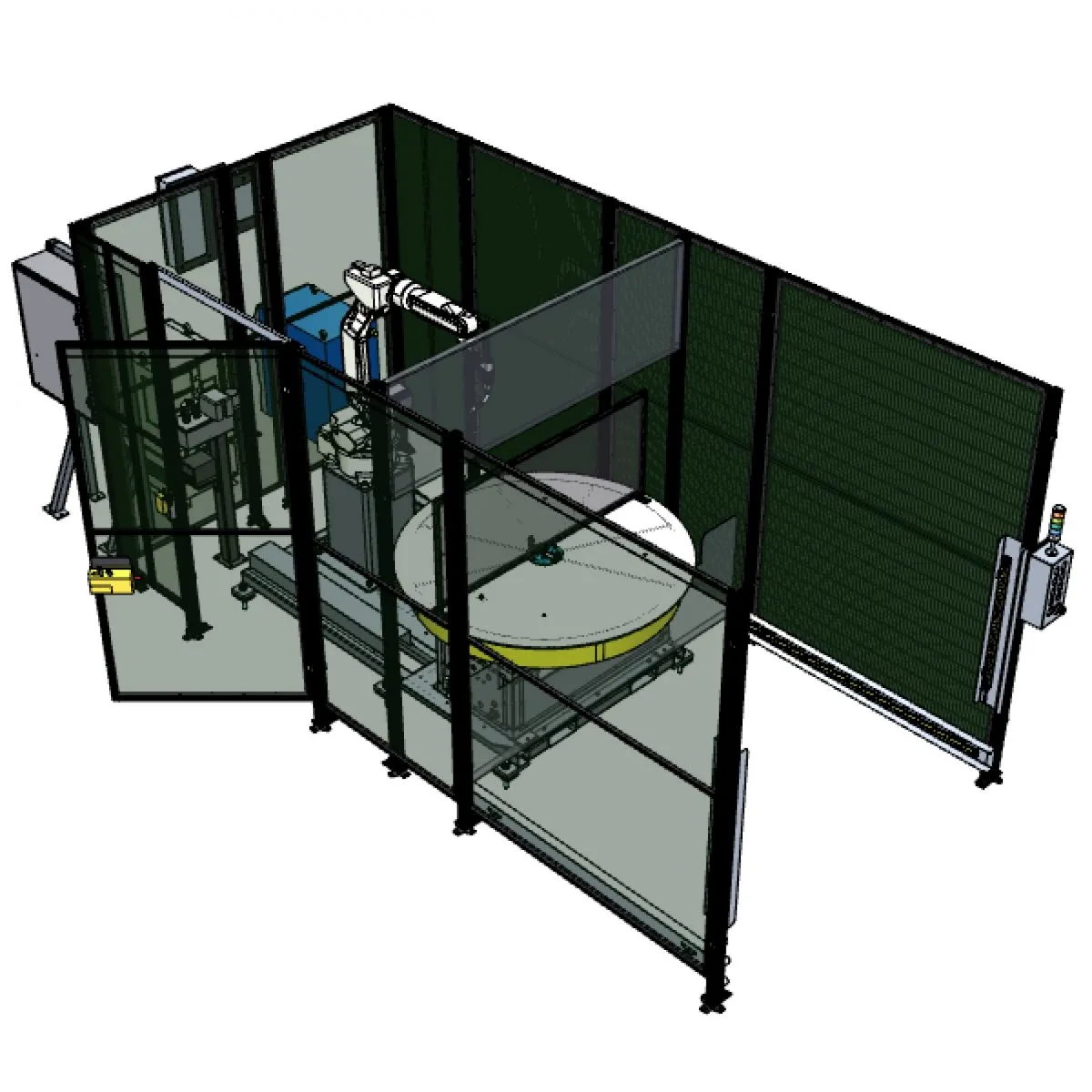

OTC PT-ARC 600B

The PT-ARC 600B (basic) provides a smaller base and floor-mounted safety fencing. This pneumatic turntable cell is designed for small- and medium-sized parts with minimal operator movement required. The operator can prepare the work on side A while the robot is welding on side B. Ideal for small to medium-sized parts.
Product Details
Best suited for production runs of small- to medium-sized parts
60” pneumatic indexing table
Floor-mounted safety fencing with arc flash curtains
1 arc welding robot
Integrated Welbee II advanced welding power source with wire feeder and torch
Advanced robot controller
Teach pendant
Standard forklift pockets
Rack and pinion design
Find additional options in the Resources tab
Index Speed (180°) – 4.2 seconds
Work Capacity – 250kg/side
Weight – Approx. 2000kg
Width: 2263mm (89.1”)
Height: 2200mm (86.6”)
Depth: 5406mm (212.8”)
