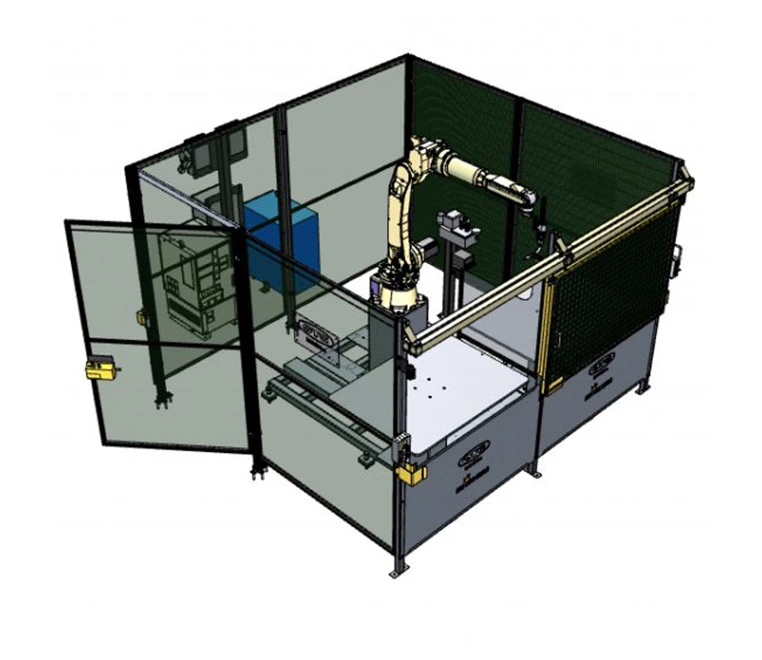

OTC ECO-ARC 200LB Robotic Welding Cell

The OTC ECO-ARC 200LB (large, basic) provides a larger work envelope with a long arm robot manipulator and two larger tabletops. Like others in the 200 series, it is economically designed with stationary tables for durability and quick cycle times. The OTC ECO-ARC 200LB is best suited for production runs of medium to high volume, with little or no part positioning. A simple, compact design allows for quick teach times and part access.
Product Details
Larger work envelope with long arm robot manipulator and two larger tabletops
Best suited for production runs of medium to high volume, with little or no part positioning
2 stationary tables with long reach robot manipulator FD-V8L (S2)
1 arc welding robot
Integrated Welbee II advanced welding power source with wire feeder and torch
Advanced robot controller
Teach pendant
Smaller base with floor-mounted safety fencing and arc flash curtains
Manually sliding operator load doors
Steel tubular frame assembly
Zone Ring for station designation
Standard forklift pockets in base for easy movement
Steel wall station divider
Find options for the cell, headstock and more in the Resources tab
Tabletop Dimensions: 1220mm x 915mm
Weight: Approx. 2000kg
Width: 3294mm (129.7”)
Height: 2200mm (86.6”)
Depth: 3915mm (154.1”)
