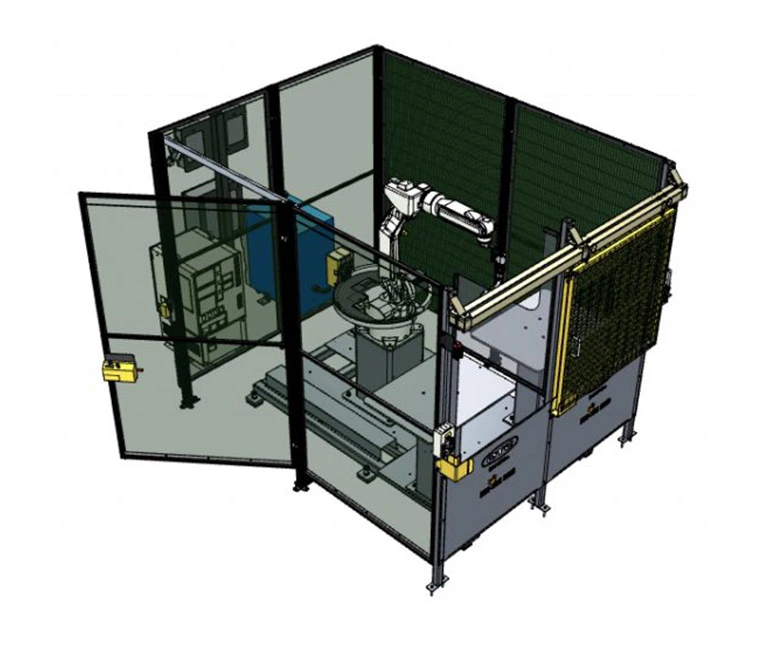

OTC ECO-ARC 200B Robotic Welding Cell

The OTC ECO-ARC 200B (basic) provides cost savings with a smaller base, floor-mounted safety fencing and manually sliding and interlocking station doors. Like others in the 200 series, it is economically designed with stationary tables for durability and quick cycle times. It is best suited for production runs of medium to high volume, with little or no part positioning. A simple, compact design allows for quick teach times and part access.
Product Details
Smaller base with floor-mounted safety fencing and arc flash curtains
Best suited for production runs of medium to high volume, with little or no part positioning
2 stationary tables with standard robot manipulator (FD-V8)
1 arc welding robot
Integrated Welbee II advanced welding power source with wire feeder and torch
Advanced robot controller
Teach pendant
Manually sliding operator load doors
Steel tubular frame assembly
Zone Ring for station designation
Standard forklift pockets in base for easy movement
Steel wall station divider
Find options for the cell, headstock, tilt/turn and more in the Resources tab
Tabletop Dimensions: 800mm x 600mm
Weight: Approx. 1500kg
Width: 2140mm (84.2”)
Height: 2200mm (86.6”)
Depth: 3575mm (140.7”)
