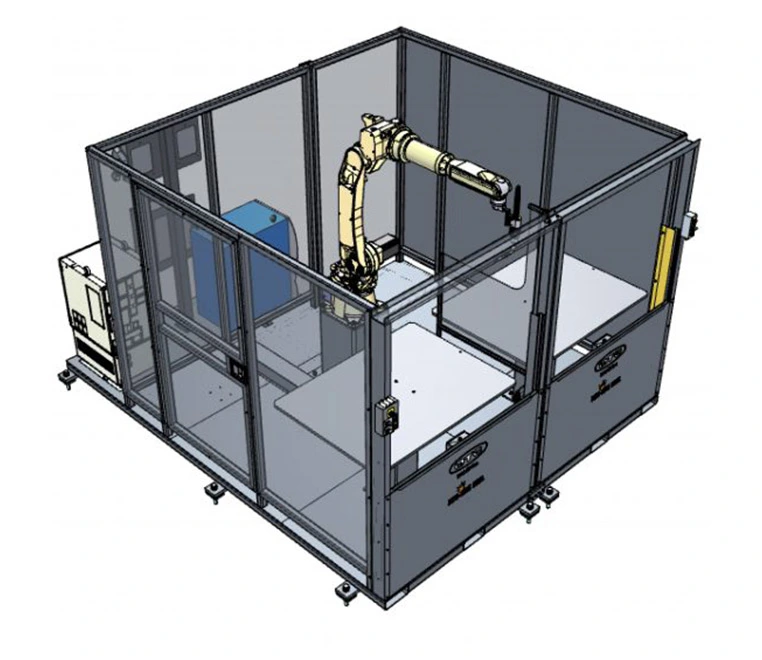

OTC ECO-ARC 200L Robotic Welding Cell

Weighing in at approximately 3500 kg, the OTC ECO-ARC 200L (large) is a heavy-duty version of the 200LB. It provides a larger work envelope with a long arm robot manipulator and two larger tabletops. Like others in the 200 series, it is economically designed with stationary tables for durability and quick cycle times. It is best suited for production runs of medium to high volume, with little or no part positioning.
Product Details
Larger work envelope with long arm robot manipulator and two larger tabletops
Best suited for production runs of medium to high volume, with little or no part positioning
2 stationary tables with long reach robot manipulator FD-V8L (S2)
1 arc welding robot
Integrated Welbee II advanced welding power source with wire feeder and torch
Advanced robot controller
Teach pendant
Smaller base with floor-mounted safety fencing and arc flash curtains
Manually sliding operator load doors
Steel tubular frame assembly
Zone Ring for station designation
Standard forklift pockets in base for easy movement
Steel wall station divider
Find options for the cell, headstock, tilt/turn and more in the Resources tab
Tabletop Dimensions: 1220mm x 915mm
Weight: Approx. 3500kg
Width: 2960mm (116.5”)
Height: 2200mm (86.6”)
Depth: 3440mm (135.4”)
