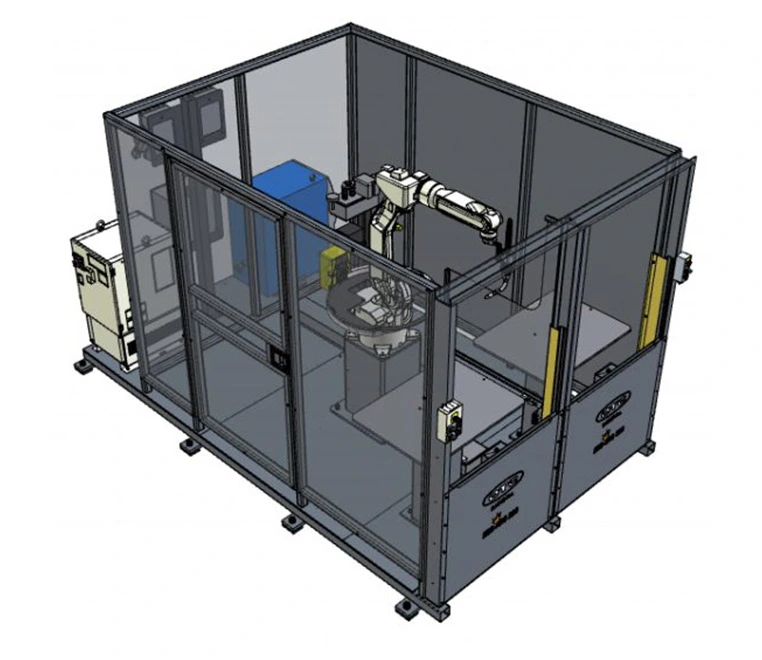

OTC ECO-ARC 200 Robotic Welding Cell

The OTC DAIHEN ECO-ARC 200 is economically designed with stationary tables for durability and quick cycle times. The 200 is best suited for production runs of medium to high volume, with little or no part positioning. A simple, compact design allows for quick teach times and part access. Includes standard pneumatic doors.
Product Details
Best suited for production runs of medium to high volume, with little or no part positioning
2 stationary tables with standard robot manipulator (FD-V8)
1 arc welding robot
Integrated Welbee II advanced welding power source with wire feeder and torch
Advanced robot controller
Teach pendant
Steel tubular frame assembly
Perimeter safety guarding
Pneumatic shutter doors
Zone Ring for station designation
Standard forklift pockets in base for easy movement
Steel wall station divider
Find options for the cell, part positioners, tilt/turn and more in the Resources tab
Tabletop Dimensions: 800mm x 600mm
Weight: Approx. 2000kg
Width: 2194mm (86.4”)
Height: 2158mm (85.0”)
Depth: 3430mm (135.0”)
