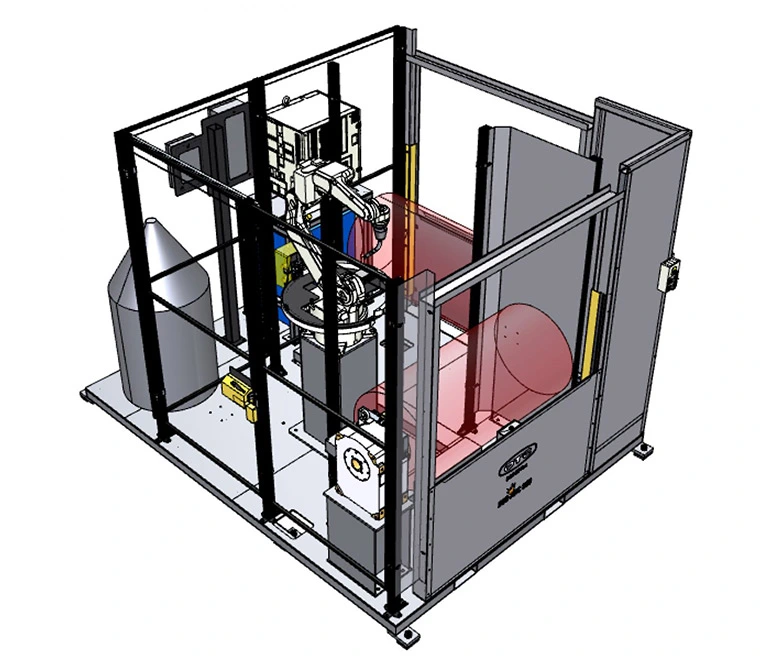

OTC ECO-ARC 290 Compact Robotic Welding Cell

The OTC DAIHEN ECO-ARC 290 compact production robotic welding cell is a dual servo-controlled, headstock parts positioning cell designed for small- to medium-sized parts. The ECO-ARC 290 includes one arc-welding robot and two servo-controlled headstocks (station 1 and station 2), all on a single base that is easy to move. At approximately 2,500 kg in weight, its footprint is small compared to most other advanced robotic welding cells.
Product Details
Ideal for small- to medium-sized parts, such as automotive parts
One arc-welding robot (standard reach)
FD 21 robotic controller
Robot manipulator
Teach pendant 8 meter
Integrated Welbee II advanced welding power source with wire feeder and torch
Two 250kg headstock positioners for uninterrupted production robot welding
Full perimeter safety guarding including OSHA-mandated arc-flash protection and safety interlocked access
Welding gas bottle mount with regulator/flow meter included
Unitized base with fork pockets for easy pickup and positioning around fabrication shop
Part length up to 48” and swing diameter up to 24”
Small footprint (7.7’W x 10.5’D)
Weight: Approx. 2500 kg
Maximum part diameter: 609 mm (24”)
Load centerline height: 962 mm (37.9”)
