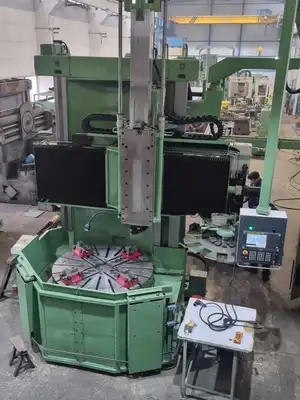

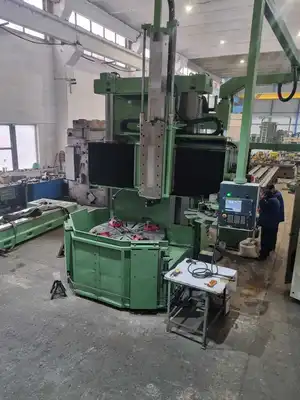

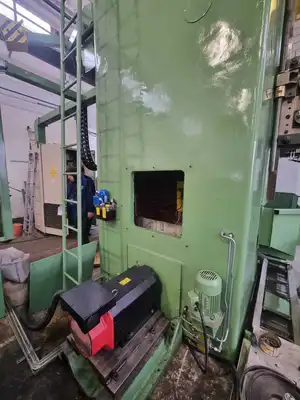

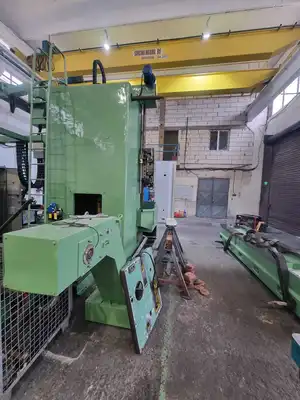

NEW 2025 REM SC Retrofit VTL SC17-1MS CNC
Overview
Description
2025 SC (formerly UMARO) Retrofit SC17-1MS CNC VTL, 57.1" Chuck, 66.9" Swing, Fanuc 0iF 12 Pos ATC
CNC Vertical Lathe SC17 – 1MS CNC (FANUC 0iF) — complete machine with standard accessories
Standard accessories included: 4-jaw chuck (4 pcs), foundation kit, special tools set, FANUC AC digital servo drives & motors (all axes), AC spindle motor, full control panel, ball screws & feed mechanism, hydraulic system, centralized automatic lubrication system, machine lighting
Container loading, export packing & securing (OOG / flat-rack as required)
Export documentation (EUR.1, packing list, commercial invoice, certificate of origin)
Spare parts kit — recommended first-year consumables
Specifications
| Table Dia | 57.1" | 1,450.3 mm |
|---|---|---|
| Swing | 66.9" | 1,699.3 mm |
| Work Ht-U/R | 68.9" | 1,750.1 mm |
| Power | 53.6 hp | 40 kW |
| RPM | 200 RPM | 200 RPM |
| Control | CNC (FANUC 0iF) | CNC (FANUC 0iF) |
| Dimensions | 177,2"L x 149.6" | 177,2"L x 149.6" |
| Weight | 48.502 | 48.502 |
Parameter Metric Imperial (US)
Table diameter 1,450 mm 57.1"
Max. swing diameter 1,700 mm 66.9"
Max. turning height (under crossrail) 1,750 mm 68.9"
Max. turning height (under toolholder) 1,550 mm 61.0"
Ram travel — Z axis 1,250 mm 49.2"
Ram cross-section 225 × 225 mm 8.9" × 8.9"
Tool holder shank 40 × 40 mm 1.57" × 1.57"
Feed rate (X & Z axes) 1 – 8,000 mm/min 0.04 – 315 ipm
Rapid traverse (X & Z axes) 8,000 mm/min 315 ipm
No. of gear steps 3 3
Table speed (infinitely variable) 2 – 200 rpm 2 – 200 rpm
Main motor power 40 kW 53.6 HP
Automatic tool change (turning tools) 12 positions 12 positions
Max. load on table 8,000 kg 17,637 lbs
Machine footprint 4,500 × 3,800 mm 14'-9" × 12'-6"
Net weight 22,000 kg 48,502 lbs
CNC control FANUC 0iF FANUC 0iF
Equipped With
Standard accessories included: 4-jaw chuck (4 pcs), foundation kit, special tools set, FANUC AC digital servo drives & motors (all axes), AC spindle motor, full control panel, ball screws & feed mechanism, hydraulic system, centralized automatic lubrication system, machine lighting
• 4-jaw clamping chuck — 4 pcs
• Foundation kit — 1 set
• Special tools & keys — 1 set
• FANUC AC digital servo motors & drives — all axes
• AC spindle motor 53.6 HP (40 kW)
• Full operator control panel
• CNC control system — FANUC 0iF
• Ball screws & precision feed mechanism
• Hydraulic system
• Centralized automatic lubrication system
• Machine working light
• Machine designed per ISO 230-1; painted RAL 6021
