| X Axis | 40.15" | 1,019.8 mm |
| Y Axis | 21.25" | 539.75 mm |
| Z Axis | 21.25" | 539.75 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 21.25" | 539.75 mm |
| Table-L | 44.09" | 1,119.9 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc Oi-MD Series CNC Control) | CNC (Fanuc Oi-MD Series CNC Control) |
| Dimensions | 116″ x 86″ x 106″ High | 116″ x 86″ x 106″ High |
| Weight | 14,330 lbs | 14,330 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

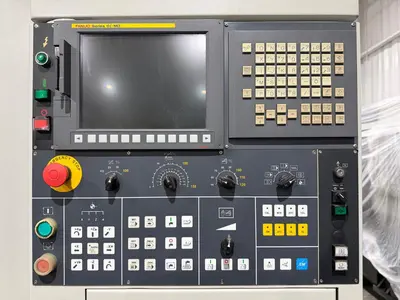

Fanuc Oi-MD Series CNC Control
PCMCIA Card Slot
Rigid Tapping

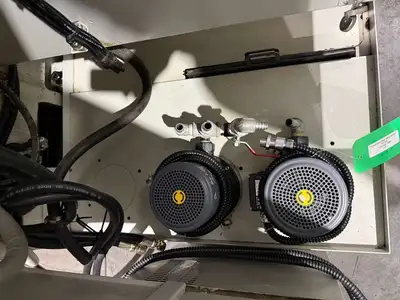

Coolant System
Table:
Length: 44.09″
Width: 21.25″
Number of Std T-Slots: 3
T-Slot Width: 0.7″X 3.93″
Max Weight on Table: 1543 lbs
Travels:
X-Axis: 40.15″
Y-Axis: 21.25″
Z-Axis: 21.25″
Rapid Traverse Rates X & Y Axis: 1692 IPM
Rapid Traverse Rates Z Axis: 1417 IPM
Cutting Feed Rates: 787 IPM
Spindle Nose to Table (Min.- Max.): 5.70″ – 26.96″
Spindle:
Taper Size: CAT-40
Speed Range: 10000 RPM
Spindle Power: 25 HP
Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 15.43 lbs
Max Tool Dia: 5.11″
Max Tool Length: 11.81″
Tool Changing Time (Chip to Chip): 1.6 Seconds
General:
Air Required: 80 psi, 4 scfm

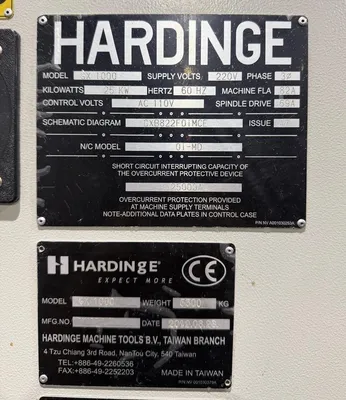

Power: 220v / 60 Hz / 3-Phase
Overall Dimensions: 116″ x 86″ x 106″ High
Weight: 14,330 lbs
4th Axis Wired
10000 RPM High Precision Spindle
30 Station Side Mounted Automatic Tool changer

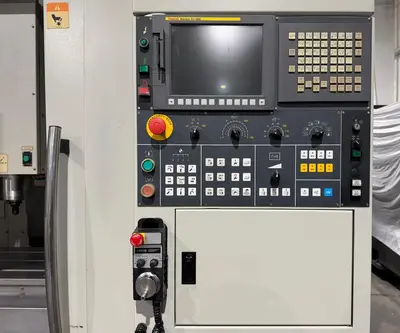

Hand Wheel MPG Control

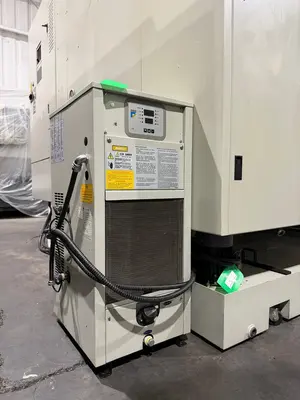

Spindle Chiller Unit
Books & Manuals
