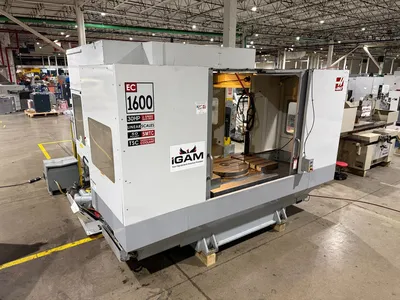

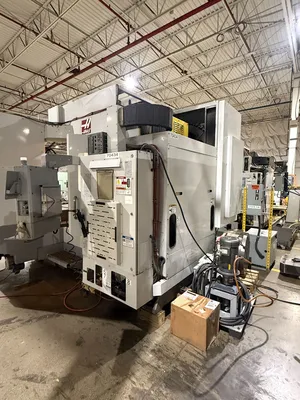

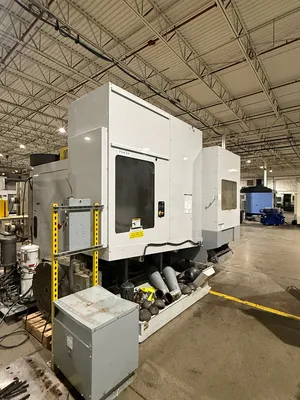

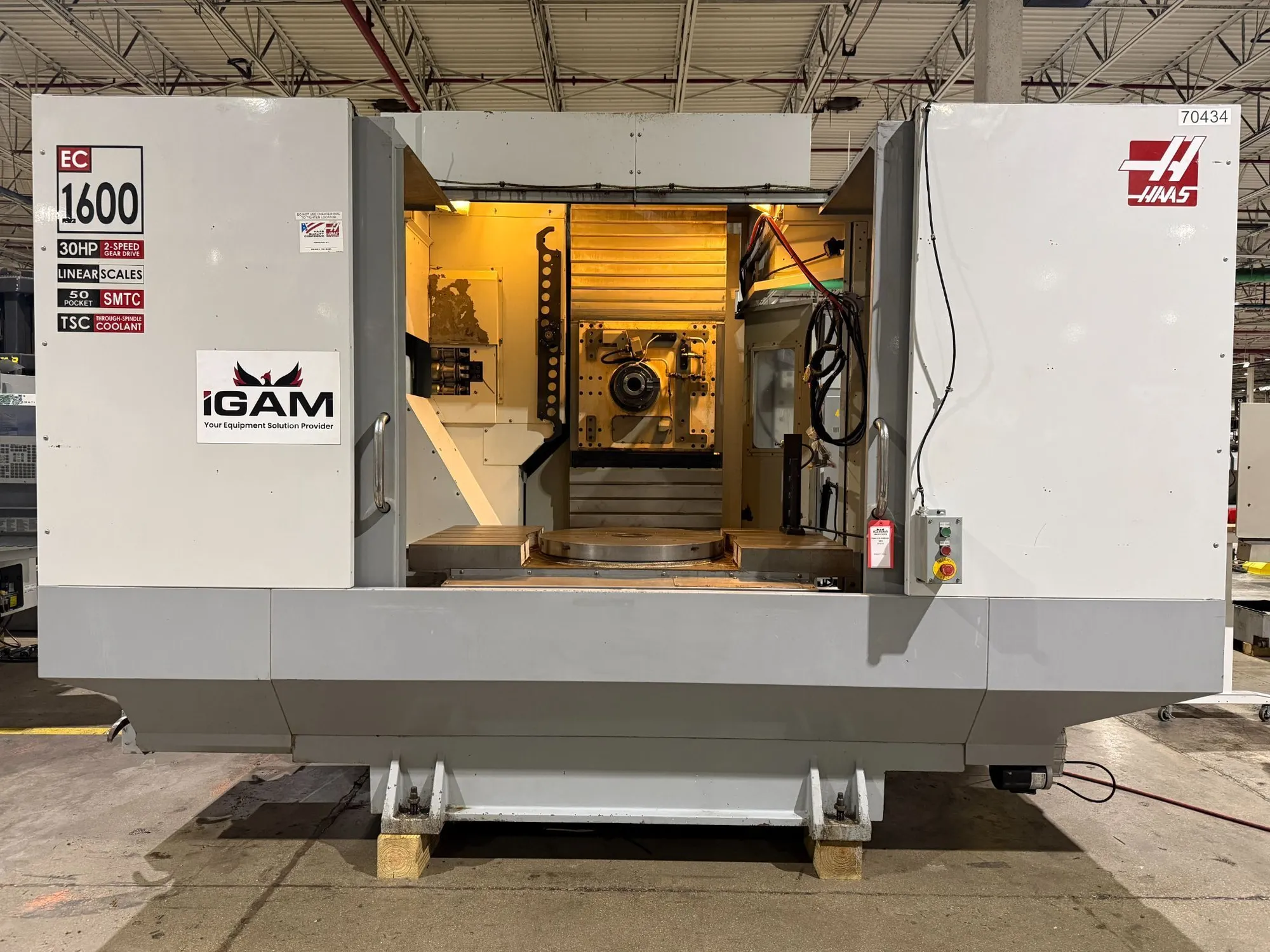

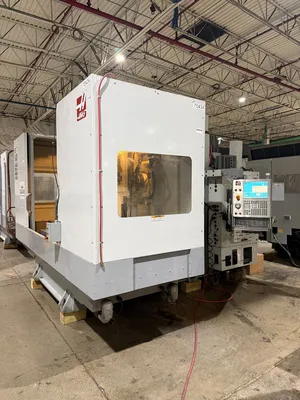

2006 Haas EX-1600-4X

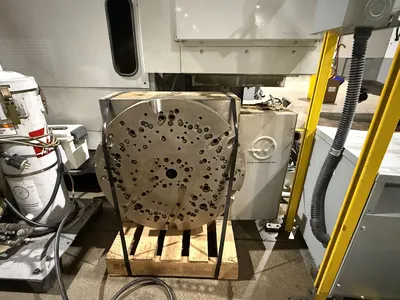

Removeable Rotary 5th Axis and Riser Block
Coolant through spindle

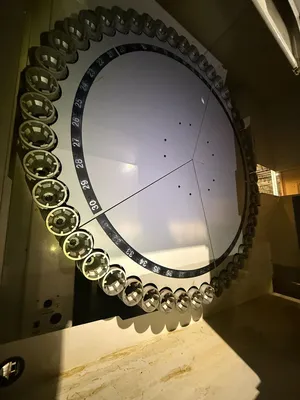

50 Pocket Tool Changer

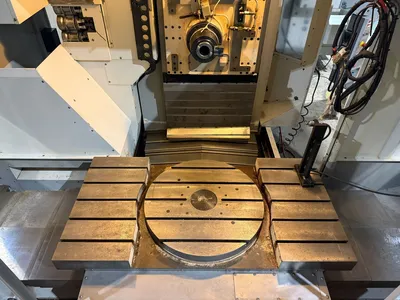

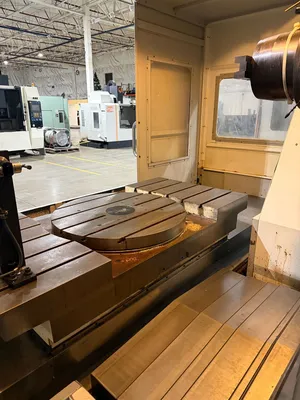

Build in 30" Rotary Table

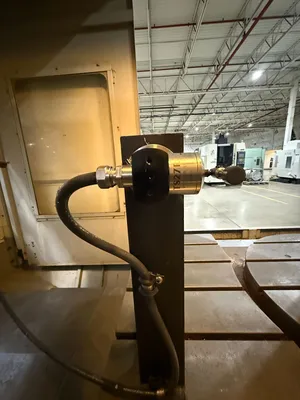

Renishaw Tool Probe mounted on Table
Geared Head
Linear Scales
Under Power for in person inspection
| # Axis | 5 | 5 |
| Pallet-L | 64" | 1,625.6 mm |
| Pallet-W | 36" | 914.4 mm |
| Max Pallet Load | 10,000 lbs | 10,000 lbs |
| Table Diameter | 30" | 762 mm |
| X-axis Travel | 64" | 1,625.6 mm |
| Y-axis Travel | 40" | 1,016 mm |
| Z-axis Travel | 32" | 812.8 mm |
| Rapid Traverse Rate (X/Y/Z) | 600 ipm | 600 ipm |
| Spindle Speed | 6,000 RPM | 6,000 RPM |
| Spindle Taper | Cat 50 | Cat 50 |
| Spindle Motor | 30 hp | 22.4 kW |
| # ATC | 40 | 40 |
| Coolant Thru Spindle | Yes | Yes |
| Machine Dimensions | 152" X 143" X 121.5" (On 6 x 6) | 152" X 143" X 121.5" (On 6 x 6) |
| Machine Weight | 33,500 lbs | 33,500 lbs |

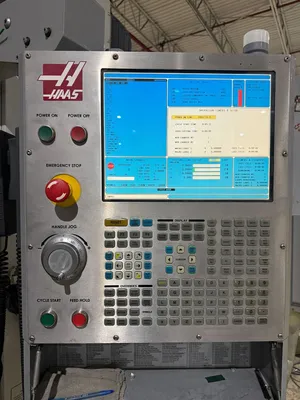

| Control | CNC (Haas) | CNC (Haas) |
| Weight | 33,500 lbs | 33,500 lbs |
