USED MILLIPORE MSP 006166

Manufacturer Information:

Brand: Millipore

Type: Ultra Filtration System

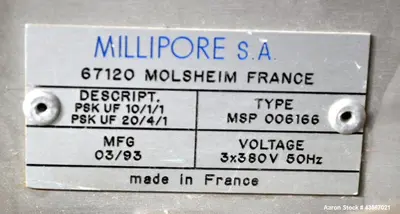

Model: MSP 006166

Description:

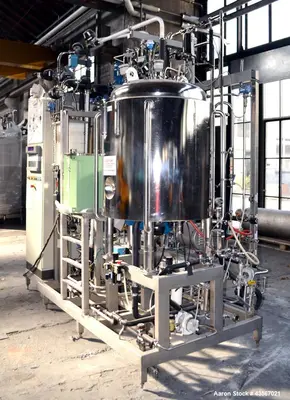

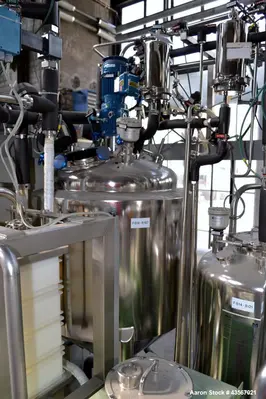

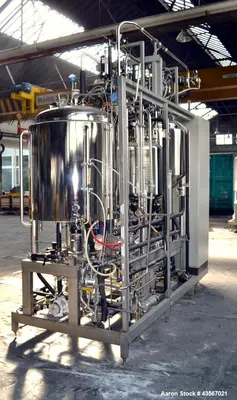

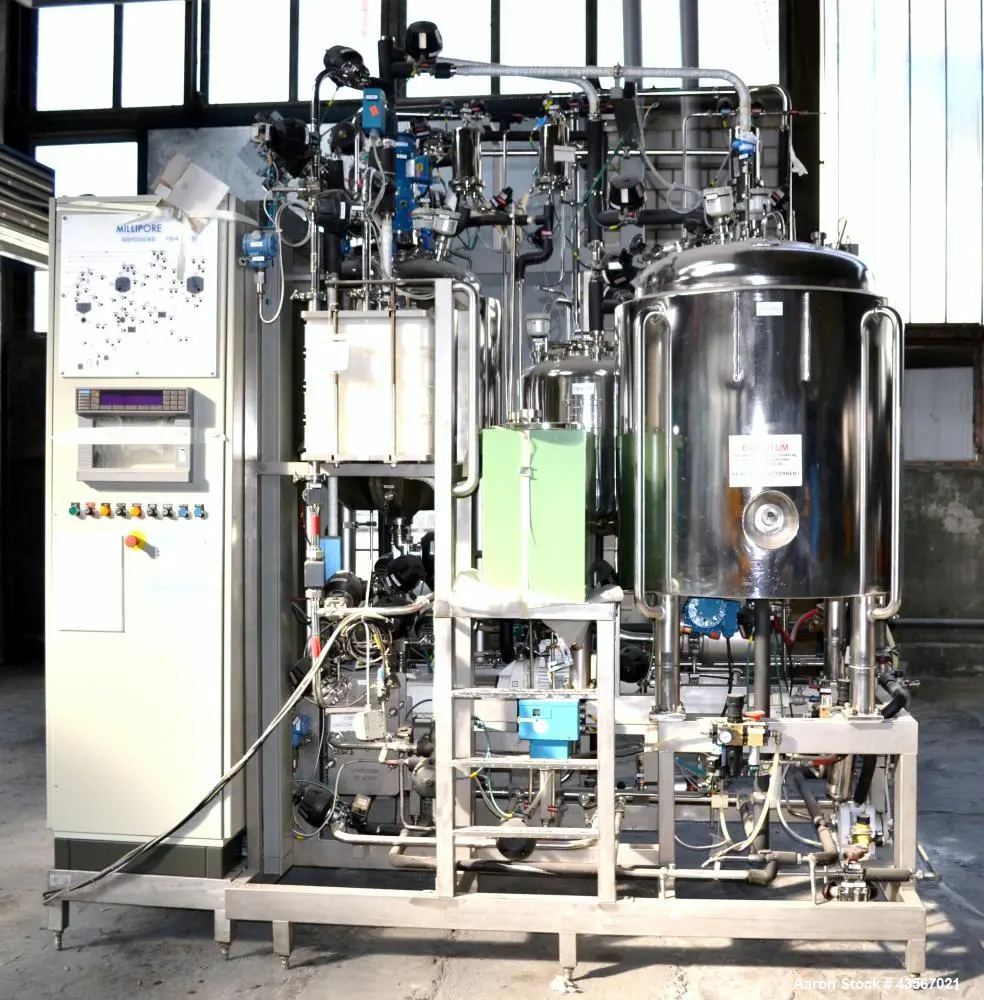

This used Millipore Type MSP 006166 Ultra Filtration System is a high-precision liquid filtration and separation unit, ideal for biotech, pharmaceutical, food, and chemical processing applications. Designed for efficient purification and concentration of process liquids, this system includes stainless steel reactors, a pressure tank, and integrated filtration components.

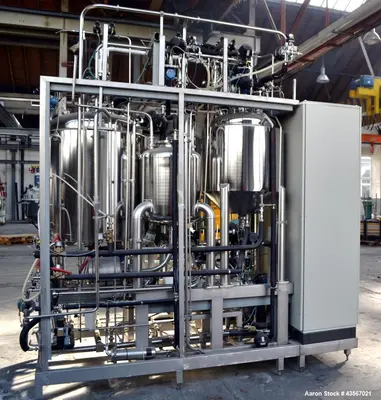

System Components:

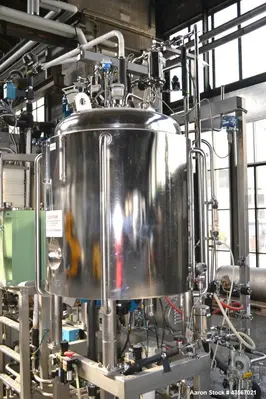

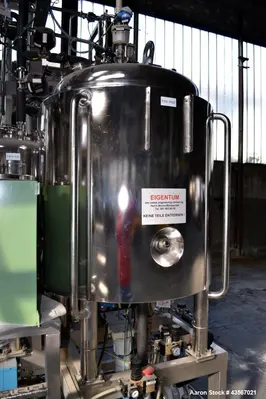

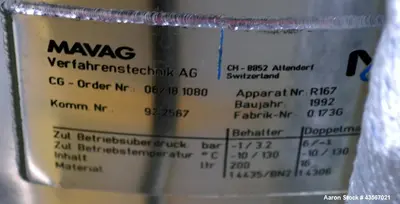

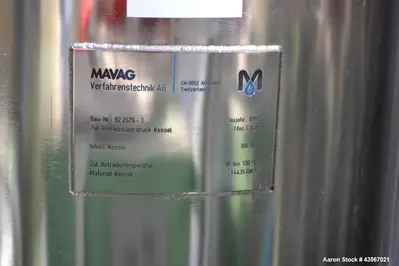

Mavag 200L (52.85 Gallon) 316L Stainless Steel Reactor

Internal Pressure Rating: -1 to 3.2 bar (-14.5 to 46.4 psi)

Temperature Range: -10 to 130°C (14 to 266°F)

Jacket Rating: 6/-1 bar (87/-14.5 psi)

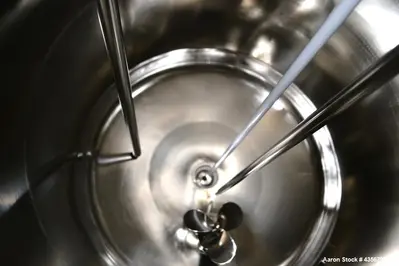

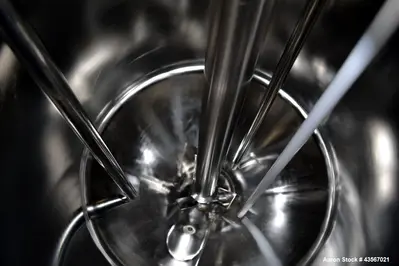

Top-Entering Agitator

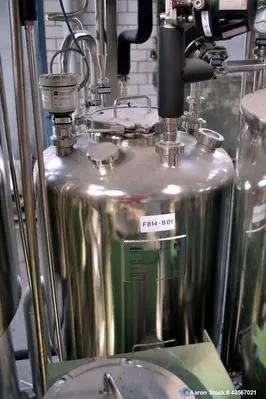

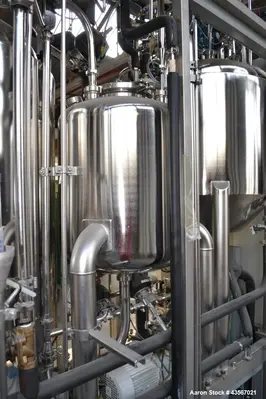

Mavag 100L (26.42 Gallon) 316L Stainless Steel Pressure Tank

Internal Pressure Rating: -1 to 3 bar (-14.5 to 43.5 psi)

Temperature Range: -10 to 130°C (14 to 266°F)

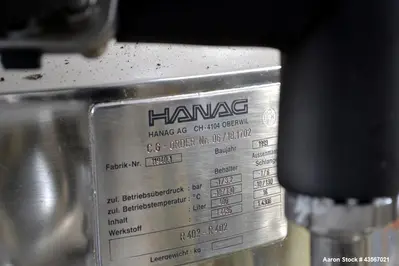

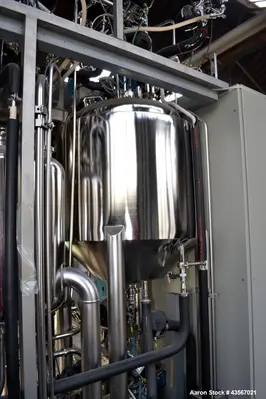

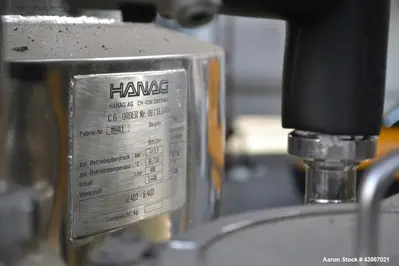

Hanag 400L (105.70 Gallon) 316L Stainless Steel Reactor

Internal Pressure Rating: -1 to 3.2 bar (-14.5 to 46.4 psi)

Temperature Range: -10 to 130°C (14 to 266°F)

Jacket Rating: 6/-1 bar (87/-14.5 psi)

Bottom-Entering Agitator

Filtration System:

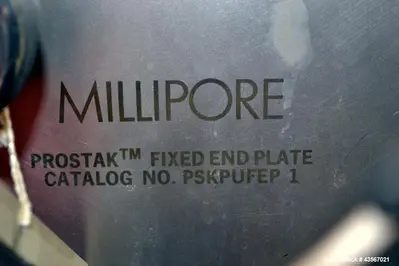

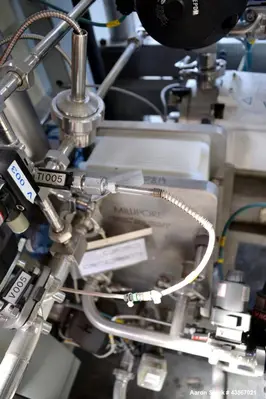

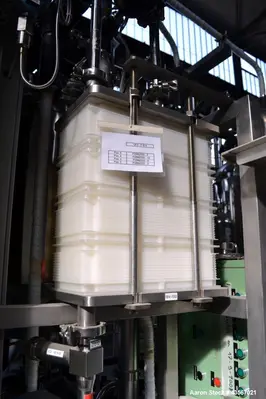

(2) Millipore Prostak Fixed End Plate Filters (Model PSKPUFEP-1)

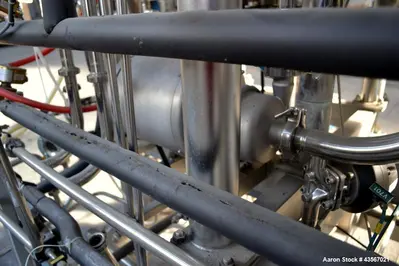

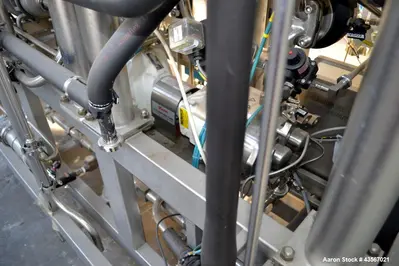

Pumping System:

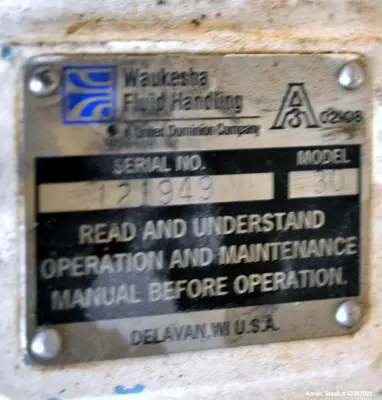

(1) Waukesha Model 30 Positive Displacement Pump
(1) Centrifugal Pump

Control System:

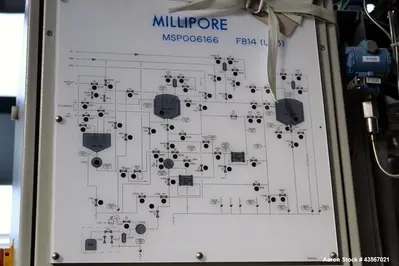

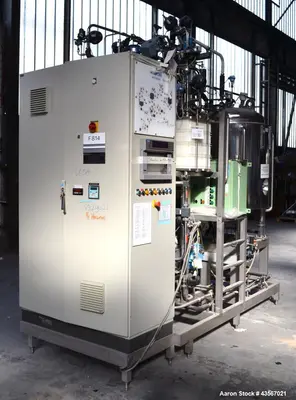

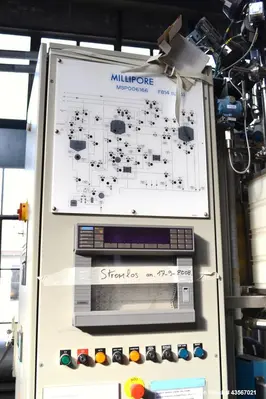

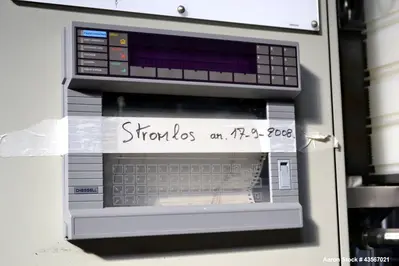

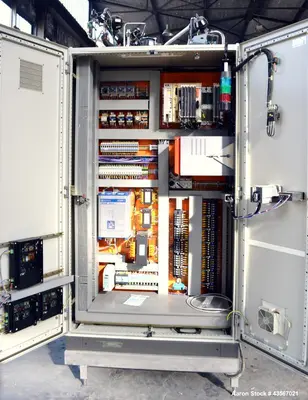

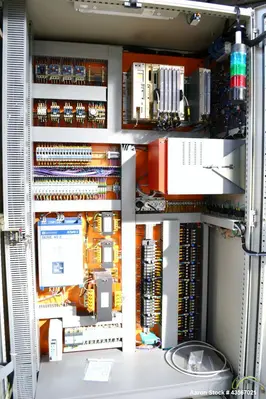

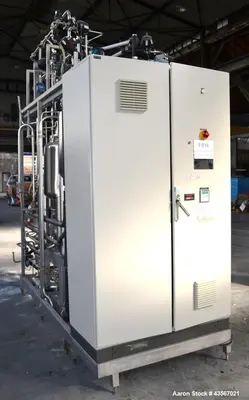

(1) Control Panel

Frame & Mobility:

Mounted on a Stainless Steel Frame

This system is ideal for high-purity filtration, liquid separation, and purification applications in pharmaceutical, biotech, food, and industrial processing.
Specifications:

System Type: Ultra Filtration System

Reactor Capacities: 200L & 400L (52.85 & 105.7 Gallons)

Pressure Tank Capacity: 100L (26.42 Gallons)

Material: 316L Stainless Steel

Pressure Ratings: -1 to 3.2 bar (-14.5 to 46.4 psi)

Jacket Ratings: 6/-1 bar (87/-14.5 psi)

Temperature Range: -10 to 130°C (14 to 266°F)

Filtration System: Millipore Prostak Fixed End Plate Filters

Pumps: Waukesha Positive Displacement Pump & Centrifugal Pump

Mounting: Stainless Steel Frame

Control System: Control Panel Included

Applications:

Pharmaceutical & Biotech – Separation and purification of APIs, biological solutions, and process liquids

Food & Beverage Processing – Filtration of dairy, juice, and liquid concentrates

Chemical & Industrial Processing – High-purity liquid separation and solvent recovery

Water Treatment & Filtration – Removal of impurities and contaminants

Cosmetic & Personal Care – Processing of emulsions, lotions, and high-viscosity liquids

What Products Would This Be Used For?

Ultrafiltration of pharmaceuticals and active ingredients
Clarification of food and beverage products
High-purity solvent and chemical filtration
Water purification for laboratory and industrial applications
Biotech and life sciences process filtration
