Used C.E. Howard 850 Gallon Stainless Steel Jacketed Tank – 304 SS, ASME Rated

Manufacturer Information:

Brand: C.E. Howard

Capacity: 850 Gallons

Material: 304 Stainless Steel

Jacket Type: Fully Jacketed with Dimpled Jackets (Straight Side & Bottom Head)

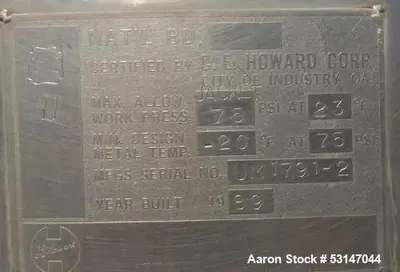

ASME Rating: 75 PSI

Description:

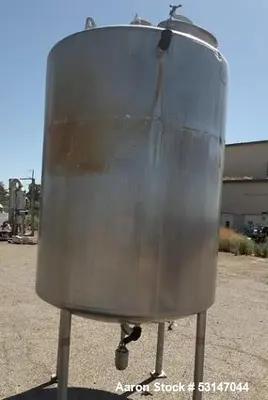

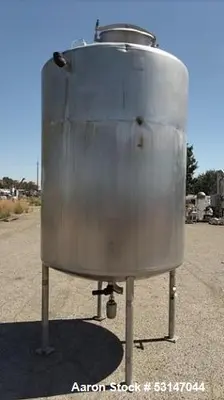

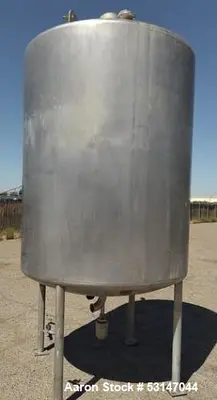

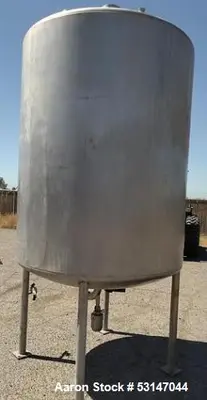

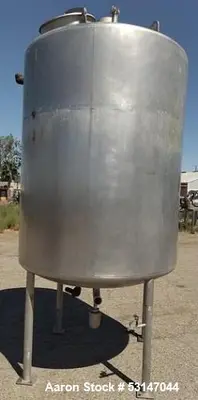

This used C.E. Howard 850-gallon stainless steel jacketed tank is a high-quality mixing and processing vessel, ideal for beverage, food, and pharmaceutical applications. Constructed from 304 stainless steel, it features a 5' diameter x 6-1/2' straight-side vessel with a dished top and bottom, providing an internal height of 7'1" from dish to dish.

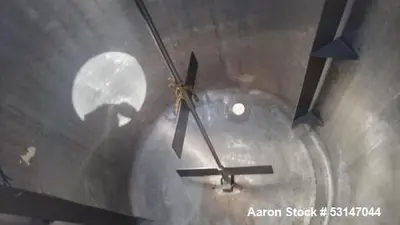

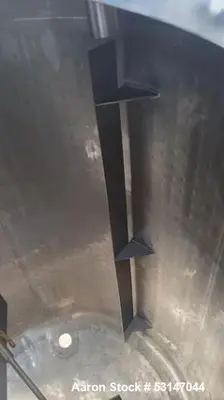

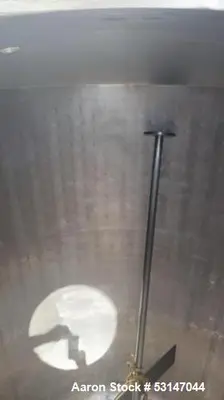

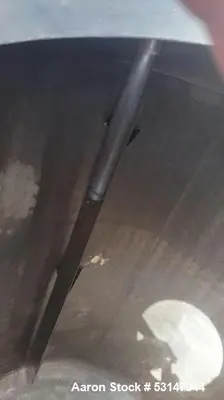

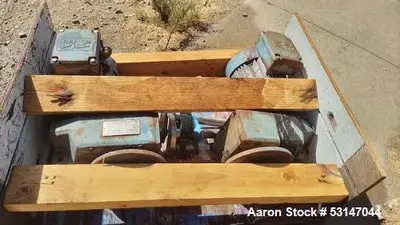

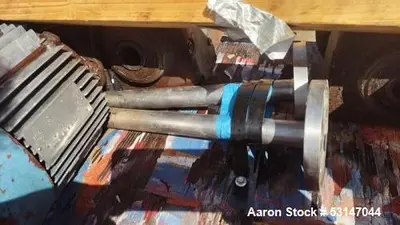

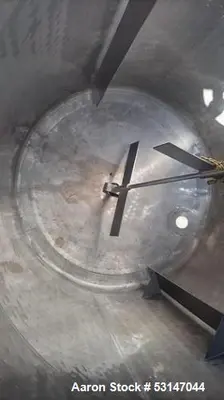

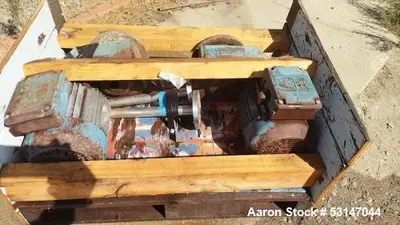

Internally, the tank includes (2) baffles and a top-entering agitator shaft equipped with two sets of 2-blade paddles, driven by a top-mounted drive through a gear reducer. The agitator system is powered by a 2 HP SEW Eurodrive gear motor (230/460V, 3/60Hz, 1700 RPM), delivering an output speed of 61 RPM.

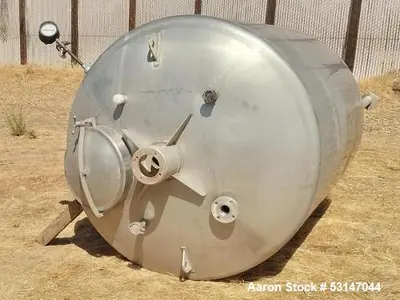

The vessel is supported by 3'3" high stainless steel legs for stability and accessibility. The top head includes a 20" diameter manway, an 8" diameter flanged connection for motor mounting, and (4) 2" inlets. The bottom head features a 3" diameter center bottom outlet for efficient discharge. Additionally, the 2" diameter jacket connections ensure effective heat transfer.
Specifications:

Capacity: 850 Gallons

Material: 304 Stainless Steel

Vessel Dimensions: 5' Diameter x 6-1/2' Straight Side

Internal Height: 7'1" (Dish to Dish)

Jacket Type: Fully Jacketed with Dimpled Jackets (Straight Side & Bottom Head)

Jacket Rating: ASME Rated for 75 PSI

Agitation System:

Top-Entering Agitator Shaft with Two Sets of 2-Blade Paddles

Drive System: Gear Reducer, SEW Eurodrive Gear Motor

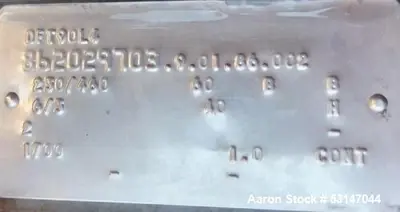

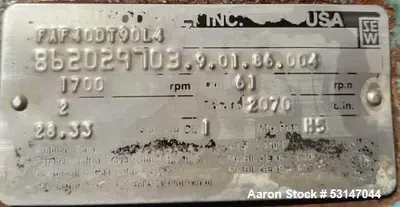

Motor Specs: 2 HP, 1700 RPM, 230/460V, 3/60Hz

Gearbox Output Speed: 61 RPM

Top Head Features:

20" Diameter Manway
8" Diameter Flanged Connection for Motor Mounting
(4) 2" Inlets

Bottom Head Features:

3" Diameter Center Bottom Outlet

Jacket Connections: 2" Diameter

Mounting: 3'3" High Stainless Steel Legs

Previous Use: Beverage Processing

Applications:

Beverage Processing – Mixing, heating, and cooling of liquid products

Food Processing – Blending and temperature-controlled storage of ingredients

Pharmaceutical & Biotech – Precision heating and cooling applications

Chemical Processing – Jacketed vessel for controlled reactions

Dairy & Brewery Industry – Fermentation and liquid storage

Common Uses for This Tank:

Mixing and processing of beverages
Heating and cooling in food and pharmaceutical industries
Chemical and biotech processing
Dairy and brewery applications
