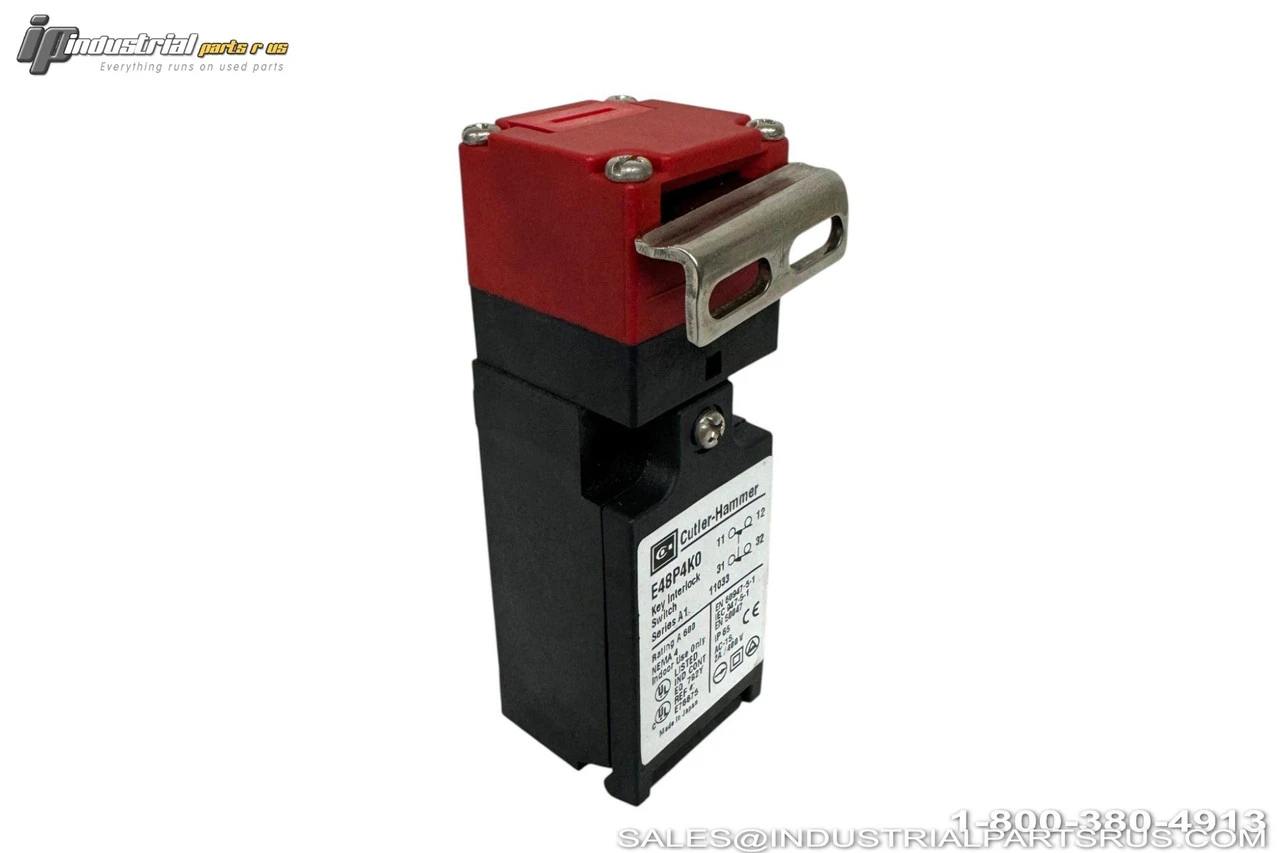

USED CUTLER-HAMMER E48P4K0
Overview
Description
The Cutler-Hammer E48P4K0 is a DIN-style safety key interlock switch designed for industrial safety applications with movable guards or covers. This positively-driven safety switch interrupts control circuits when guards are opened, providing machine safety compliance. Features synthetic resin construction and IP65/NEMA 4 rating for reliable operation.
Specification
Value
Brand
Cutler-Hammer
Model/Part Number
E48P4K0
Series
E48DIN
Switch Contacts
2NC (Normally Closed)
Contact Configuration
DPDT Slow Action
Voltage Rating
600VAC
NEMA Rating
NEMA 4
IP Rating
IP65
Body Material
Synthetic Resin/Plastic
Extraction Force
14.7 Newtons
Solenoid Interlocking
No
Guard Locking Type
None
Adjustable Actuator Head
Yes
Auxiliary Release
No
Dimensions (H x W x D)
2.62 x 1.2 x 1.22 inches
Weight
2.72 oz
Approvals
UL, CE, TUV
Application
Indoor Use Only
Termination Type
Terminal Wiring
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI0912
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: Panel Mount
Current Rating: 10 A
Application: Industrial Safety Control
Manufacturer: Cutler-Hammer
Enclosure Type: NEMA 4
Part Number: E48P4K0
Shelf: K-46
Model: E48P4K0
MPN: E48P4K0
Type: Safety Interlock
