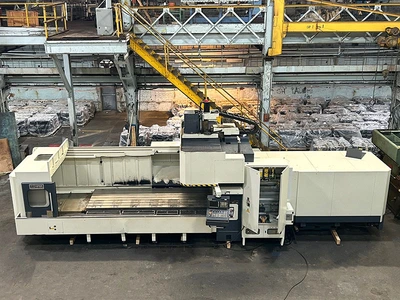

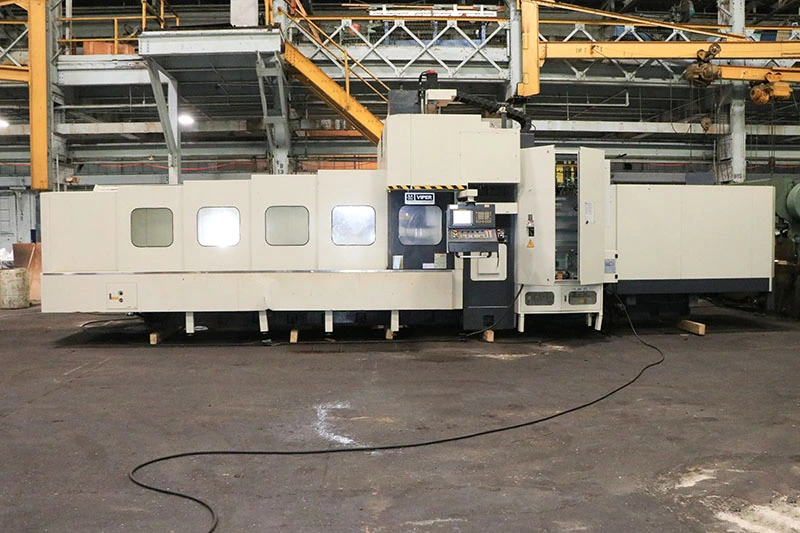

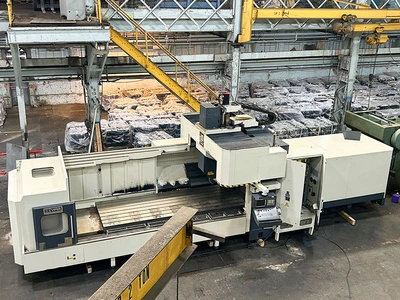

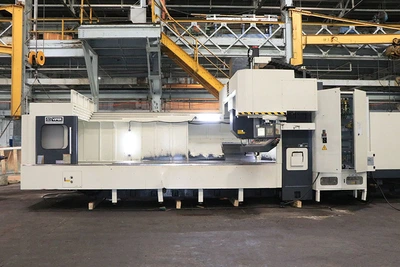

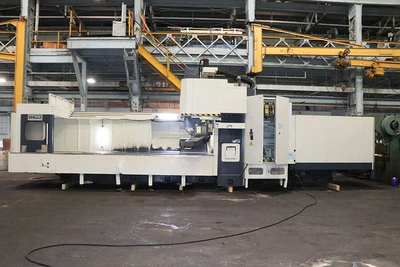

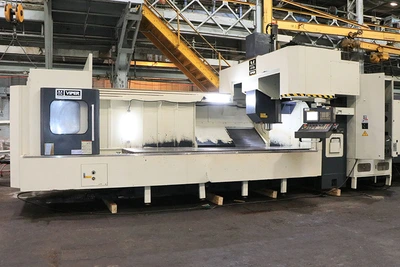

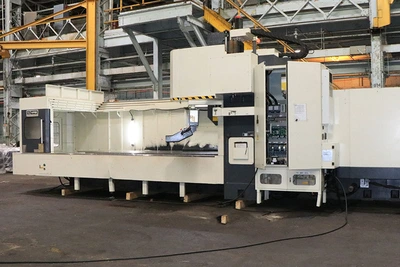

USED 2017 Mighty PRO-4216AG
Overview
Description
165" X Axis 63" Y Axis Mighty PRO-4216AG, Fanuc 0i-MF Control, CT50, 157" x 55" VERTICAL MACHINING CENTER, Fanuc 0iM-F Control, CT50,40 ATC,35 HP,BoxWays,35H
Specifications
MIGHTY DOUBLE-COLUMN MACHINING CENTER
MODEL: PRO 4216AG, NEW: 2017
TRAVELS
LONGITUDINAL TRAVEL (X) AXIS ............ 165" / 4200mm
CROSS TRAVEL (Y) AXIS ................... 63" / 1600mm
VERTICAL TRAVEL (Z) AXIS ............... 31.5" / 800mm
TABLE TO SPINDLE MIN TO MAX ............. 5.9" / 37.4"
DISTANCE BETWEEN COLUMNS ................ 66.92" / 1700mm
TABLE WORKING SURFACE ................... 157" X 55"
MAXIMUM WORKLOAD ON TABLE ............... 26,450 LBS
TABLE SURFACE ........................... GROUND / T-SLOTTED
SPINDLE TAPER ........................... CT 50
SPINDLE SPEED TWO SPEED GERED HEAD ...... 0 - 6,000 RPM
TOOL STORAGE CAPACITY.................... 40 TOOLS
MAXIMUM TOOL LENGTH ..................... 15.74" / 400mm
MAXIMUM TOOL WEIGHT ..................... 44 LBS / 20 KG
MAX TOOL SIZE (NEXT SLOT EMPTY) ......... 9.64" / 245mm
TOOL SIZE (FULL TOOLS)................... 4.92 / 125mm
MACHINE WEIGHT (BASE MACHINE ONLY) ...... 62,500 LBS
EQUIPPED WITH:

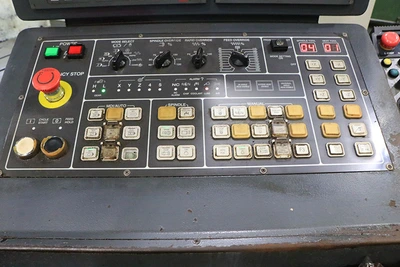

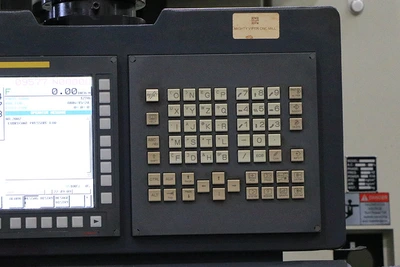

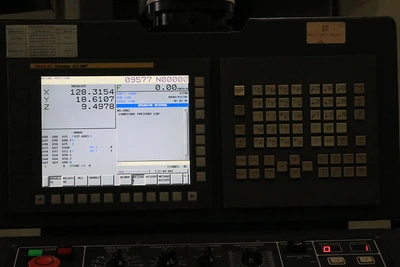

FANUC MODEL: 0I-MF FANUC CONTROL

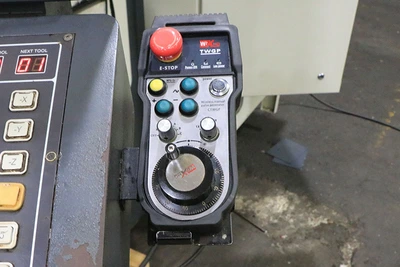

WIRELESS MANUAL PULSE GENERATOR (MPG)
HYDRAULIC COUNTERBALANCE FOR HEADSTOCK
40 TOOL AUTOMATIC TOOL CHANGER
SPINDLE CHILLER
COOLANT THROUGH SPINDLE
COOLANT SYSTEM
DUAL CHIP AUGERS TO SINGLE CHIP CONVEYOR
HARDENED & GROUND BOX WAYS
30 HORSE POWER SPINDLE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
FOR MORE INFORMATION: Call David at 973-497-7570
