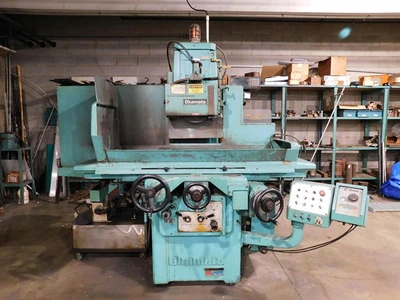

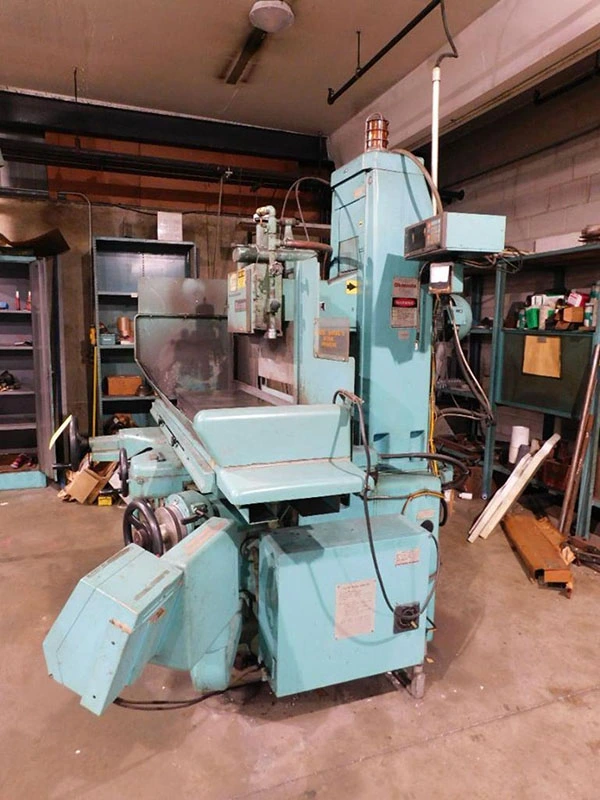

USED 1983 Okamoto ACC-124, 1983, AUTO IDF, 3X AUTO FEEDS,OTW DRESSER
Overview
Description

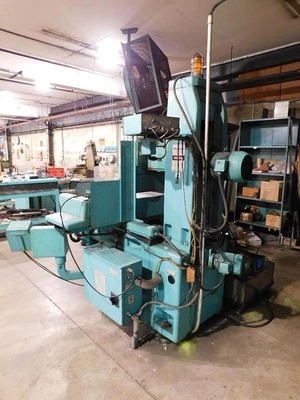

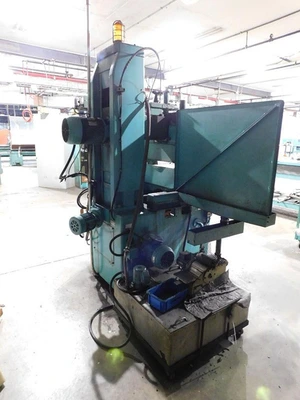

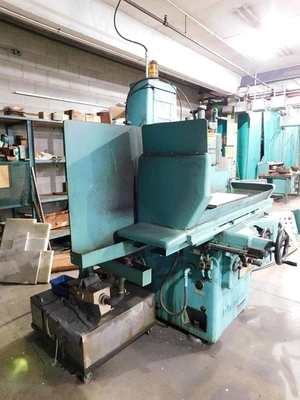

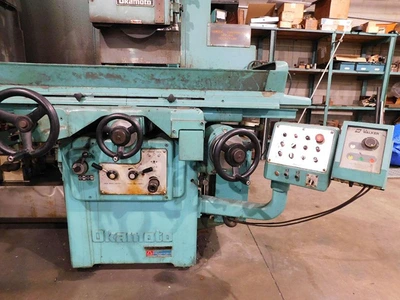

12" Width 24" Length Okamoto ACC-124, 1983, AUTO IDF, 3X AUTO FEEDS,OTW DRESSER SURFACE GRINDER, EMC, COOLANT
Specifications
12" X 24" OKAMOTO HIGH-PRECISION
SURFACE GRINDER WITH AUTO INCREMENTAL DOWNFEED

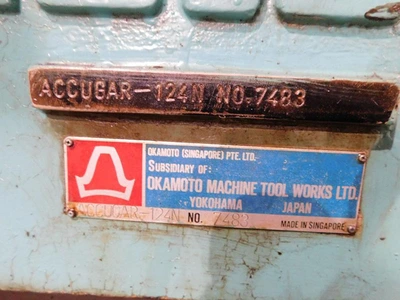

MODEL: ACCUGAR 124-N S/N: 7493 NEW: 1983
MAXIMUM GRINDING LENGTH ............ 24"
MAXIMUM GRINDING WIDTH ............... 12"
MAXIMUM HEIGHT UNDER 14" WHEEL ....... 13.7"
MAXIMUM LONGITUDINAL MOVEMENT ........ 29.5"
MAXIMUM CROSS MOVEMENT ............... 13.6"
FEEDS:
LONGITUDINAL HYDRAULIC FEED .......... 1' TO 100' FPM
CROSS FEED:
HYDRAULIC INTERMITTENT ............... 0.02" -.8"
HYDRAULIC CONTINUOUS ................. 0.4" 40" IPM
HAND FEED/REVOLUTION ................. 0.25"
GRADUATION OF WHEEL .................. 0.001"
VERTICAL MOVEMENT OF WHEELHEAD:
AUTO FEED/TABLE STROKE ............ 0.0001" - 0.00015"
AUTO FEED/SADDLE REVERSAL ........ 0.0001" - 0.00015"
HAND FEED/REVOLUTION ................. 0.05"
GRADUATION OF HANDWHEEL .............. 0.0001"
RAPID FEEDRATE ....................... 19" IPM
GRINDING WHEEL ................... 12" x 1- 1/2" x 5"
MOTORS:
SPINDLE MOTOR ........................ 5 HP
HYDRAULIC PUMP MOTOR ................. 3 HP
VERTICAL RAPID FEED MOTOR ............ 0.5 HP
DIMENSIONS ....................... 74"FB x 103"RL x 74"H
APPROX. MACHINE WEIGHT ............... 5,000 LBS.
EQUIPPED WITH:
HYDRAULIC TABLE TRAVERSE
AUTO CROSSFEED
AUTO INCREMENTAL DOWNFEED
AUTOMATIC SPARKOUT UP TO 5 PASSES
POWER ELEVATION
OVER-THE-WHEEL DRESSER

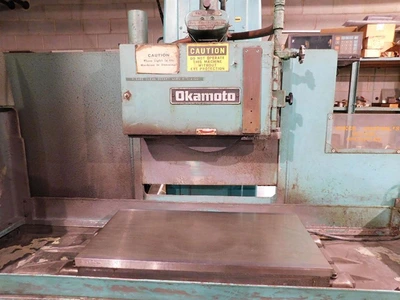

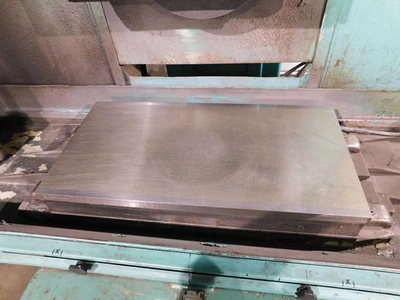

12" x 24" O.S. WALKER "LBP" FINE-DIVISION
ELECTRO-MAGNETIC CHUCK

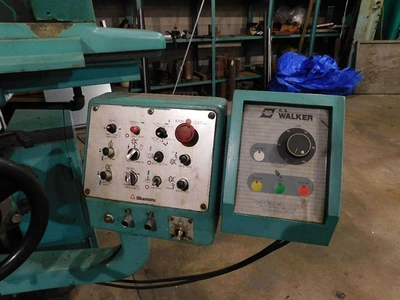

O.S. WALKER "SMART" VARIABLE HOLD NEUTROFIER" CONTROL,
COOLANT SYSTEM WITH MAGNETIC SEPARATOR

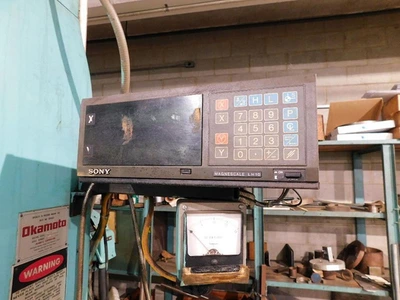

"SONY" "MAGNESCALE LH10" 2-AXIS DIGITAL READOUT
5 H.P./3/60/230-460 VOLT SPINDLE MOTOR
MACHINE IS PRESENTLY WIRED FOR 220 VOLTS
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** VERY GOOD CONDITION & APPEARANCE - FROM A TOOL ROOM **
FOR MORE INFORMATION: Call Andy at 973-497-7600
