Used CE Howard 7,500 Gallon Stainless Steel Jacketed Tank – 304 SS

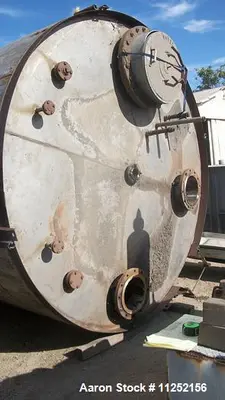

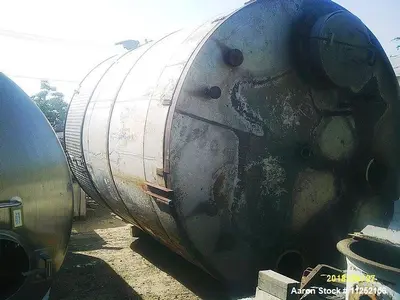

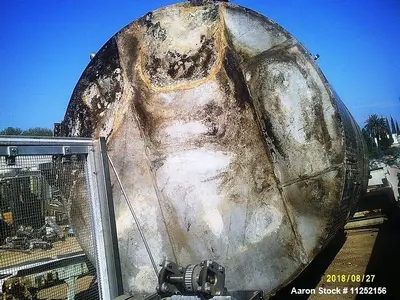

Used CE Howard 7,500 Gallon Stainless Steel Jacketed Tank, 304 stainless steel, measures 118" diameter x 162" straight side with dome top and flat bottom. Unit has dimple jacket wrapped around bottom section of tank, 48" high, rated for 85 PSI at 300 degrees Fahrenheit to negative 20 degrees Fahrenheit. Includes (1) 4" diameter side bottom outlet, (2) 2" top ports and (3) 3" top ports with 22" x 10" manhole.

Used Equipment Facts About This Machine
Manufacturer Information:

Manufacturer: CE Howard

Capacity: 7,500 Gallons

Material: 304 Stainless Steel

Description:
This used CE Howard 7,500-gallon stainless steel jacketed tank is designed for industrial liquid storage and processing applications. Constructed from 304 stainless steel, the tank measures 118" in diameter x 162" straight side with a dome top and flat bottom for stability.

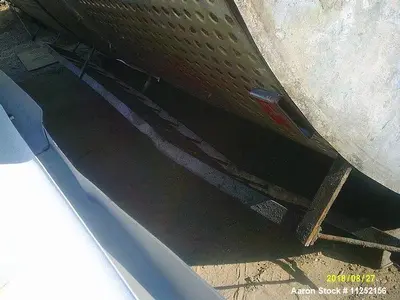

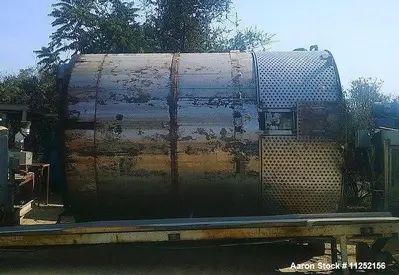

The dimple jacket wraps around the bottom section of the tank (48" high) and is rated for 85 PSI at 300°F to -20°F, providing efficient temperature regulation. The tank features a 4" side bottom outlet, two (2) 2" top ports, and three (3) 3" top ports, along with a 22" x 10" manhole for easy access and maintenance.
Specifications:

Capacity: 7,500 gallons

Material: 304 stainless steel

Tank Dimensions: 118" diameter x 162" straight side

Top: Dome top

Bottom: Flat bottom

Jacket Type: Dimple jacket (wrapped around bottom section)

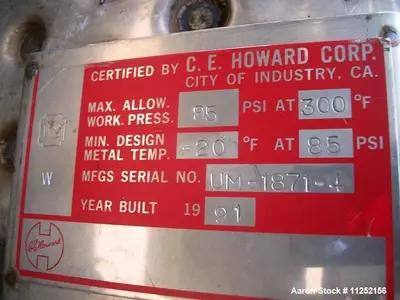

Jacket Rating: 85 PSI at 300°F to -20°F

Outlet: (1) 4" side bottom outlet

Ports:

(2) 2" top ports
(3) 3" top ports

Manhole: 22" x 10"

Applications:

Food and beverage processing
Chemical and pharmaceutical storage
Dairy and brewing industries
Industrial liquid storage
Temperature-sensitive product storage

Products That Would Use This Tank:

Liquid food ingredients (oils, syrups, juices)
Dairy and beverage processing (milk, beer, wine)
Chemical and pharmaceutical liquids
Industrial process fluids
Heated or cooled storage applications
