USED SCHOLZ INDUSTRIES 18600 LITER

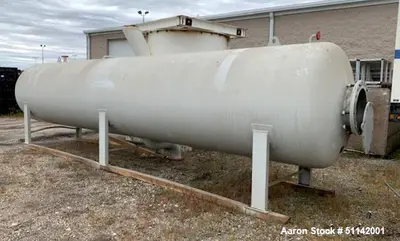

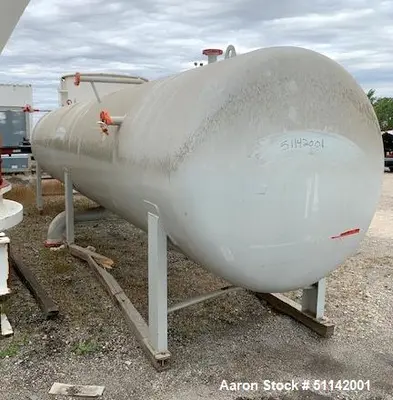

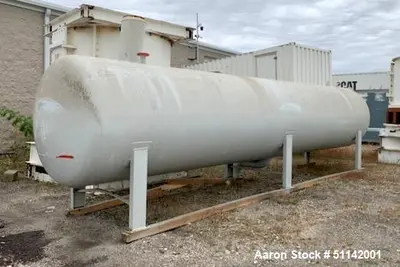

Used Scholz GMBH Tank, 4,910 Gallon / 18,600 Liter capacity, 316 Stainless Steel, Horizontal. Approximate 66" diameter x 312" straight side, dished ends. DP: rated -1 bar (-14.5 psi) @ DT: 50 degrees C (122 degrees F). IP: rated 0.5 bar (7.25 psi). Openings top: 2", 3", side: 20" manway with cover, 3". Side bottom: 1-1/2", 8" center bottom outlet. Mounted on (6) legs. Serial # 42852/2. Built 2001.

Used Equipment Facts About This Machine

Brand: Scholz GMBH

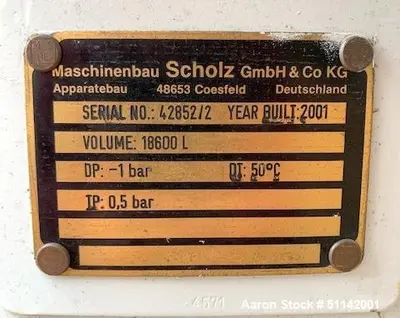

Serial Number: 42852/2

Year Built: 2001

Condition: Used

Description
The Scholz GMBH 4,910-Gallon (18,600L) Horizontal Stainless Steel Tank is a high-quality industrial storage vessel, designed for chemical, pharmaceutical, food, and industrial liquid storage applications. Constructed from 316 stainless steel, it ensures superior corrosion resistance, durability, and sanitary processing capabilities.
With a 66" diameter and 312" straight side, this horizontally oriented tank features dished ends, optimizing pressure distribution and structural integrity. It is pressure-rated for -1 bar (-14.5 psi) at 50°C (122°F) for DP and 0.5 bar (7.25 psi) for IP, making it suitable for low-pressure and vacuum applications.

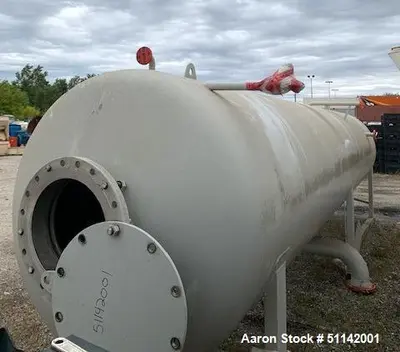

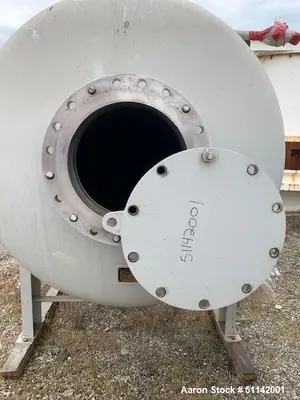

The tank has multiple inlet and outlet connections, including a 20" manway with cover for easy access, various top and side openings for filling and monitoring, and a 1-1/2" and 8" center bottom outlet for efficient discharge. It is mounted on six legs for stability and secure installation.
Specifications

Capacity: 4,910 Gallons (18,600 Liters)

Material: 316 Stainless Steel

Tank Orientation: Horizontal

Tank Dimensions:

Diameter: 66"

Straight Side Length: 312"

Ends: Dished

Pressure Ratings:

DP (Design Pressure): -1 bar (-14.5 psi) @ 50°C (122°F)

IP (Internal Pressure): 0.5 bar (7.25 psi)

Openings:

Top: 2", 3"

Side: 20" Manway with Cover, 3" Opening

Side Bottom: 1-1/2", 8" Center Bottom Outlet

Mounting: 6 Legs

Applications

Food & Beverage Processing – Bulk storage of liquid ingredients, dairy, juices, and syrups

Pharmaceutical & Biotech – High-purity liquid storage for formulations

Chemical Processing – Storage of solvents, acids, and low-pressure chemicals

Industrial Wastewater Treatment – Containment and treatment of process liquids

Oil & Petroleum Storage – Secure containment of industrial fluids
