CMW Inc Approximately 4000 Gallon Stainless Steel Vertical Storage Tank

Used CMW Inc Approximately 4000 Gallon Stainless Steel Vertical Storage Tank. 96" diameter X 128" high straight side. Flat top and flat bottom with ibeam reinforcements. Top Openings: 6" diameter inspection port with lid, (3) 2" side top inlets, Openings Side: 24" side bottom manway, (4) 2" and (1) 3" side bottom outlets. Mounted on (4) 10" X 8" galvanized i-beam legs.

Used Equipment Facts About This Machine

Brand: CMW Inc

Condition: Used

Description
The CMW Inc 4,000-Gallon Stainless Steel Vertical Storage Tank is a durable and high-capacity industrial storage vessel, designed for food, beverage, chemical, and industrial liquid storage applications. Built with stainless steel construction, it ensures corrosion resistance, longevity, and compliance with sanitary processing requirements.

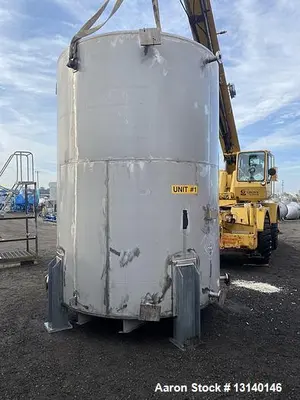

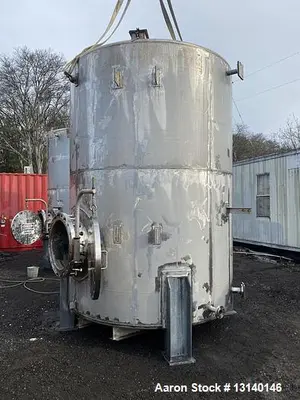

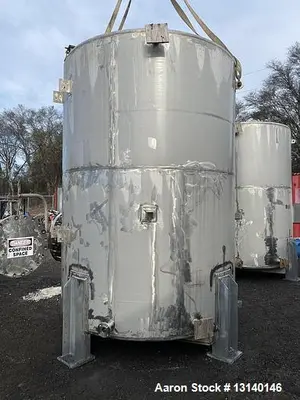

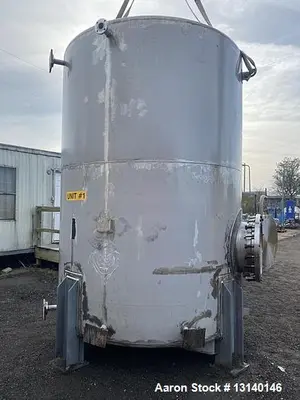

This vertical tank features a 96" diameter and 128" straight side height, with a flat top and flat bottom reinforced with I-beams for added structural integrity. It is mounted on four 10" x 8" galvanized I-beam legs, providing stability and durability in industrial settings.

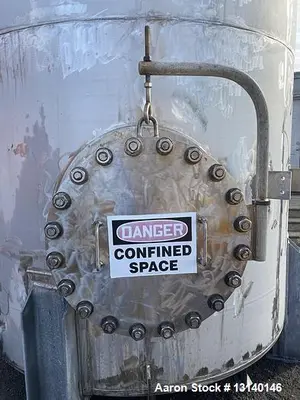

Equipped with multiple inlet and outlet connections, this tank allows for efficient product transfer and processing. The top openings include a 6" inspection port with lid and (3) 2" side top inlets, while the side bottom features a 24" manway for easy access and (4) 2" outlets along with (1) 3" outlet for controlled discharge.
Specifications

Capacity: ~4,000 Gallons

Material: Stainless Steel

Tank Orientation: Vertical

Tank Dimensions:

Diameter: 96"

Straight Side Height: 128"

Top & Bottom:

Top: Flat

Bottom: Flat with I-Beam Reinforcements

Top Openings:

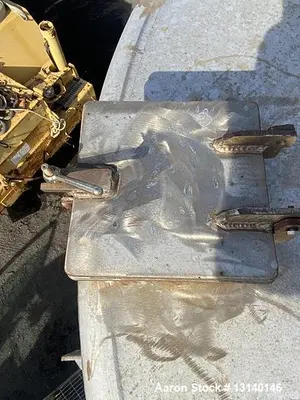

6" Inspection Port with Lid
(3) 2" Side Top Inlets

Side Bottom Features:

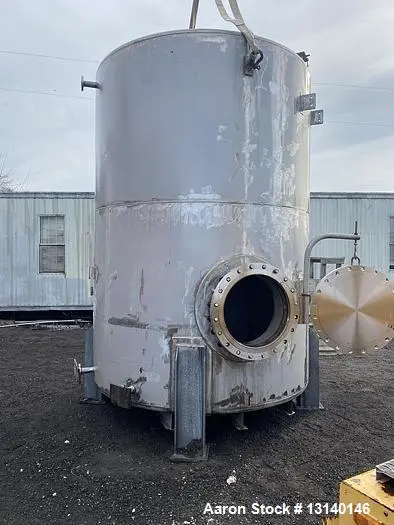

24" Side Bottom Manway
(4) 2" Side Bottom Outlets
(1) 3" Side Bottom Outlet

Mounting: (4) 10" x 8" Galvanized I-Beam Legs

Applications

Food & Beverage Processing – Bulk storage of dairy, juices, syrups, and liquid ingredients

Pharmaceutical & Biotech – High-purity liquid storage and formulation

Chemical Processing – Safe containment of process chemicals and solvents

Industrial Wastewater Treatment – Holding and treatment of process liquids

Oil & Petroleum Storage – Secure storage of industrial fluids
