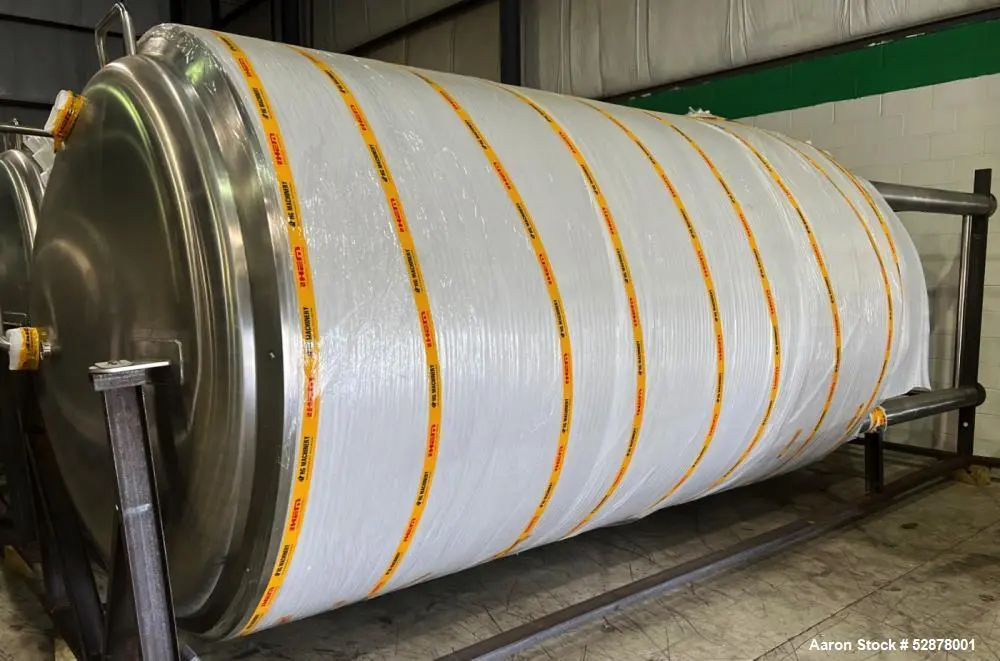

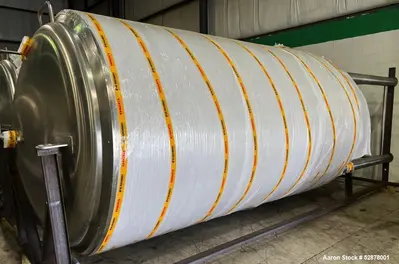

Shandong HG Machinery 10,000 Liter Fermentation Tank

Unused - Shandong HG Machinery 10,000 Liter Fermentation Tank, 2641 Gallon (85 BBL), 304 Stainless Steel, Vertical. Approximately 78.74" diameter x 137.79" straight side. Dished top, 60 degree cone bottom. Jacket approximately 14m2, test pressure 0.2MPa (29 PSI). Openings top: 102mm (4"), 89mm (3.5"), 51mm (2"), Side: 540mm x 440mm Manhole (21.25" x 17.3"), 38mm (1.5"), 19mm (.75"). 1-1/2" Side cone outlet, 818mm (32.2") discharge height. 1-1/2" Center bottom outlet, approximate 60mm (2.36") discharge height. Mounted on (4) legs. Approximate 87" x 87" x 236" tall, 3400 lb

Used Equipment Facts About This Machine
Manufacturer Information

Brand: Shandong HG Machinery

Condition: Unused

Capacity: 10,000 Liters (2,641 Gallons / 85 BBL)

Material: 304 Stainless Steel

Description
This Shandong HG Machinery 10,000L fermentation tank is a high-capacity, industrial-grade fermentation vessel, ideal for breweries, wineries, distilleries, and other fermentation-based production. Constructed from 304 stainless steel, it is durable, corrosion-resistant, and easy to clean.

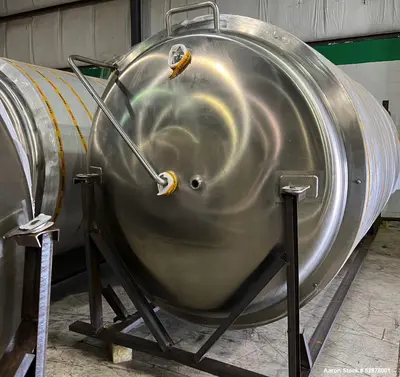

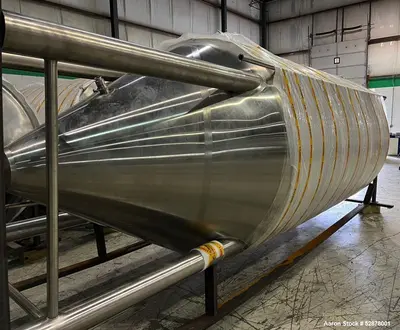

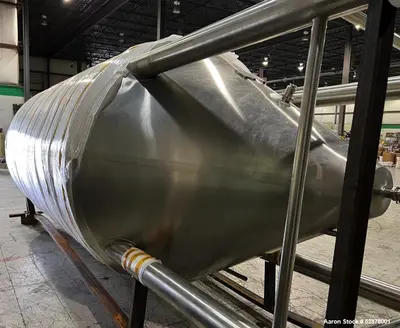

The tank is vertically oriented with a 78.74” diameter and 137.79” straight side height, featuring a dished top and a 60-degree cone bottom for efficient yeast and sediment collection.
It includes a jacketed cooling system (14m² surface area) for temperature control during fermentation, with a test pressure rating of 0.2 MPa (29 PSI).
Tank Openings & Fittings

Top Openings:

102mm (4")
89mm (3.5")
51mm (2")

Side Openings:

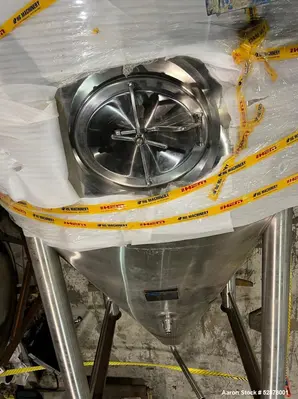

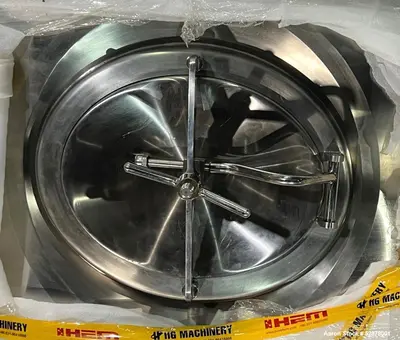

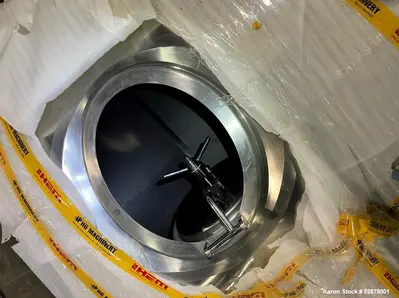

540mm x 440mm Manhole (21.25” x 17.3”)
38mm (1.5")
19mm (0.75")

Outlet Ports:

1.5” Side Cone Outlet (818mm / 32.2” Discharge Height)

1.5” Center Bottom Outlet (~60mm / 2.36” Discharge Height)

The tank is mounted on four sturdy stainless steel legs for stability and easy integration into production facilities.
Specifications

Total Capacity: 10,000 Liters (85 BBL / 2,641 Gallons)

Material: 304 Stainless Steel

Tank Orientation: Vertical

Tank Dimensions:

Diameter: 78.74"

Straight Side Height: 137.79"

Overall Dimensions: 87" x 87" x 236" Tall

Weight: ~3,400 lbs

Bottom Type: 60-Degree Cone Bottom

Jacket Surface Area: 14m²

Jacket Test Pressure: 0.2 MPa (29 PSI)

Mounting: (4) Stainless Steel Legs

Applications

Breweries – Fermentation of beer, lagers, ales, and specialty brews

Wineries – Wine fermentation and aging

Distilleries – Fermenting mash for spirits production

Food & Beverage Processing – Fermented beverages such as kombucha and kefir

Biotechnology & Pharmaceutical – Controlled fermentation for industrial production

Compatible Products

Stainless steel fermenters and brite tanks
Jacketed fermentation vessels with cooling systems
High-capacity brewing and distillation equipment
Industrial fermentation systems for biotech and food processing
