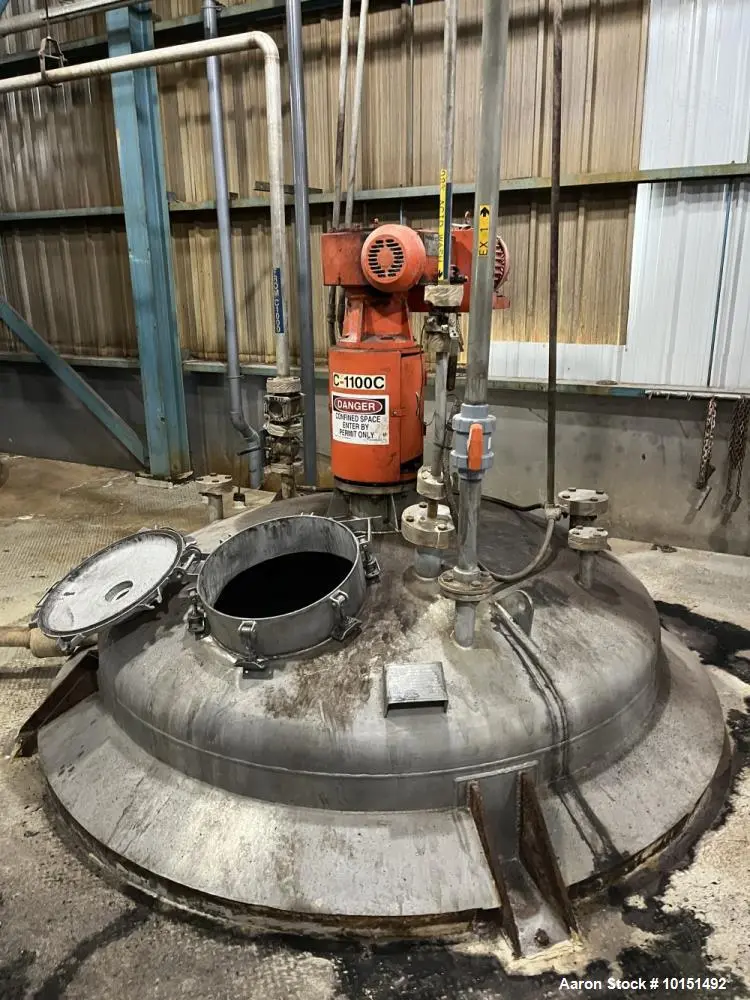

Industrial 2,200 Gallon 316L Stainless Steel Mixing Tank – Half-Pipe Jacket & Axial Agitator

Used Industrial 2,200 Gallon 316L Stainless Steel Mixing Tank Half-Pipe Jacket & Axial Agitator. Made by Alloy Fabricators. 84" diameter x 76" straight side; Dished top and bottom; Internal rated 15 psi at 120 degrees F; 304 stainless steel half-pipe jacket rated 85 psi at 120 degrees F; 15 hp axial type agitator, 316 stainless steel, three hub with 2 blades each, 39 1/2" diameter, upper - 2 left hand; mid - 2 left hand; bottom - 2 right hand. Serial # 00-172A. Built 2000.

Used Equipment Facts About This Machine
Description:
This used 2,200-gallon 316L stainless steel mixing tank, manufactured by Alloy Fabricators, is designed for industrial liquid processing, agitation, and temperature-sensitive applications. With a 84" diameter and 76" straight side height, this tank is built for heavy-duty mixing and thermal control.

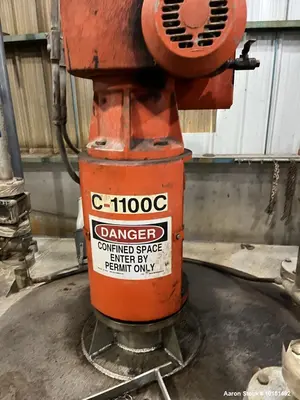

The internal chamber is rated for 15 PSI at 120°F, while the 304 stainless steel half-pipe jacket is rated 85 PSI at 120°F, allowing for efficient heating or cooling. It features a 15 HP axial-type agitator, constructed from 316 stainless steel, with a three-hub design and two blades per hub (39.5" diameter), configured as follows:

Upper Hub: 2 left-hand blades

Mid Hub: 2 left-hand blades

Bottom Hub: 2 right-hand blades

Specifications:

Capacity: 2,200 gallons

Material: 316L stainless steel (tank), 304 stainless steel (jacket)

Dimensions:

Diameter: 84”

Straight Side Height: 76”

Tank Design:

Top: Dished

Bottom: Dished

Pressure Ratings:

Internal: 15 PSI at 120°F

Jacket (304 SS Half-Pipe): 85 PSI at 120°F

Agitation System:

Type: 15 HP axial-type agitator

Material: 316 stainless steel

Blade Configuration:

Three hubs, 39.5" diameter

Upper Hub: 2 left-hand blades

Mid Hub: 2 left-hand blades

Bottom Hub: 2 right-hand blades

Applications:
This stainless steel jacketed mix tank is ideal for liquid processing, controlled temperature mixing, and industrial agitation, making it suitable for industries such as:

Chemical processing
Pharmaceutical and biotech manufacturing
Food and beverage production
Dairy and liquid food blending
Cosmetic and personal care product formulation
Water treatment and wastewater processing
Petrochemical and industrial fluid mixing

Compatible Products:

Chemical solutions and industrial liquids
Food-grade liquids (e.g., syrups, dairy, beverages)
Pharmaceutical and biotech formulations
Essential oils and cosmetic mixtures
Water and wastewater treatment solutions
Adhesives, paints, and coatings
