Alloy Fabricators Approximately 2,200 Gallon 316L Stainless Steel Jacketed Mix T
Overview
Description

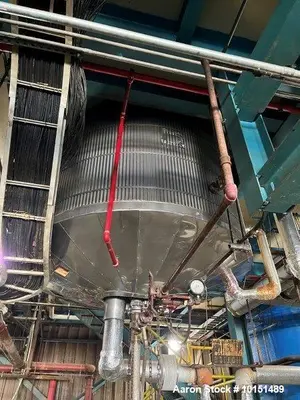

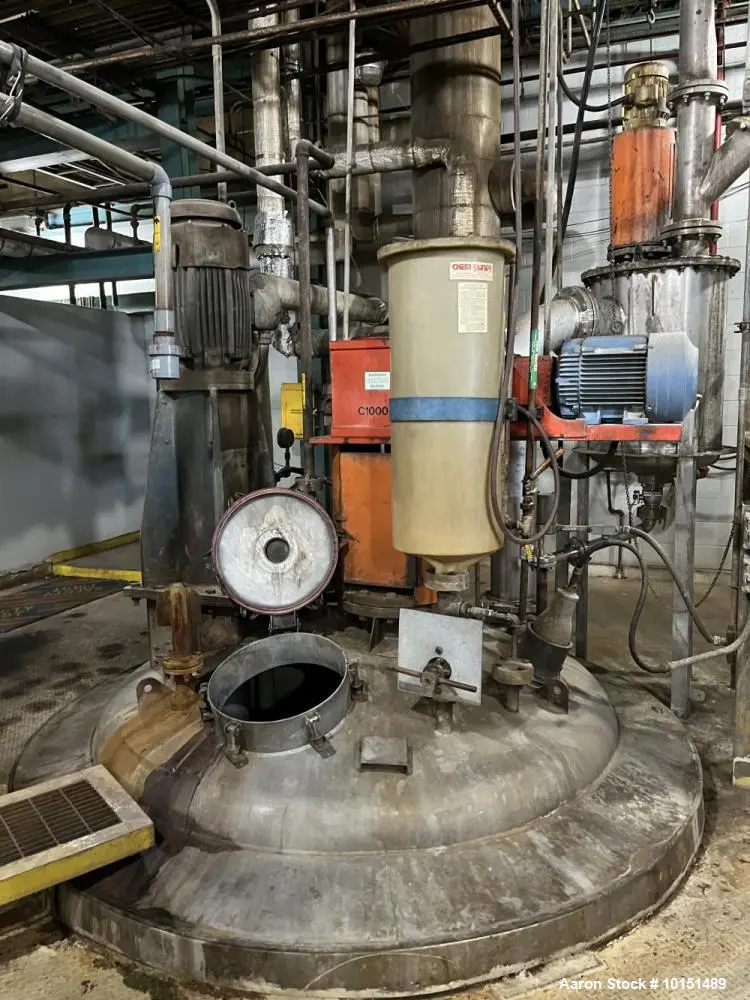

Used Alloy Fabricators Approximately 2,200 Gallon 316L Stainless Steel Jacketed Mix Tank. 90" diameter x 64" straight side; Dished top and bottom; Internal rated 15 psi at 120 degrees F; 304 stainless steel half-pipe jacket rated 85 psi at 120 degrees F; 15 hp axial type agitator, 316 stainless steel, three hub with 2 blades each, 39 1/2" daimeter, upper - 2 left hand; mid - 2 left hand; bottom - 2 right hand. Serial # 1-128A; Built 1991.
Specifications
Used Equipment Facts About This Machine
Brand: Alloy Fabricators

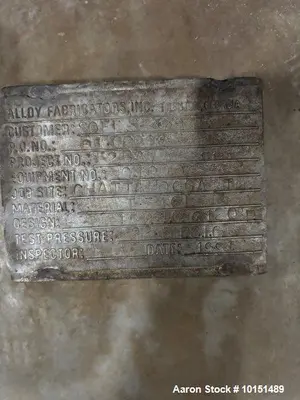

Serial Number: 1-128A
Year Built: 1991
Condition: Used
Description
The Alloy Fabricators 2,200-Gallon Stainless Steel Jacketed Mix Tank is a high-capacity industrial mixing vessel, ideal for chemical, pharmaceutical, food, and industrial applications. Constructed from 316L stainless steel, it provides superior corrosion resistance and sanitary processing capabilities.
This jacketed tank features a 90" diameter and 64" straight side, with a dished top and bottom to ensure optimal mixing efficiency and drainage. The 304 stainless steel half-pipe jacket is rated for 85 psi at 120°F, allowing for precise temperature control via heating or cooling.

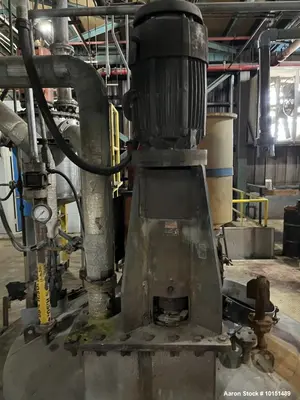

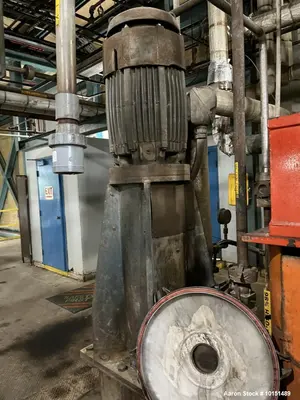

Equipped with a 15 HP axial-type agitator, the system includes three hubs, each with two blades measuring 39.5" in diameter:
Upper Hub: (2) Left-Hand Blades
Middle Hub: (2) Left-Hand Blades
Bottom Hub: (2) Right-Hand Blades
This design provides efficient mixing, blending, and homogenization for a variety of liquid-based applications.
Specifications
Capacity: 2,200 Gallons
Material: 316L Stainless Steel (Tank), 304 Stainless Steel (Half-Pipe Jacket)
Tank Dimensions:
Diameter: 90"
Straight Side Height: 64"
Top & Bottom: Dished
Pressure Ratings:
Internal: 15 psi @ 120°F
Jacket: 85 psi @ 120°F
Agitator:
Type: 15 HP Axial
Material: 316 Stainless Steel
Blade Configuration:
Three Hubs (39.5" Diameter Each)
Upper Hub: (2) Left-Hand Blades
Middle Hub: (2) Left-Hand Blades
Bottom Hub: (2) Right-Hand Blades
Applications
Food & Beverage Processing – Mixing and blending of dairy, syrups, and liquid ingredients
Pharmaceutical & Biotech – High-purity liquid formulation and batch processing
Chemical Processing – Bulk storage and reaction vessel for controlled temperature processing
Industrial Wastewater Treatment – Chemical conditioning and sludge mixing
Cosmetic & Personal Care – Production of lotions, creams, and emulsions
Compatible Products
Stainless steel mixing and storage tanks
High-capacity industrial blending vessels
Pharmaceutical and food-grade process tanks
Temperature-controlled mixing and processing systems
