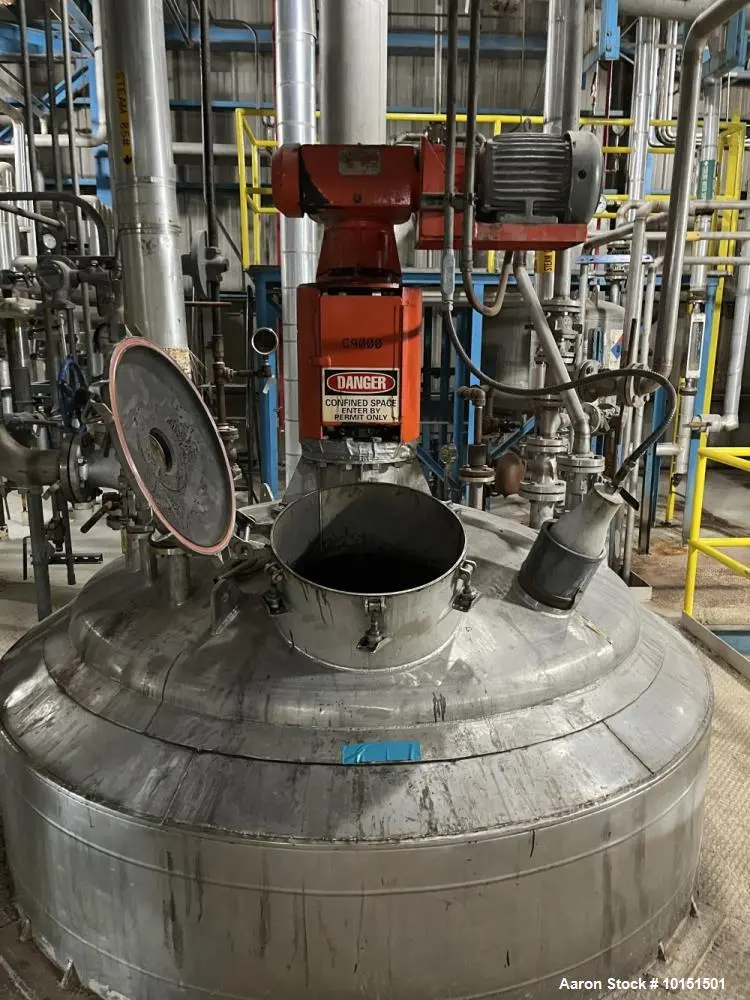

Alloy Fabricators Approximately 1,950 Gallon Mix Tank with Internal Coils

Used Alloy Fabricators Approximately 1,950 Gallon Mix Tank with Internal Coils. 304 Stainless Steel Jacketed. 78" diameter x 81" straight side; Dished top and bottom; Internal rated 15/FV at 335 degrees F; Jacket rated 44 psi at 335 degrees F; Coils rated 44 psi at 335 degrees F; (4) side wall baffles; 7.5 hp axial type agitator, 304 stainless steel, Foam breaker at top - 2 blade, 51" dia; dual hub with 3 blades - upper 50" dia; lower 30" dia, 18" dia. 2 blade radial flow at bottom. Serial # 1-151A; Built 1991.

Used Equipment Facts About This Machine

Brand: Alloy Fabricators

Condition: Used

Description
The Alloy Fabricators 1,950-Gallon Stainless Steel Jacketed Mix Tank is a high-performance mixing vessel, designed for food, pharmaceutical, chemical, and industrial applications. Constructed from 304 stainless steel, it offers excellent corrosion resistance and durability.

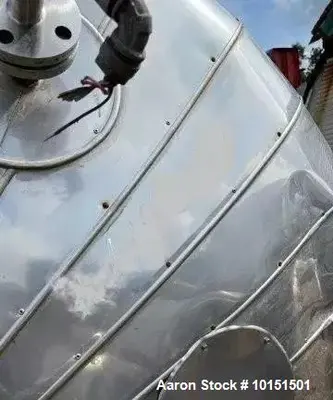

This jacketed tank has a 78" diameter and 81" straight side, featuring a dished top and bottom for optimal structural integrity and drainage. It is internally rated at 15 psi / full vacuum (FV) at 335°F, with the jacket and internal coils rated at 44 psi at 335°F, making it ideal for temperature-controlled mixing processes.

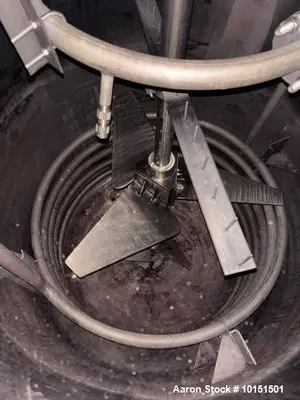

Equipped with a 7.5 HP axial-type agitator, the system includes:

Foam Breaker: 2-blade, 51" diameter (Top)

Dual Hub Agitator:

Upper Hub: 3-Blade, 50" Diameter

Lower Hub: 3-Blade, 30" Diameter

Radial Flow Blade: 2-blade, 18" diameter (Bottom)

(4) Side Wall Baffles for enhanced mixing efficiency

Specifications

Capacity: 1,950 Gallons

Material: 304 Stainless Steel

Tank Dimensions:

Diameter: 78"

Straight Side Height: 81"

Top & Bottom: Dished

Pressure Ratings:

Internal: 15 psi / FV @ 335°F

Jacket: 44 psi @ 335°F

Coils: 44 psi @ 335°F

Agitator:

Type: 7.5 HP Axial

Material: 304 Stainless Steel

Blade Configuration:

Foam Breaker: 2-Blade (51" Diameter)

Upper Hub: 3-Blade (50" Diameter)

Lower Hub: 3-Blade (30" Diameter)

Bottom Radial Flow Blade: 2-Blade (18" Diameter)

Mixing Enhancements: (4) Side Wall Baffles

Applications

Food & Beverage Processing – Mixing dairy, syrups, and liquid ingredients

Pharmaceutical & Biotech – Controlled mixing and batch processing

Chemical Processing – Blending of temperature-sensitive chemicals

Industrial Wastewater Treatment – Chemical conditioning and sludge processing

Cosmetic & Personal Care – Emulsification of lotions, creams, and gels
