USED VOORTMAN V808M

Brand – VOORTMAN Model – V808M Type – Plasma Cutters Year – 2013 Condition – Used – Excellent

Model: Voortman V808 Working Width: 49″ Working Height: 20″ Working Length: Unlimited Machine Width: 176″ Machine Height: 141″ Machine Length: 225″ Machine Weight: 24,200 lbs Axis: 6 + 2 Max Material Weight: 33,070 lbs Max Robot Air Speed: 590 ft/min Max Feeder Roll Speed: 137 ft/min

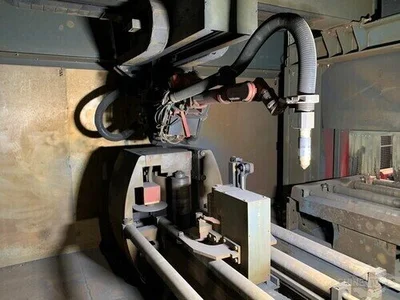

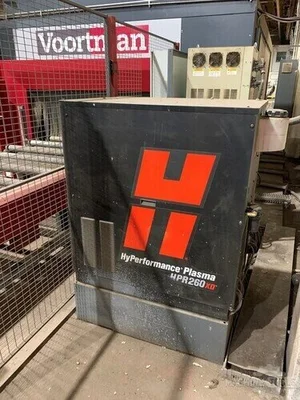

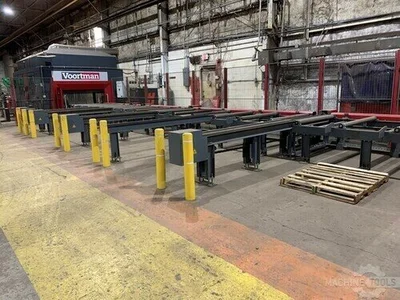

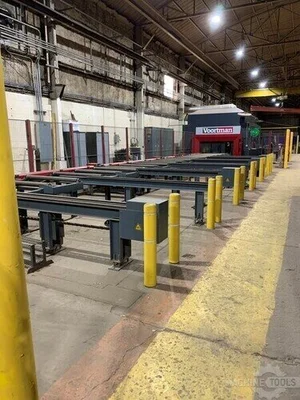

Infeed Drag-Chain Cross Transports for Coping Machine (mechanical drag-dogs, 5 supports, 13′ length) Infeed Roller Conveyor (50″ width, 2.5″ roll diameter, 31.5″ roll spacing, 300 lbs/ft capacity, 50′ length) V808M Coping Robot (6-Axis Panasonic robot with two additional axes and integrated length measuring system with feeder rollers) Hypertherm HPR 260XD Plasma Cutting Unit DFPRO Model 8 Fume Extraction Unit Telescopic Roller Conveyors (infeed and outfeed sides of robot) Outfeed Roller Conveyor (50″ width, 2.5″ roll diameter, 31.5″ roll spacing, 300 lbs/ft capacity, 40′ length) Outfeed Drag-Chain Cross Transports (mechanical drag-dogs, 4 supports, 13′ length) Light Curtain Set (2 pcs) Light Curtain Set in Cross Transport (2 pcs) Safety Fencing (Approx. 125′)
