USED CHERRY BURRELL EPD

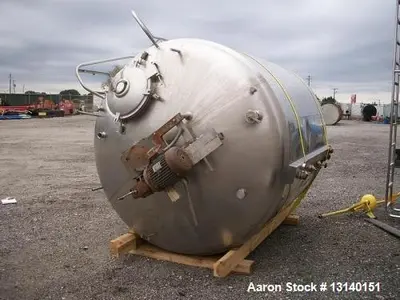

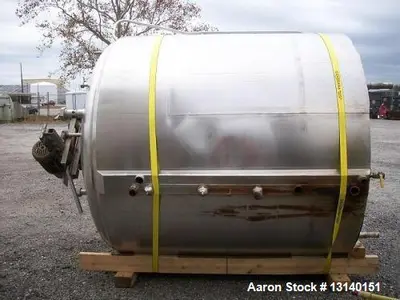

Used Cherry Burrell Approximately 1500 Gallon 304 Stainless Steel Jacketed Processor. Vertical, Dished top Sloping bottom. 80" diameter X 80" high straight side. Model EPD. Equipped with multi-zone panel coil jacket on sides and bottom head. Jacket is insulated and covered with stainless steel sheathing. Top Openings: 20" manway, (3) 1 1/2", (1) 2", and (1) 3/4". 3" side bottom drain with valve. Has spray-balls and baffle. Equipped with wide bottom and side sweep agitator, driven thru a Hub City, model 4510 geardrive with a 150:1 ratio, powered by a 5HP 3/60/230-460 volt motor. Has (2) thermowells. Mounted on stainless steel legs and equipped with stainless steel ladder. Previously used in Milk Production.

Used Equipment Facts About This Machine
Manufacturer Information

Brand: Cherry-Burrell

Model: EPD

Condition: Used

Capacity: ~1,500 Gallons

Material: 304 Stainless Steel

Previous Use: Milk Production

Description
This 1,500-gallon Cherry-Burrell jacketed processor is a sanitary-grade, high-performance mixing and processing tank, ideal for food, dairy, beverage, and pharmaceutical applications.
Built from 304 stainless steel, the tank is corrosion-resistant and easy to clean. It features a multi-zone panel coil jacket on the sides and bottom head, allowing for precise temperature control via heating or cooling. The jacket is insulated and wrapped with stainless steel sheathing to maintain thermal efficiency.

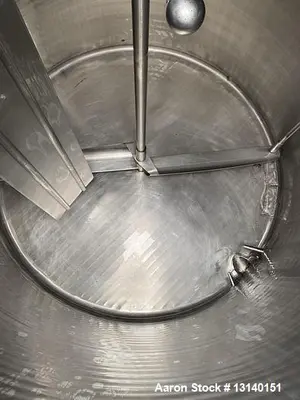

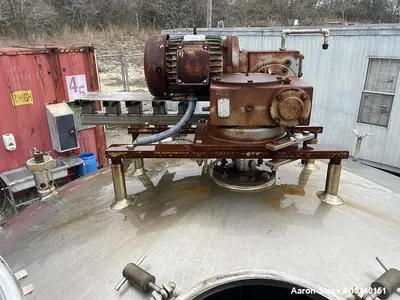

The tank is equipped with a wide bottom and side sweep agitator, driven by a Hub City Model 4510 gear drive (150:1 ratio) and a 5HP motor (3/60/230-460V), ensuring consistent product mixing and heat distribution.

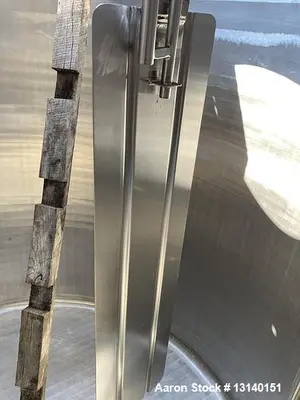

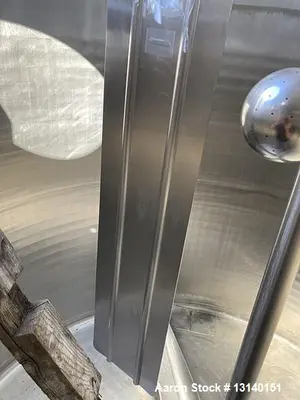

Additional features include a spray-ball cleaning system, internal baffle, and two thermowells for temperature monitoring. The stainless steel legs and an integrated stainless steel ladder provide stability and accessibility.
Specifications

Total Capacity: 1,500 Gallons

Material: 304 Stainless Steel

Tank Orientation: Vertical

Tank Dimensions:

Diameter: 80”

Straight Side Height: 80”

Top Design: Dished Top

Bottom Design: Sloping Bottom

Jacket Type: Multi-Zone Panel Coil (Sides & Bottom Head)

Insulated & Covered with Stainless Steel Sheathing

Top Openings:

20” Manway
(3) 1.5” Openings
(1) 2” Opening
(1) ¾” Opening

Drain: 3” Side Bottom Drain with Valve

Agitation System:

Wide Bottom & Side Sweep Agitator
Hub City Model 4510 Gear Drive (150:1 Ratio)
5HP 3/60/230-460V Motor

Additional Features:

Spray-Ball Cleaning System
Internal Baffle
(2) Thermowells
Mounted on Stainless Steel Legs
Equipped with Stainless Steel Ladder

Applications

Dairy & Beverage Processing – Milk, cream, yogurt, juice, plant-based beverages

Food Production – Soups, sauces, confectionery, prepared foods

Pharmaceutical & Biotech – Mixing and processing of sterile liquid formulations

Cosmetic & Personal Care – Lotions, creams, gels, and emulsions

Chemical & Specialty Processing – Precise temperature-controlled mixing applications

Compatible Products

Jacketed stainless steel mixing tanks
Sanitary-grade food & dairy processing equipment
High-performance industrial agitators & mixing vessels
Automated CIP (clean-in-place) processing tanks
