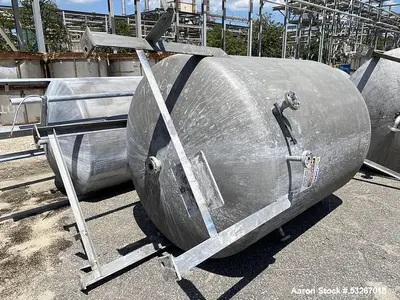

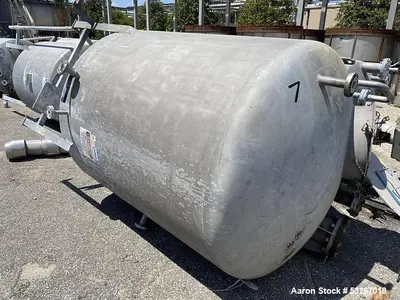

Circleville Metal Works Inc. approximately 1050 Gallon Tank

Used Circleville Metal Works Inc. approximately 1050 gallon 304 stainless steel vertical tank. 66" diameter X 72" high straight side. Internal rated ATMOS @ 200 F. S/N CMW-936. Dished top and bottom. Top fittings: 20" manway, (1) 1.5", (1) 4", and (1) 10". (1) 1.5" side middle inlet and (1) 1" and (1) 1.5" side bottom outlets. 2" center bottom drain. Mounted on (4) legs giving 22" clearance. Built 1975.

Used Equipment Facts About This Machine

Brand: Circleville Metal Works Inc.

Serial Number: CMW-936

Year Built: 1975

Condition: Used

Description
The Circleville Metal Works 1,050-Gallon Stainless Steel Vertical Tank is a durable and versatile storage vessel, designed for food, beverage, chemical, and industrial liquid storage applications. Constructed from 304 stainless steel, this tank offers excellent corrosion resistance and longevity.
With a 66" diameter and 72" straight side height, this vertical tank features a dished top and bottom, optimizing drainage and structural integrity. The tank is internally rated for atmospheric pressure (ATM) at 200°F, making it suitable for ambient and moderately heated liquid storage.
The unit is equipped with multiple top, side, and bottom fittings, including:

Top Fittings:

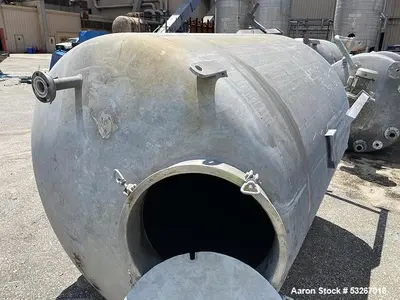

20" Manway
(1) 1.5" Opening
(1) 4" Opening
(1) 10" Opening

Side Fittings:

(1) 1.5" Middle Inlet
(1) 1" Bottom Outlet
(1) 1.5" Bottom Outlet

Bottom Fitting:

2" Center Bottom Drain

The tank is mounted on four sturdy legs, providing 22" of clearance for easy access and discharge.
Specifications

Capacity: 1,050 Gallons

Material: 304 Stainless Steel

Tank Orientation: Vertical

Tank Dimensions:

Diameter: 66"

Straight Side Height: 72"

Top & Bottom: Dished

Internal Rating: Atmospheric (ATM) @ 200°F

Fittings & Access Points:

Top: 20" Manway, (1) 1.5", (1) 4", (1) 10" Openings

Side: (1) 1.5" Middle Inlet, (1) 1" Bottom Outlet, (1) 1.5" Bottom Outlet

Bottom: 2" Center Drain

Mounting: Four Legs with 22" Clearance

Applications

Food & Beverage Processing – Bulk storage of dairy, juices, syrups, and liquid ingredients

Pharmaceutical & Biotech – High-purity liquid storage for formulations

Chemical Processing – Corrosion-resistant storage for industrial chemicals

Industrial Wastewater Treatment – Holding and treatment of process liquids

Oil & Petroleum Storage – Secure containment of industrial fluids

Compatible Products

Stainless steel storage and mixing tanks
Industrial-grade liquid containment vessels
High-volume food and pharmaceutical-grade processing tanks
Chemical and wastewater storage systems
