USED THERMO SCIENTIFIC HYCLONE

Description

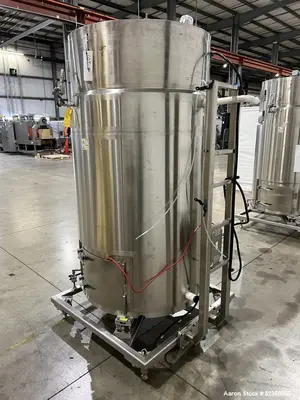

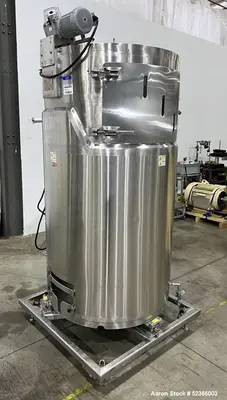

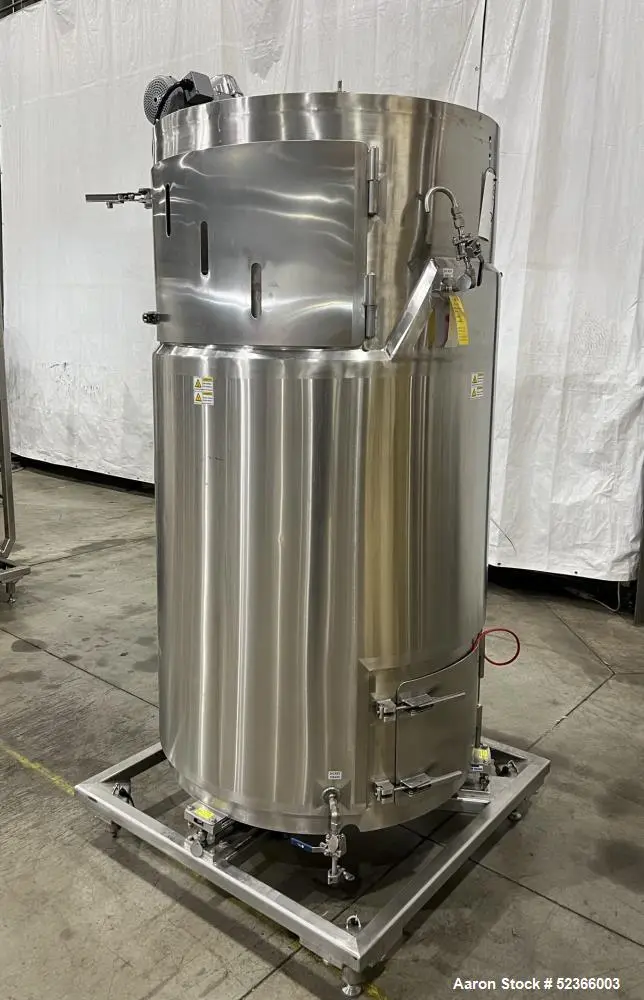

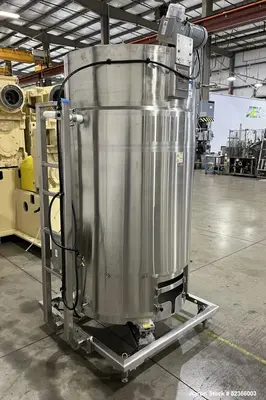

This Thermo Scientific HyClone bioreactor offers a 1000-liter capacity and is constructed with a robust stainless steel shell. Featuring an open top and flat bottom design, the unit is enhanced with a dimple jacket for superior thermal control. It measures approximately 38" in diameter with a 50" straight side, providing ample volume for cell culture or bioprocessing applications. Designed to operate within an ambient to 40 ± 0.1°C (104 ± 0.2°F) range, it maintains a precise 0.5 psi bag pressure. The system is driven by a Brother 3-phase induction motor (1/2 hp, 3/60/208-230/460V, 1720 rpm) with a 15:1 reduction ratio, ensuring efficient mixing and process control. The bioreactor is securely mounted on a stainless steel frame.

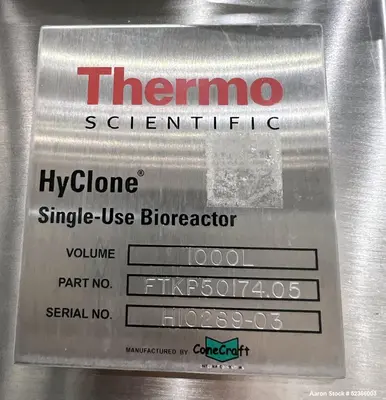

Serial#: H10289-03
Specifications

Capacity: 1000 Liters

Material: Stainless Steel

Design:

Open top
Flat bottom shell
Dimple jacket for enhanced thermal control

Dimensions: Approximately 38" Diameter x 50" Straight Side

Operating Temperature: Ambient to 40 ± 0.1°C (104 ± 0.2°F)

Bag Pressure: 0.5 psi

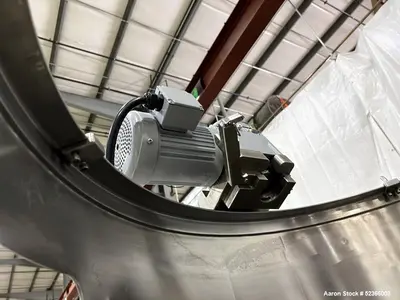

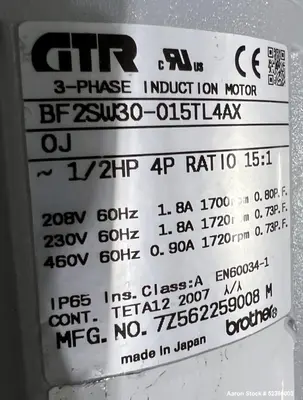

Motor: Brother 3-phase induction motor

1/2 hp, 3/60/208-230/460V, 1720 rpm
15:1 reduction ratio

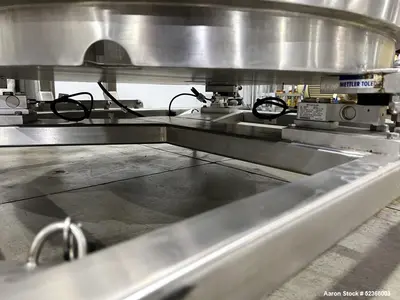

Mounting: Stainless Steel Frame

Serial Number: H10289-03

Applications
Ideal for bioprocessing and biopharmaceutical manufacturing, this bioreactor is designed for:

Cell culture and fermentation
Production of vaccines and monoclonal antibodies
Recombinant protein production
Biologics and advanced therapy manufacturing
Research and development in biotechnology

What Products Would This Be Used For

Vaccines
Monoclonal antibodies
Recombinant proteins
Cell-based therapies
Other biologics and bioprocessing products
