Used Amherst Approximately 75 Gallon 304L Stainless Steel Agitated Pressure Tank
Overview
Description

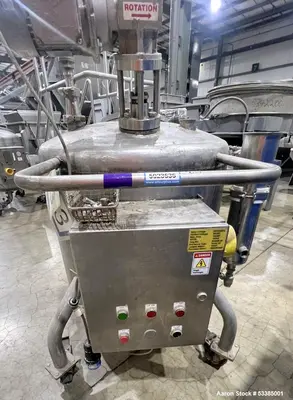

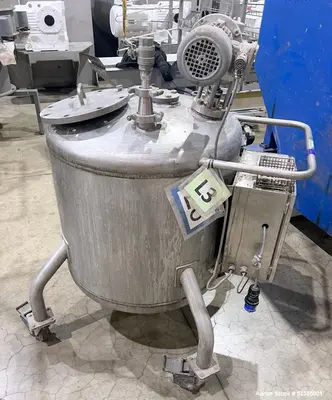

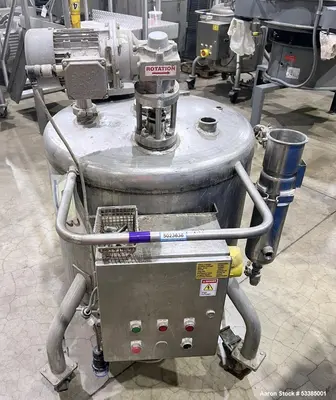

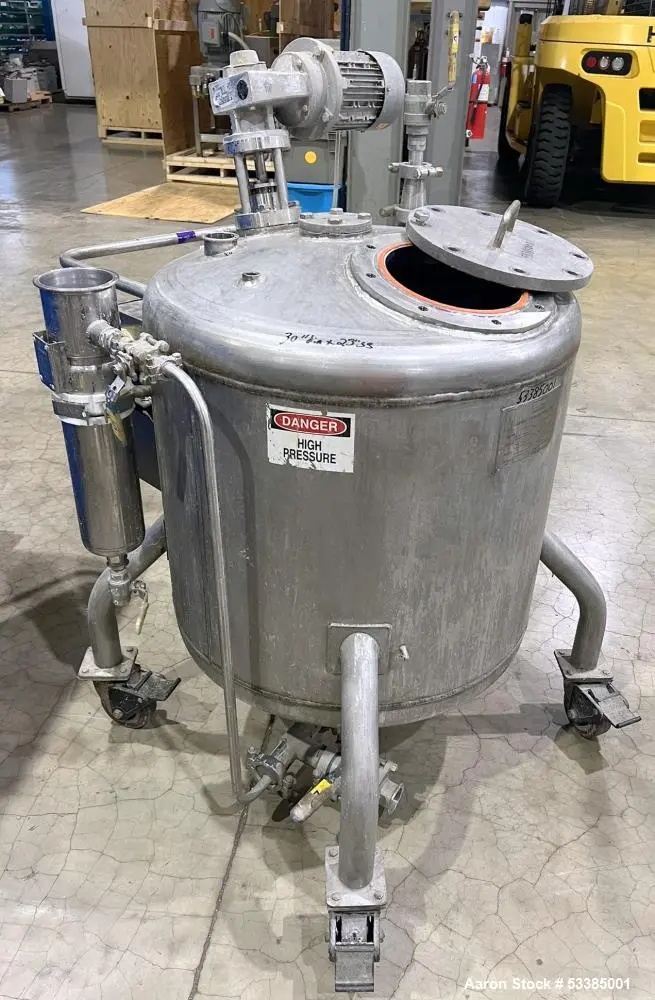

Used Amherst Stainless Steel Agitated Pressure Tank, Approximately 75 Gallon, 304L Stainless Steel, Vertical. Approximate 30" diameter x 22" straight side. Dished top and bottom heads. Internal rated 130 psi at -20 to 150 degrees F. Top entering 3-blade prop agitator, driven by a 0.5 HP, 3/60/230/460 volt, 1725 rpm gear motor, 5 to 1 ratio. Openings top: 8" handhole with cover, (2) 2", 1". 3" Center bottom outlet with manual ball valve. Mounted on (4) legs with casters. National Board# 1513, Serial# 1748, Built 2021. Previously used for raw materials used in the production of molded fiber products.
Specifications
Used Equipment Facts About This Machine
Information:
Manufacturer: Amherst
Type: Agitated Pressure Tank
Capacity: Approximately 75 Gallons
Material: 304L Stainless Steel
Orientation: Vertical
Dimensions: Approximate 30" diameter x 22" straight side
Heads: Dished top and bottom heads
Pressure Rating: Internal rated 130 psi at -20 to 150 degrees F.
Agitation:

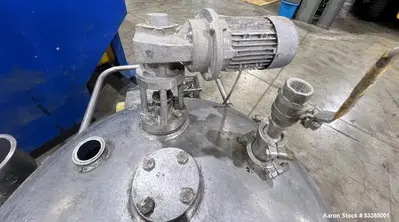

Top entering 3-blade prop agitator

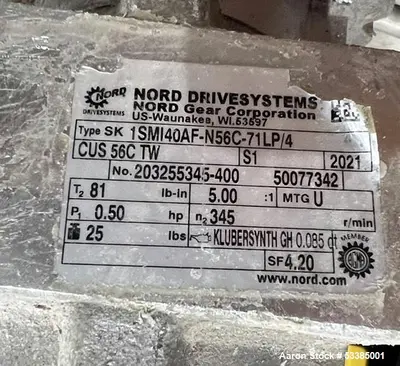

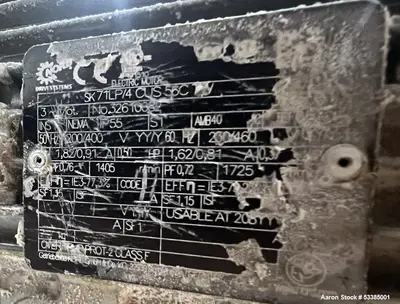

Driven by a 0.5 HP, 3/60/230/460 volt, 1725 rpm gear motor (5 to 1 ratio)
Openings:

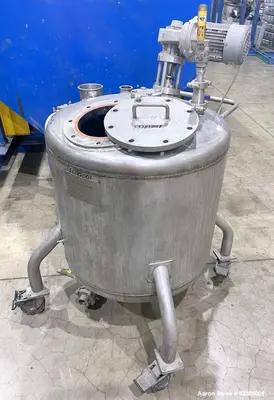

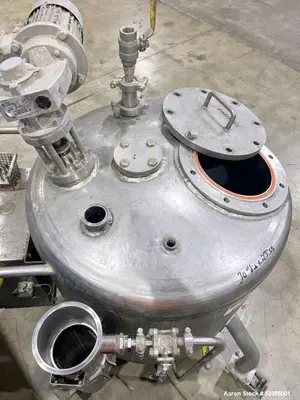

8" handhole with cover
(2) 2" openings
1" opening

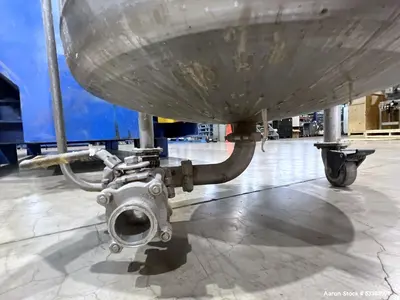

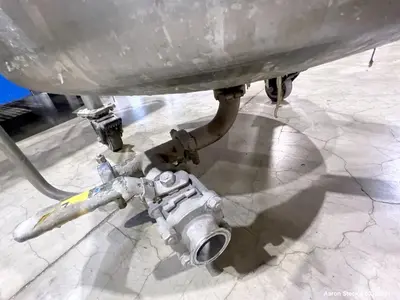

3" Center bottom outlet with manual ball valve
Mounting: Mounted on (4) legs with casters
Identification:

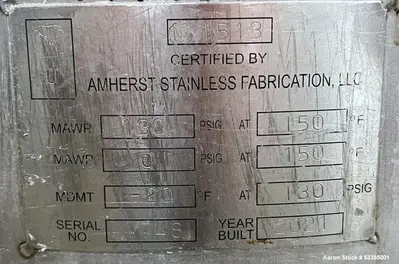

National Board#: 1513
Serial#: 1748
Built 2021
Applications:
Chemical Processing: Mixing, blending, and storage of various chemicals, including those requiring pressure.
Pharmaceutical Manufacturing: Processing and storage of pharmaceutical ingredients and products.
Food and Beverage: Mixing and holding of food-grade liquids, such as sauces, syrups, and beverages.
Other Industries: Potential applications in various industries where pressurized mixing and storage are required.
