USED LEE IND 250LDBT

Description

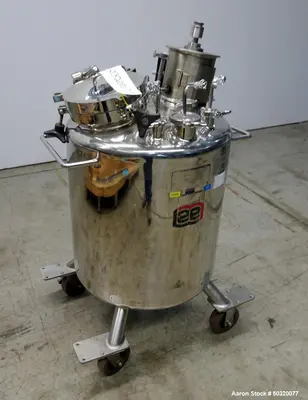

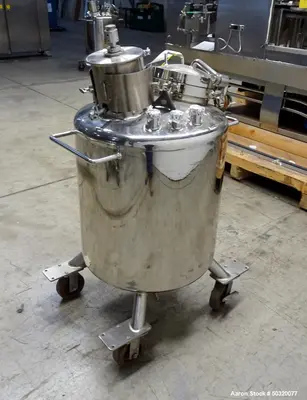

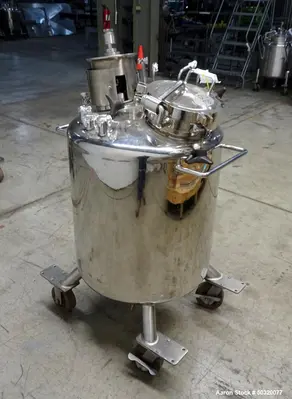

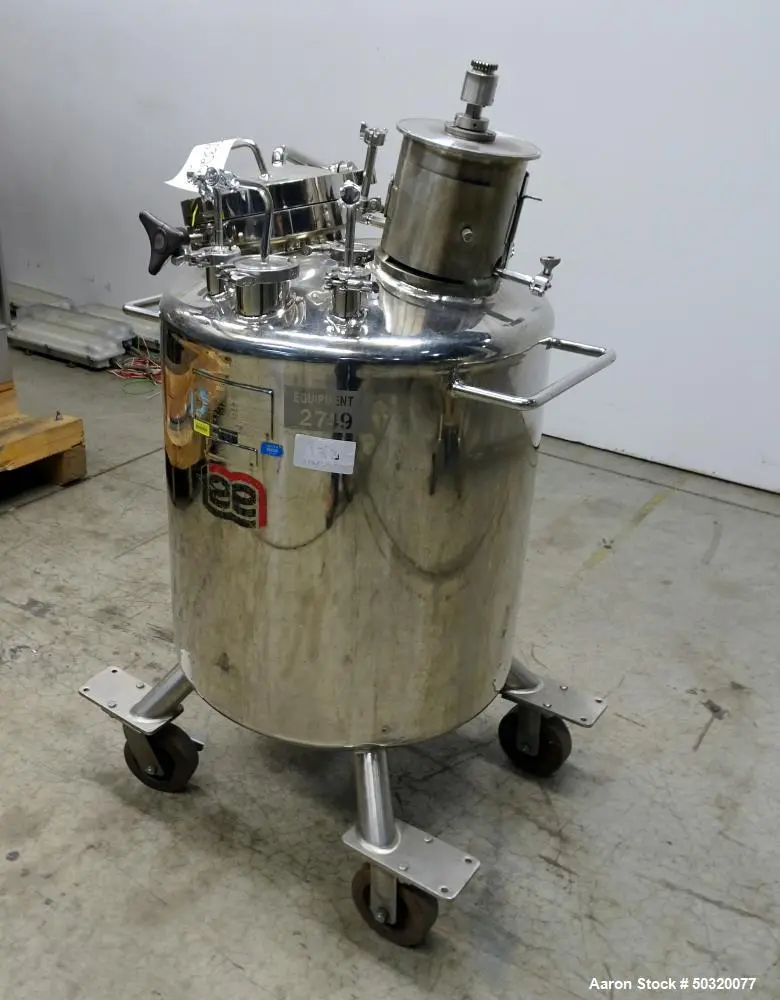

This used 250-liter pressurized mix tank from Lee Industries is built from 316L stainless steel, designed for high-performance industrial mixing applications. It features a dished top and bottom for improved mixing and drainage and has an approximate 26" diameter with a 25" straight side.

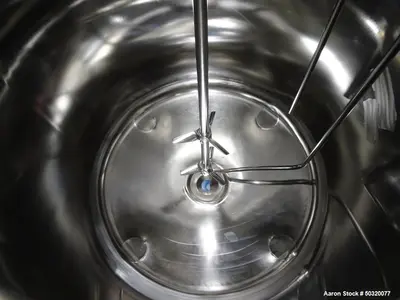

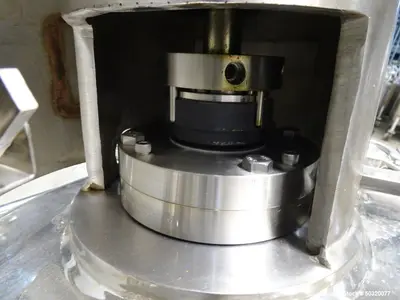

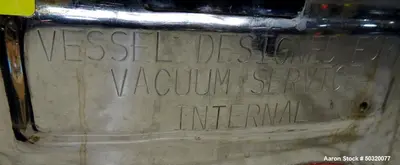

The tank is internally rated at 30 psi and can operate at temperatures ranging from -20°F to 300°F, with vacuum internal capability. It is equipped with a top-entering dual turbine agitator (motor/drive required but not included), making it an excellent choice for processes requiring consistent and controlled mixing.

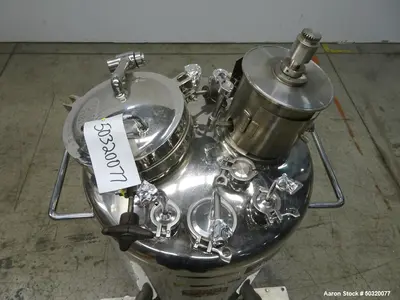

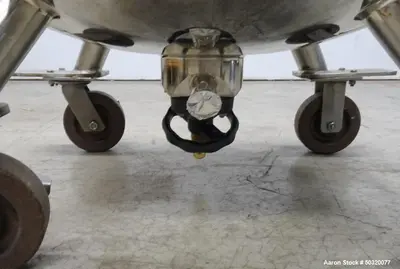

For easy access, the top of the tank features a 10" opening with cover, one 3" opening, and six 1-1/2" openings. The 1-1/2" center bottom outlet has an approximate discharge height of 5-1/2", ensuring efficient product flow. The unit is mounted on four legs with casters, allowing for easy mobility within a production facility.

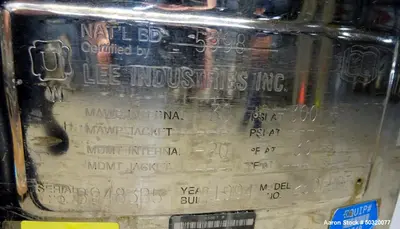

National Board#: 5998, Serial#: B9483B5, Built 1994
Specifications

Capacity: 250 Liters

Material: 316L Stainless Steel

Orientation: Vertical

Dimensions: Approx. 26" Diameter x 25" Straight Side

Design Features:

Dished top and bottom for enhanced processing efficiency

Internal pressure rating: 30 psi (-20°F to 300°F, vacuum internal)

Agitator:

Top-entering dual turbine agitator (motor/drive required, not included)

Top Openings:

10" opening with cover
1 opening at 3"
6 openings at 1-1/2" each

Outlet:

1-1/2" center bottom outlet

Discharge height: Approx. 5-1/2"

Mounting: Four legs with casters for mobility

Identification: National Board# 5998, Serial# B9483B5, Built 1994

Applications
This pressurized mix tank is ideal for a wide range of industrial applications, including:

Chemical processing and formulation

Pharmaceutical and biotech manufacturing
Laboratory-scale batch processing
Specialty chemical blending
Food and beverage processing
Industrial mixing operations requiring controlled pressure and temperature conditions

What Products Would This Be Used For?

Chemical compounds and solvents
Pharmaceutical formulations and emulsions
Biotech and fermentation processes
Food ingredients, flavorings, and extracts
Specialty chemicals and coatings
Industrial lubricants and oil-based formulations
