USED LEE IND 250LDBT

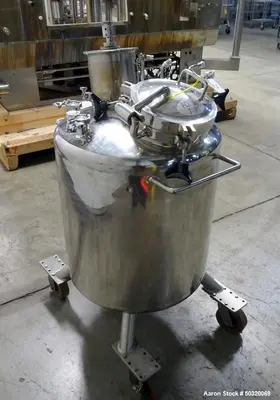

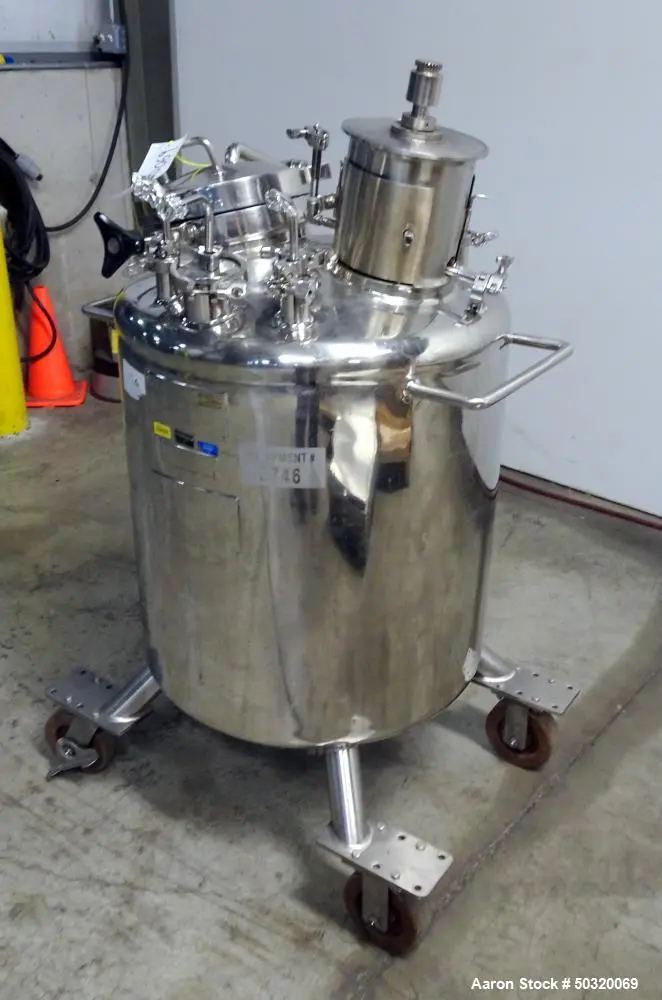

Used Lee Industries, Vertical Mix Tank 316L Stainless Steel, 250 Liter Capacity, Model 250 LDBT. Approximate 26" diameter x 25" straight side, dished top and bottom. Internal rated 30 psi at -20 to 300 degrees F, vacuum internal. Top entering dual turbine agitator, requires motor/drive. Openings top: 10" with cover, (1) 3", (6) 1-1/2". 1-1/2" Center bottom outlet, approximate 5-1/2" discharge height. Mount on (4) legs with casters. National Board# 6001, Serial# B9483B8, Built 1994.

Used Equipment Facts About This Machine
Description
This used 250-liter vertical mix tank is constructed from durable 316L stainless steel, making it ideal for demanding industrial applications. It features a dished top and bottom design for efficient mixing and drainage, with an approximate 26" diameter and 25" straight side. The tank is internally rated at 30 psi for temperatures ranging from -20°F to 300°F, with vacuum internal capability.
Equipped with a top-entering dual turbine agitator (motor/drive required, not included), this tank is designed for consistent and efficient mixing. The top has multiple access openings, including a 10" opening with cover, one 3" opening, and six 1-1/2" openings. The bottom features a 1-1/2" center outlet with a 5-1/2" discharge height, facilitating smooth product flow. The tank is mounted on four legs with casters, making it easy to move and position.

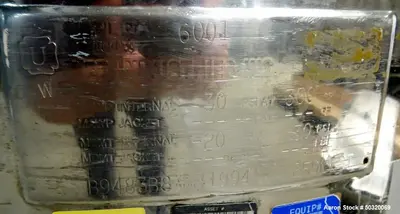

National Board#: 6001, Serial#: B9483B8, Built 1994
Specifications

Capacity: 250 Liters

Material: 316L Stainless Steel

Orientation: Vertical

Dimensions: Approx. 26" Diameter x 25" Straight Side

Design Features:

Dished top and bottom for improved drainage and processing

Internal pressure rating: 30 psi (-20°F to 300°F, vacuum internal)

Agitator:

Top-entering dual turbine agitator (motor/drive required, not included)

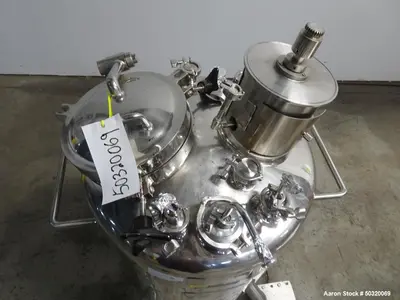

Top Openings:

10" opening with cover
1 opening at 3"
6 openings at 1-1/2" each

Outlet:

1-1/2" center bottom outlet

Discharge height: Approx. 5-1/2"

Mounting: Four legs with casters for mobility

Identification: National Board# 6001, Serial# B9483B8, Built 1994

Applications
This mix tank is well-suited for industrial applications, including:

Chemical processing and formulation

Pharmaceutical and biotech manufacturing
Laboratory-scale batch processing
Specialty chemical blending
Food and beverage processing
Industrial mixing operations requiring controlled pressure and temperature conditions

What Products Would This Be Used For?

Chemical compounds and solvents
Pharmaceutical formulations and emulsions
Biotech and fermentation processes
Food ingredients, flavorings, and extracts
Specialty chemicals and coatings
Industrial lubricants and oil-based formulations
