USED LEE IND 250LDBT

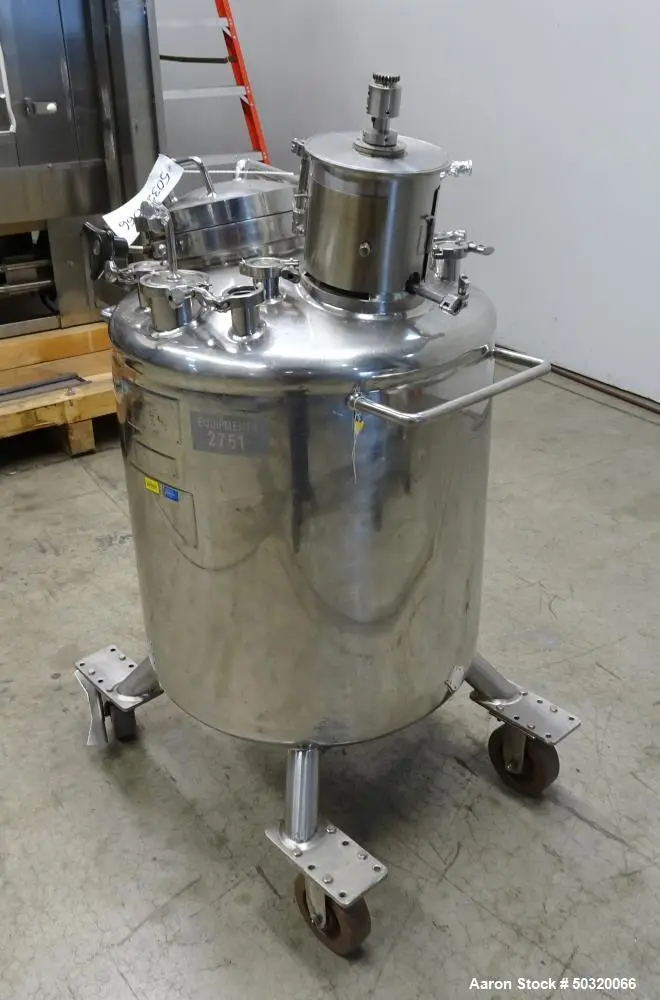

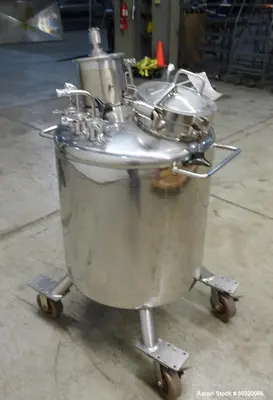

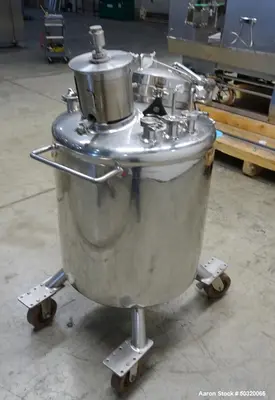

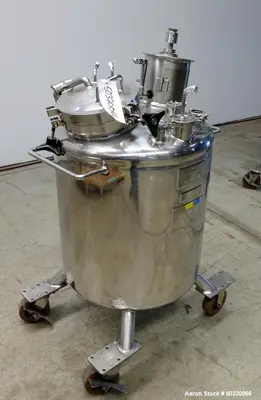

Used Lee Industries, Vertical 316L Stainless Steel Pressure Mix Tank, 250 Liter Capacity, Model 250 LDBT. Approximate 26" diameter x 25" straight side, dished top and bottom. Internal rated 30 psi at -20 to 300 degrees F, vacuum internal. Top entering dual turbine agitator, requires motor/drive. Openings top: 10" with cover, (1) 3", (6) 1-1/2". 1-1/2" Center bottom outlet, approximate 5-1/2" discharge height. Mount on (4) legs with casters. National Board# 5996, Serial# B9483B3, Built 1994.

Used Equipment Facts About This Machine
Description
This used 250-liter pressure mix tank features a robust 316L stainless steel construction in a vertical design. Unlike earlier models, this unit has an approximate 26" diameter and a 25" straight side with dished top and bottom for enhanced mixing and drainage. It is internally rated at 30 psi for temperatures ranging from -20°F to 300°F, with vacuum internal capability. Designed for efficient mixing, it comes with a top-entering dual turbine agitator (motor/drive not included) for improved performance. The tank's top includes a 10" opening with cover, one 3" opening, and six 1-1/2" openings for process connectivity. A 1-1/2" center bottom outlet provides an approximate 5-1/2" discharge height. The unit is mounted on four legs with casters for ease of mobility.
National Board#: 5996, Serial#: B9483B3, Built 1994
Specifications

Capacity: 250 Liters

Material: 316L Stainless Steel

Orientation: Vertical

Dimensions: Approximately 26" Diameter x 25" Straight Side

Design Features:

Dished top and bottom

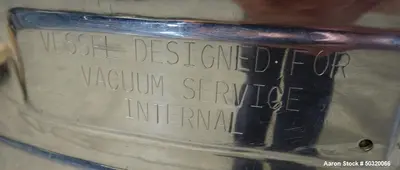

Internal pressure rating: 30 psi at -20°F to 300°F (vacuum internal)

Agitator:

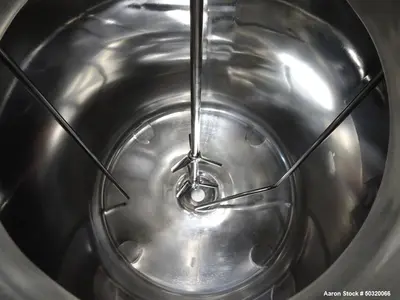

Top-entering dual turbine agitator (motor/drive required, not included)

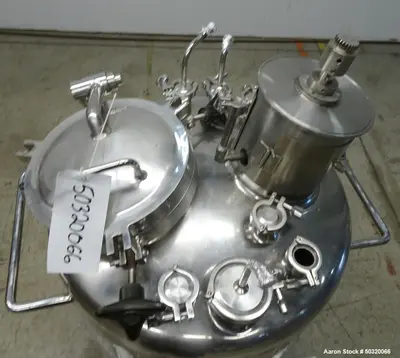

Top Openings:

10" opening with cover
1 opening at 3"
6 openings at 1-1/2" each

Outlet:

1-1/2" center bottom outlet
Discharge height: Approximately 5-1/2"

Mounting: On 4 legs with casters

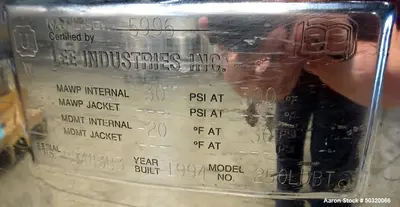

Identification: National Board# 5996, Serial# B9483B3, Built 1994

Applications
This pressure mix tank is ideal for:

Chemical and process mixing
Pharmaceutical and biotech formulations
Laboratory-scale batch processing
Specialty chemical blending
Industrial mixing operations requiring controlled pressure conditions
