USED LEE IND 200LDBT

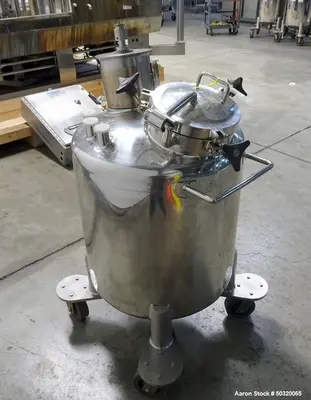

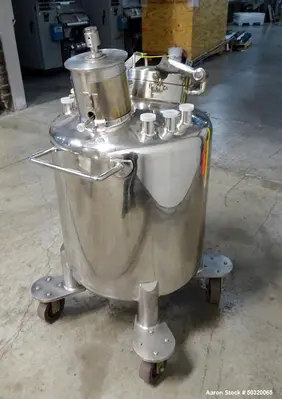

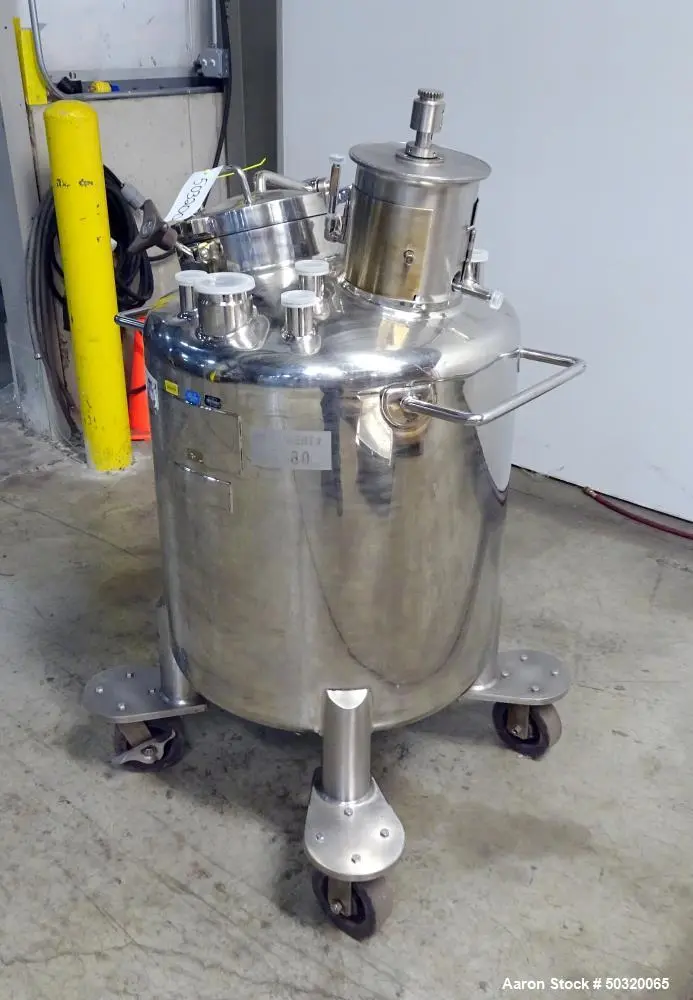

Used Industrial Vertical Mix Tank, Lee Industries, 250 Liter Capacity, Model 200 LDBT, 316L Stainless Steel. Approximate 26" diameter x 24" straight side, dished top and bottom. Internal rated 30 psi at -20 to 300 degrees F, vacuum internal. Top entering dual 3-blade turbine agitator, requires motor/drive. Openings top: 10" with cover, (1) 3", (6) 1-1/2". 1-1/2" Center bottom outlet, approximate 5-1/2" discharge height. Mounted on (4) legs with casters. National Board# 8544, Serial# 17569-1-5, Built 2001.

Used Equipment Facts About This Machine
Description
This used 250-liter industrial mix tank from Lee Industries is constructed from 316L stainless steel, making it ideal for industrial, pharmaceutical, and food processing applications. It features a vertical orientation with a dished top and bottom, allowing for efficient product flow and thorough mixing.

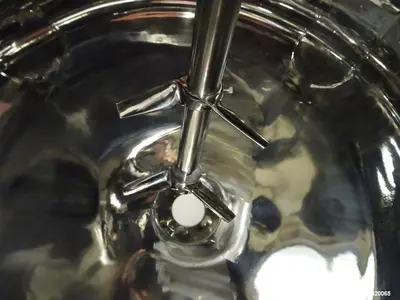

The tank is internally rated at 30 psi and is designed to handle temperatures ranging from -20°F to 300°F, with vacuum internal capability. It includes a top-entering dual 3-blade turbine agitator (motor/drive required but not included), ensuring effective and consistent product mixing.
The top of the tank is equipped with multiple openings for process flexibility, including a 10" opening with cover, one 3" opening, and six 1-1/2" openings. The 1-1/2" center bottom outlet provides an approximate 5-1/2" discharge height, facilitating easy product transfer. The tank is mounted on four legs with casters, making it easy to move and position as needed.

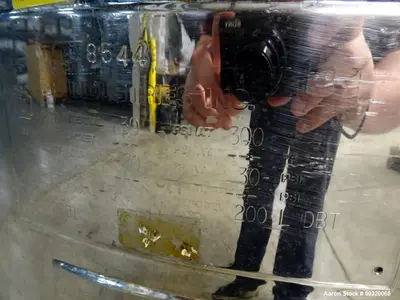

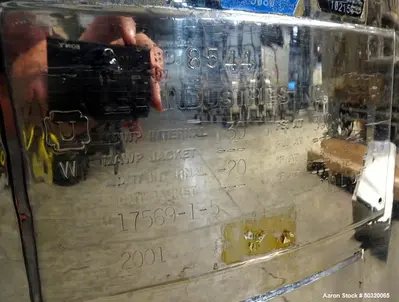

National Board#: 8544, Serial#: 17569-1-5, Built 2001
Specifications

Capacity: 250 Liters

Material: 316L Stainless Steel

Orientation: Vertical

Dimensions: Approx. 26" Diameter x 24" Straight Side

Design Features:

Dished top and bottom for enhanced processing efficiency

Internal pressure rating: 30 psi (-20°F to 300°F, vacuum internal)

Agitator:

Top-entering dual 3-blade turbine agitator (motor/drive required, not included)

Top Openings:

10" opening with cover
1 opening at 3"
6 openings at 1-1/2" each

Outlet:

1-1/2" center bottom outlet

Discharge height: Approx. 5-1/2"

Mounting: Four legs with casters for mobility

Identification: National Board# 8544, Serial# 17569-1-5, Built 2001

Applications
This industrial mix tank is ideal for a wide range of industrial applications, including:

Chemical processing and formulation

Pharmaceutical and biotech manufacturing
Laboratory-scale batch processing
Specialty chemical blending
Food and beverage processing
Industrial mixing operations requiring controlled pressure and temperature conditions

What Products Would This Be Used For?

Chemical compounds and solvents
Pharmaceutical formulations and emulsions
Biotech and fermentation processes
Food ingredients, flavorings, and extracts
Specialty chemicals and coatings
Industrial lubricants and oil-based formulations
