USED LEE IND 200LDBT

Description

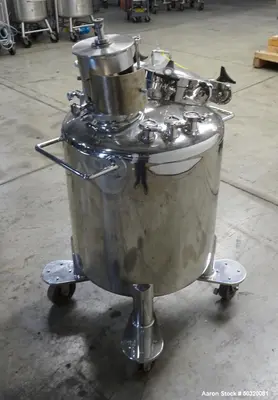

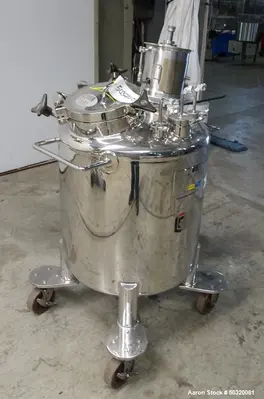

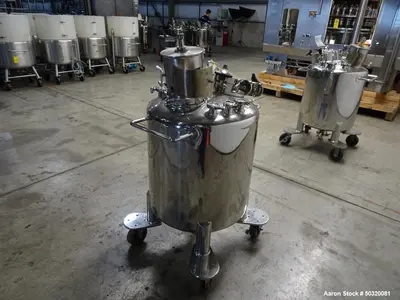

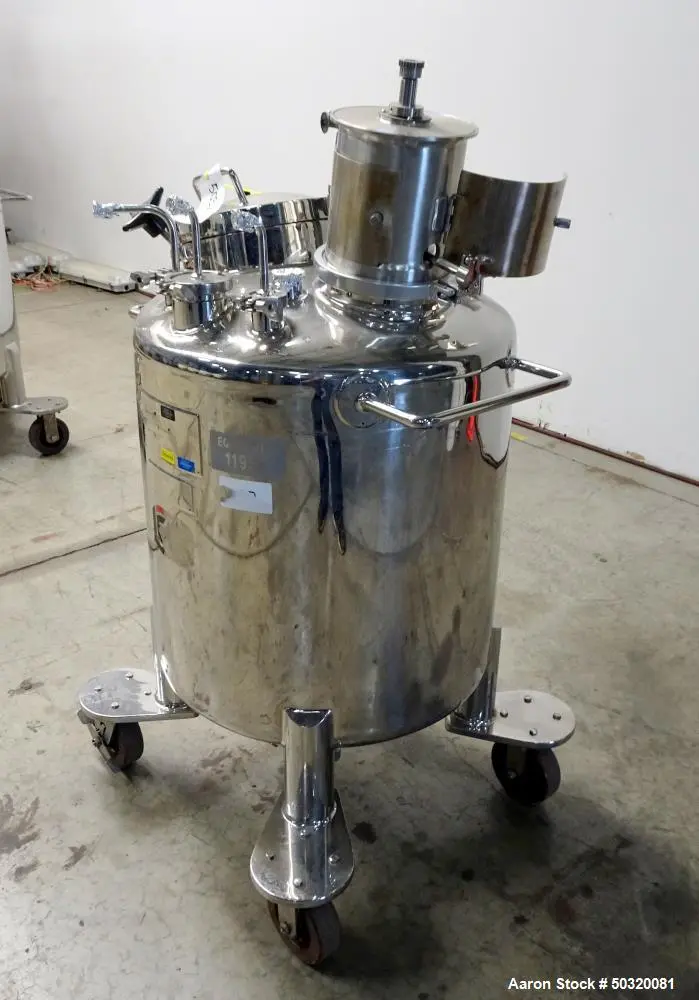

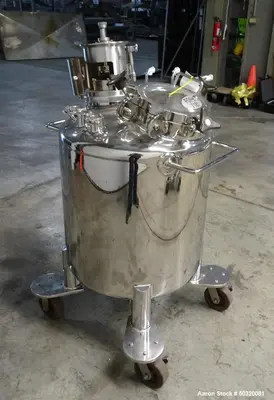

This used Lee Industries 200-liter industrial pressure mix tank is designed for high-performance mixing and processing in demanding industrial applications. Constructed from 316L stainless steel, this vertical mixing vessel ensures corrosion resistance, durability, and compliance with sanitary processing standards.
The tank features a dished top and bottom for optimized fluid flow and easy cleaning. It is internally rated for 30 psi at temperatures from -20°F to 300°F, with vacuum capability, making it suitable for a wide range of mixing, blending, and reaction processes.

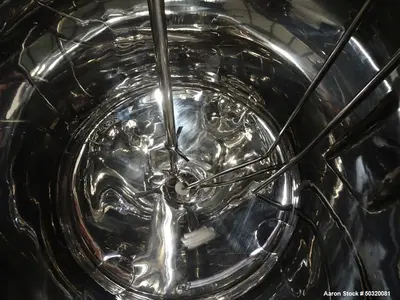

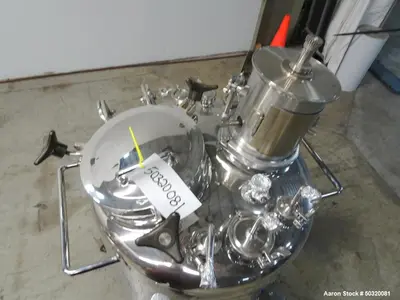

Equipped with a top-entering dual 3-blade turbine agitator, this tank enables efficient material dispersion and uniform mixing. The agitator requires a separate motor and drive for full functionality. Multiple top openings, including a 10-inch cover, one 3-inch port, and six 1-1/2-inch ports, allow for seamless ingredient addition and process integration. The 1-1/2-inch center bottom outlet is positioned at 5-1/2 inches discharge height for smooth product flow.
For operational flexibility, the tank is mounted on four legs with casters, ensuring easy mobility and reconfiguration within production environments.
Specifications

Capacity: 200 liters

Material: 316L Stainless Steel

Orientation: Vertical

Tank Dimensions:

Diameter: 26 inches

Straight Side Height: 24 inches

Discharge Height: Approx. 5-1/2 inches

Top Features:

Dished top with multiple openings:

10” with cover
(1) 3” opening
(6) 1-1/2” openings

Bottom Features:

Dished bottom

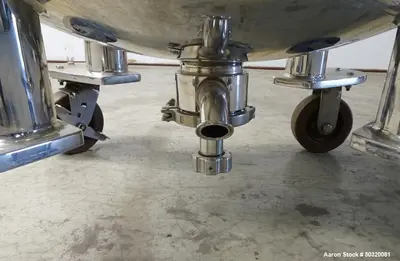

1-1/2” center bottom outlet

Pressure Rating:

Internal: 30 psi (-20°F to 300°F)

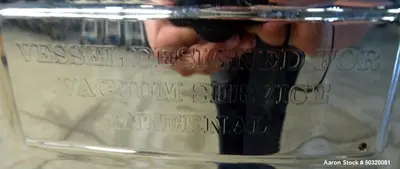

Vacuum-rated

Agitator:

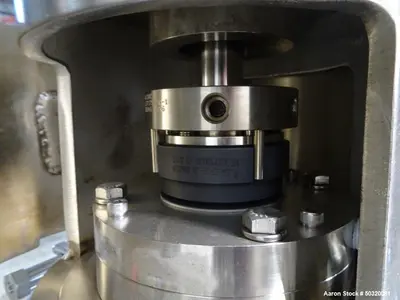

Dual 3-blade turbine (motor/drive required)

Mobility:

Mounted on (4) legs with casters for ease of movement

Applications
This industrial-grade stainless steel pressure mix tank is ideal for use in food processing, pharmaceuticals, chemicals, and cosmetics. Typical applications include:

Mixing, blending, and homogenization of liquids under vacuum or pressure
Batch processing of temperature-sensitive or viscous materials
Chemical reactions requiring controlled conditions
Storage and handling of regulated substances

Compatible Products

Food & beverage: Sauces, syrups, dairy-based formulations

Pharmaceuticals: Liquid medications, chemical solutions

Cosmetics & personal care: Creams, gels, emulsions

Industrial chemicals: Adhesives, coatings, and specialty compounds

🧰 Applications

This pressure mix tank is ideal for industries and processes involving:

Pharmaceuticals

Chemicals

Personal Care / Cosmetics

Food & Beverage

Laboratory-scale Production

Nutraceuticals

Adhesives and Sealants

Fermentation

Pilot Plant Testing

Slurry or Paste Mixing

📦 Used For (Products)

Creams, lotions, gels

Liquid chemicals or reagents

Viscous food products

Suspensions and emulsions

Batch samples and formulations

Polymer solutions

Drug formulations

Flavorings and concentrates

Paste-like adhesives

Low-pressure fermentation
