USED LEE IND 200LDBT

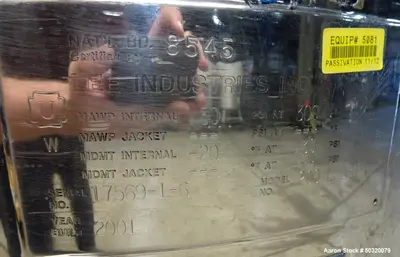

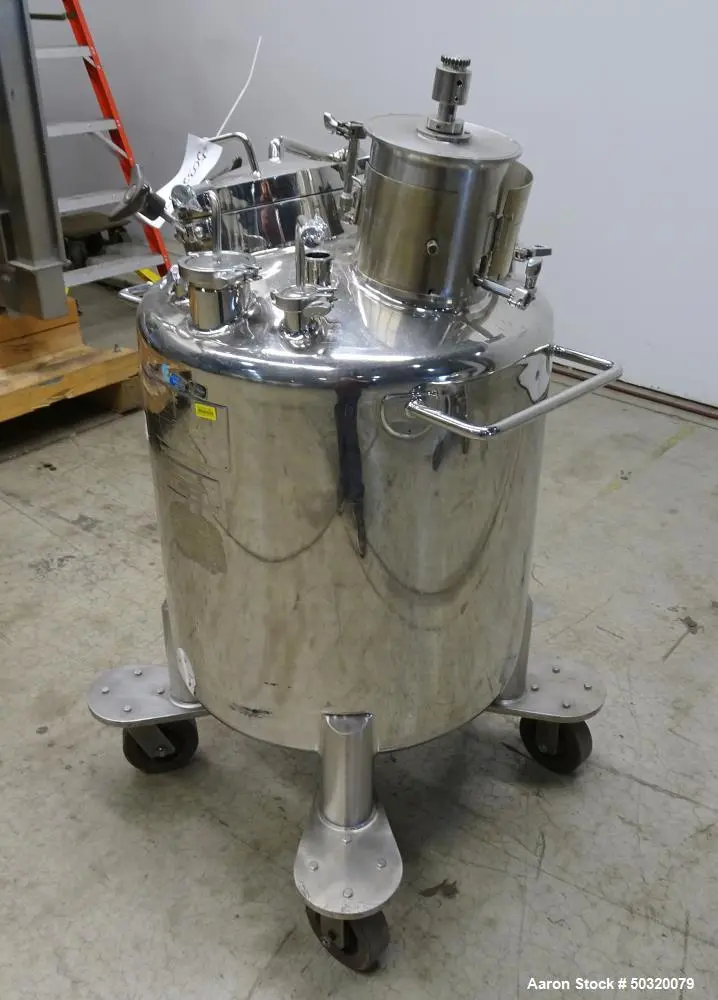

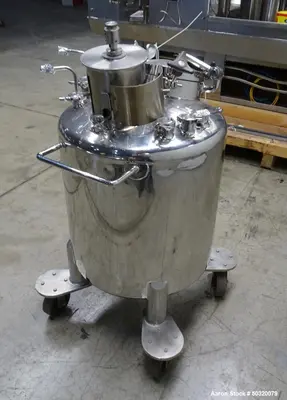

Used 316L Stainless Steel Lee Pressure Mix Tank, 200 Liter, Model 200 LDBT, Vertical. Approximate 26" diameter x 24" straight side, dished top and bottom. Internal rated 30 psi at -20 to 300 degrees F, vacuum internal. Top entering dual 3-blade turbine agitator, requires motor/drive. Openings top: 10" with cover, (1) 3", (6) 1-1/2". 1-1/2" Center bottom outlet, approximate 5-1/2" discharge height. Mounted on (4) legs with casters. National Board# 8545, Serial# 17569-1-6, Built 2001.

Used Equipment Facts About This Machine
Description
This used Lee Industries 200-liter pressure mix tank is constructed from 316L stainless steel, ensuring superior durability, corrosion resistance, and compliance with sanitary processing standards. The vertical tank features a dished top and bottom, optimizing fluid dynamics for efficient mixing and drainage. With an internal pressure rating of 30 psi (-20°F to 300°F) and vacuum capabilities, it is ideal for a variety of industrial mixing and processing applications.

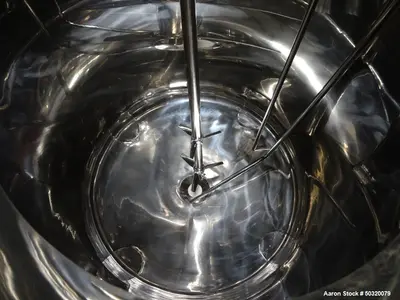

The unit comes equipped with a top-entering dual 3-blade turbine agitator, though a motor and drive are required for full operation. Multiple top openings, including a 10-inch cover, one 3-inch opening, and six 1-1/2-inch openings, allow for easy product addition and process integration. The 1-1/2-inch center bottom outlet is designed for efficient discharge, positioned at approximately 5-1/2 inches in height. For added convenience, the tank is mounted on four legs with casters, ensuring ease of movement and flexibility in production environments.
Specifications

Capacity: 200 liters

Material: 316L Stainless Steel

Orientation: Vertical

Tank Dimensions:

Diameter: 26 inches

Straight Side Height: 24 inches

Discharge Height: Approx. 5-1/2 inches

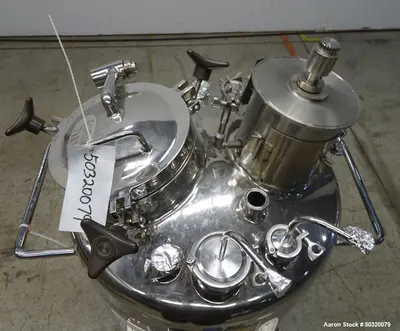

Top Features:

Dished top with multiple openings:

10” with cover
(1) 3” opening
(6) 1-1/2” openings

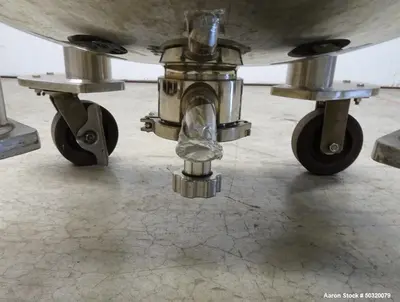

Bottom Features:

Dished bottom
1-1/2” center bottom outlet

Pressure Rating:

Internal: 30 psi (-20°F to 300°F)
Vacuum rated

Agitator:

Dual 3-blade turbine (motor/drive required)

Mobility: Mounted on (4) legs with casters

Applications
This Lee Industries pressure mix tank is ideal for food, pharmaceutical, chemical, and cosmetic industries, including:

Mixing and blending liquids under vacuum or pressure
Batch processing of temperature-sensitive materials
Storage and handling of viscous or volatile compounds
Emulsification, dissolution, and homogenization in industrial processes

Compatible Products

Food and beverage formulations (sauces, syrups, dairy-based products)
Pharmaceutical compounds and liquid medications
Cosmetic and personal care products (creams, lotions, gels)
Chemical solutions, adhesives, and coatings
