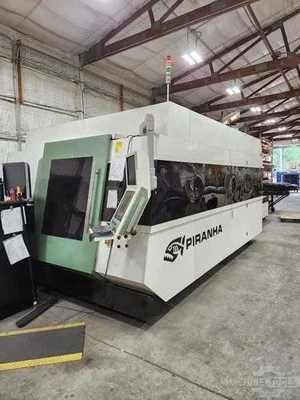

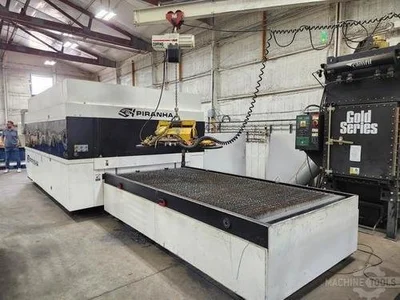

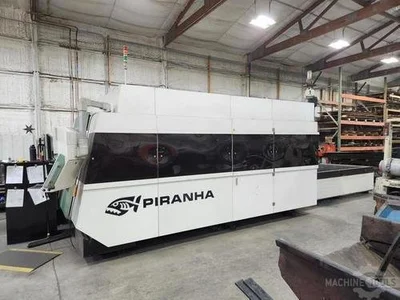

USED PIRANHA L-510

Brand – PIRANHA Model – L-510 Type – Laser Cutters Year – 2018 Condition – Used – Excellent

Sheet-W: 60″
Sheet-L: 120″
Wattage: 2000 w

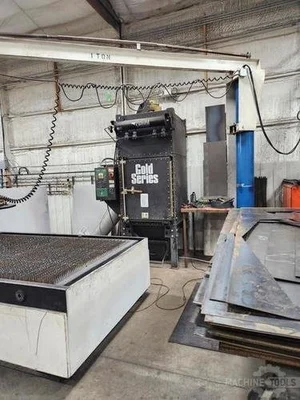

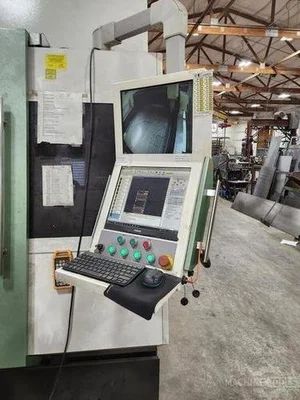

Cutting Area: 61.5″ x 122″ Chiller: Included Positioning System: Helical rack and pinion Maximum Travel Rate: 3,150 IPM (80 m/min) per axis Control: Windows 10 CNC with Cypcut Programming Software: ProNEST® LT Unlimited Red Diode Laser Pointer Automatic Lubrication System with timer Automatic Cutting Gas Control with proportional valve Nozzle Cleaner

Multi-format file import (AI, DXF, PLT, Gerber, LXD, and standard G-code) Automatic file optimization (duplicate removal, open segment connection, contour detection, machining sequence setup) Advanced graphic editing (zoom, translate, mirror, rotate, align, replicate, combine) Cutting enhancements (lead lines, seam compensation, micro-joints, bridges, inner/outer contour cutting) Automatic contour recognition with compensation direction and lead line verification Curve processing (split, merge, smooth, text-to-curve, part combine/explode) Automatic nesting with common line cutting and remnant nesting Manual nesting via array function Flexible sorting and grouping for optimized cutting sequences Cutting sequence preview and fly cutting setup Multiple piercing methods (segmented, incremental, pre-pierce, group pre-pierce) Adjustable process parameters (laser power, frequency, gas, pressure, peak power, delay, cut height) Material library for saving and reusing process parameters Breakpoint memory with resume cutting capability Manual position resume during stop or pause Intersecting line cutting capability High-precision edge detection methods Remote system control via wireless operator and Ethernet
