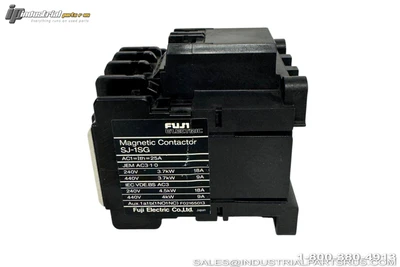

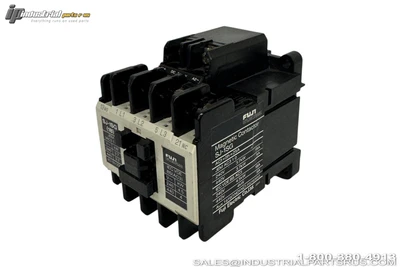

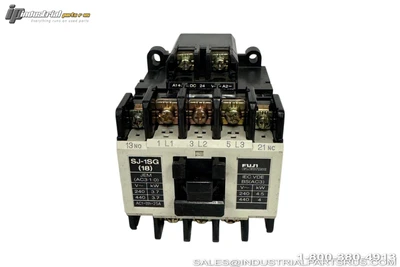

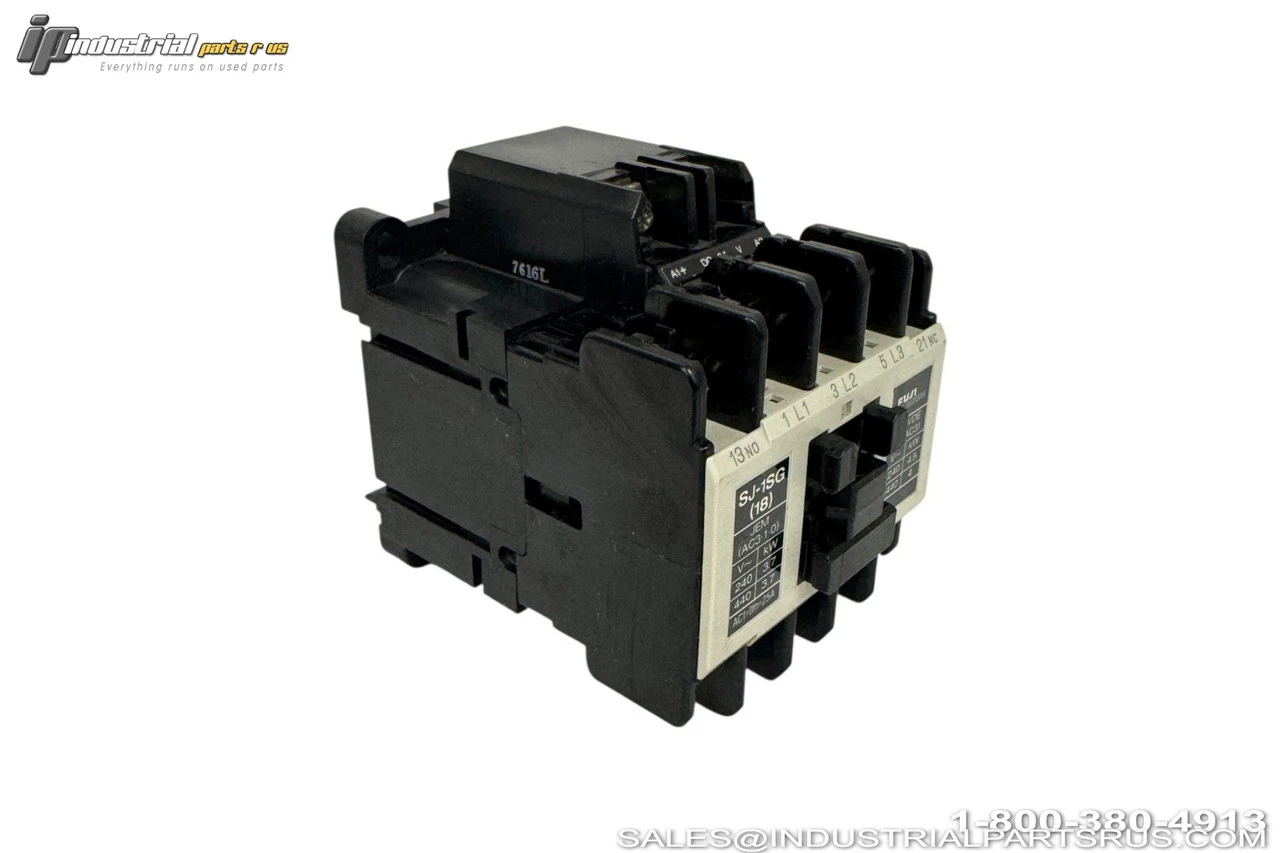

USED FUJI ELECTRIC SJ-1SG

The Fuji Electric SJ-1SG is a high-sensitivity DC operated magnetic contactor designed for semiconductor output compatibility. This discontinued model features low power consumption and can directly interface with PLC transistor outputs without requiring interface relays.
Specification
Value
Brand
Fuji Electric
Model/Part Number
SJ-1SG
Product Type
DC Operated Magnetic Contactor
Coil Voltage
24VDC
Continuous Current
25A
Motor Capacity 220-240V
4.5kW / 18A
Motor Capacity 380-440V
4kW / 9A
Auxiliary Contacts
2NO, 1NO+1NC
Rated Isolation Voltage
500V AC
Power Consumption
2.4W
Mounting
DIN Rail / Screw Mount
Standards Compliance
EN60947-4-1, IEC60947-4-1
Frame Size
1SG
Status
Discontinued by Manufacturer
We warranty all items for 30 days from date of purchase.

SKU: AI0917
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: DIN Rail/Screw Mount
Current Rating: 25A
Material: Silver Alloy
Manufacturer: Fuji Electric
Enclosure Type: Open Type
Part Number: SJ-1SG
Series: SJ
Shelf: K-3
Model: SJ-1SG
Coil Voltage: 24VDC
Horsepower: 6 HP
MPN: SJ-1SG
Type: Contactor
