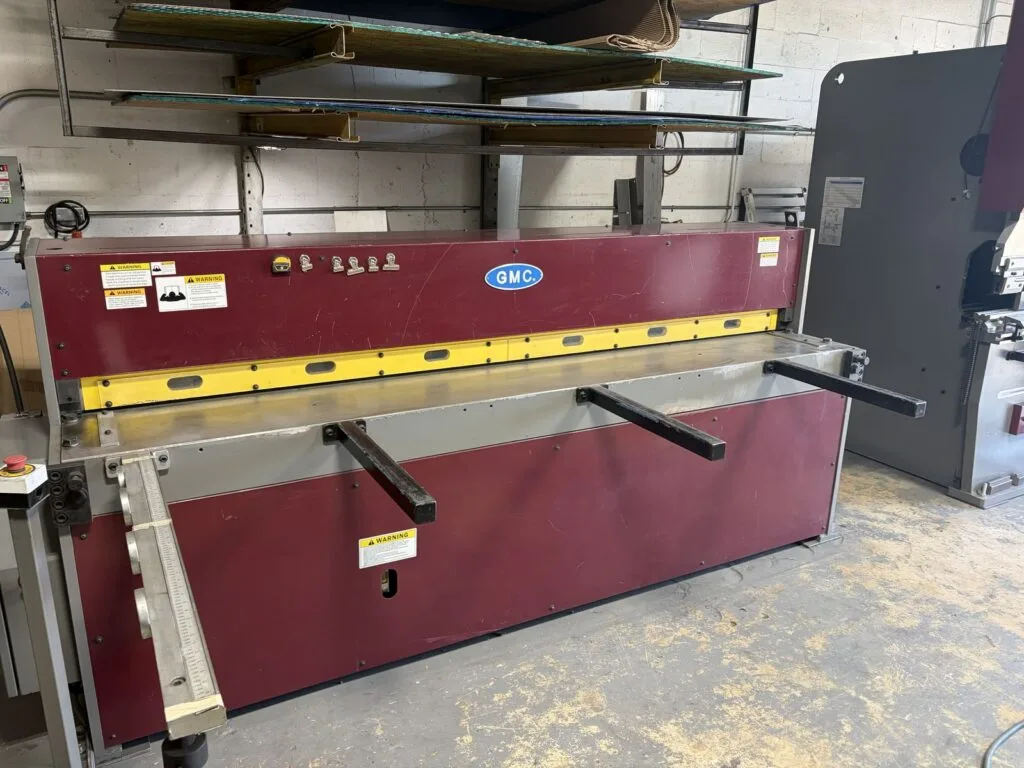

GMC HS-0810MD 8' x 10 Gauge Deluxe Hydraulic Shear
| Max Gauge | 10 gauge | 10 gauge |
| Length of Blade | 8' | 2,438.4 mm |
| Back Gauge | 26" | 660.4 mm |
| Power | 5.5 hp | 4.1 kW |
| SPM | 20 strokes/min. | 20 strokes/min. |
General Info
Stock #: 131260011
Location: FL
Brand: GMC
Model: HS-0810MD
Year: 2022
Approx. Shipping Weight: 6,500 lbs
Approx. Shipping Dimensions: 120" x 45" x 60"
Loading Fee: Rigging Required
Specifications
Cutting Capacity Mild Steel: 8' x 10 Ga
Cutting Capacity Stainless Steel: 8' x 14 Ga
Blade Length: 8' 2"
Strokes Per Minute: 14-18
Throat Depth: 16"
Worktable Height: 30-1/2"
Front Support Arm: 24"
Manual Back Gauge: 26"
Blade Rake Angle: 1.5
Equipped With
26" manual back gauge with inch/metric dual scale & one side operated hand wheel, 60" long squaring arm with inch / mm scale, 2 each 24" front support arms, 2 each 14" Side gauges with inlaid inch/metric dual scale, Spring independent hold-downs, Full length finger guard
Additional Info
Machine can be demonstrated upon request.
