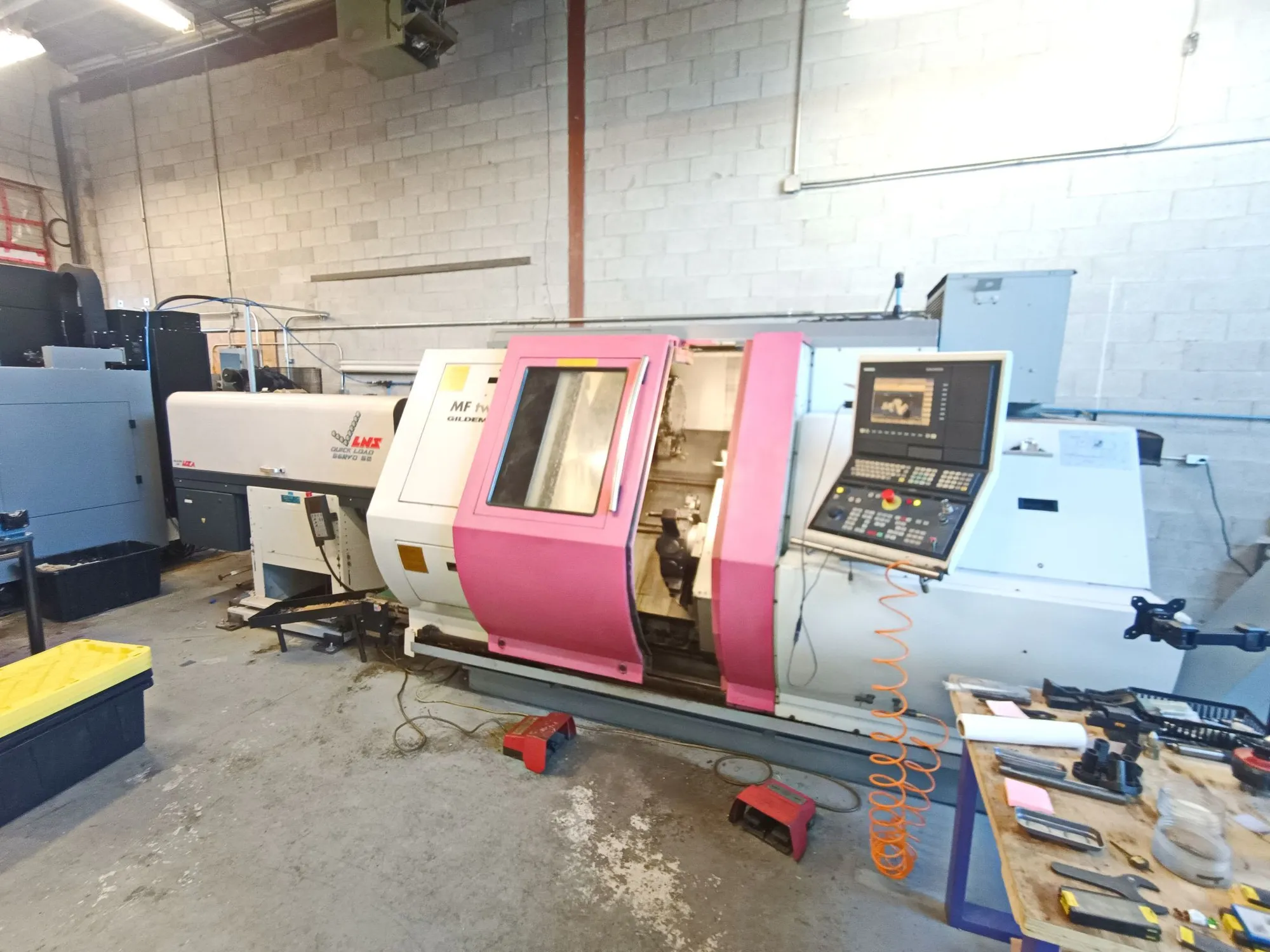

USED 2000 GILDEMEISTER MF TWIN 65
USD $21,500.00
Overview
Description
2000 Gildemeister MF Twin 65 Multi-Axis CNC Lathe, Twin Turret, Sub-Spindle, Y-Axis, C-Axis, Live Tooling, LNS Quick Load S2 Bar Feeder, Chip Conveyor, Parts Catcher, Additional Tooling
Specifications
| Max Swing | 9.45" | 240.03 mm |
|---|---|---|
| Turning Dia | 7.87" | 199.9 mm |
| Chuck Size (Main) | 8" | 203.2 mm |
| Chuck Size (Sub) | 8" | 203.2 mm |
| Bar Capacity (Main) | 2.56" | 65.024 mm |
| Bar Capacity (Sub) | 1.65" | 41.91 mm |
| Spindle Bore (Main) | 3.11" | 78.994 mm |
| Spindle Bore (Sub) | 2.2" | 55.88 mm |
| Power (Main) | 37.5 hp | 28 kW |
| Power (Sub) | 24 hp | 17.9 kW |
| Power (Milling Tool) | 9.4 hp | 7 kW |
| Max RPM (Main) | 5,000 RPM | 5,000 RPM |
| Max RPM (Sub) | 6,300 RPM | 6,300 RPM |
| Max RPM (Live Tooling) | 4,200 RPM | 4,200 RPM |
| X1/X2-Axis Travel | 7.48" | 189.99 mm |
| Y-Axis Travel | ±1.57" | ±1.57" |
| Z1/Z2-Axis Travel | 21.85" | 554.99 mm |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| Turret Capacity (Upper) | 12 | 12 |
| Turret Capacity (Lower) | 12 | 12 |
| Made In | Germany | Germany |
| Control | CNC (Siemens Sinumerik) | CNC (Siemens Sinumerik) |
| Dimensions | 188" X 87" X 77" | 188" X 87" X 77" |
| Weight | 14,330 lb | 14,330 lb |
Equipped With
Twin turret
Sub-spindle
Y-axis
C-axis
Live tooling
LNS quick load s2 bar feeder
Chip conveyor
Parts catcher
Assortment of tooling/tool holders
