Used DCI 316L Stainless Steel Jacketed Tank 8,500 Liter Vertical Vessel

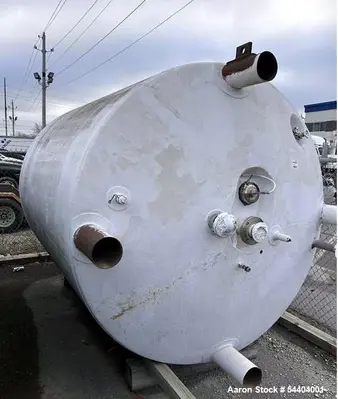

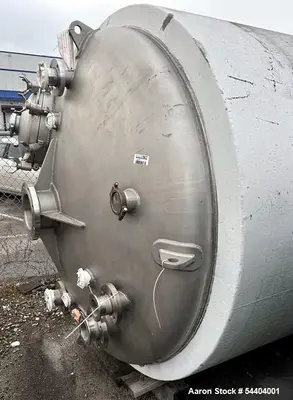

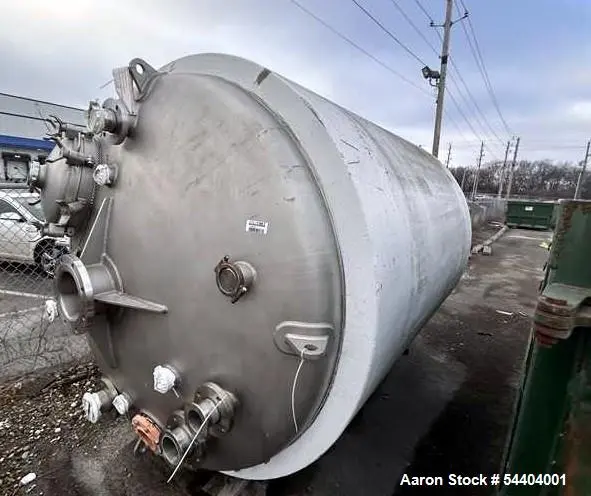

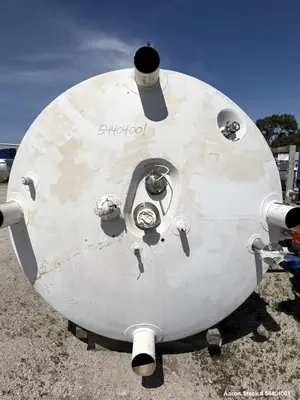

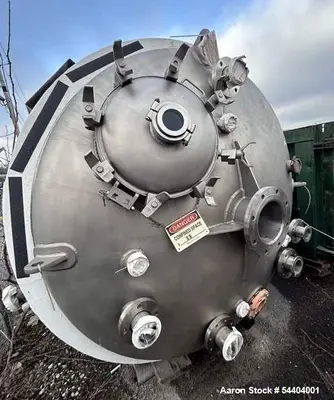

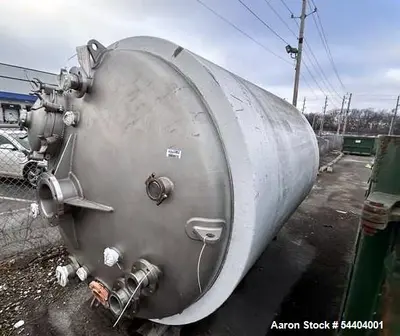

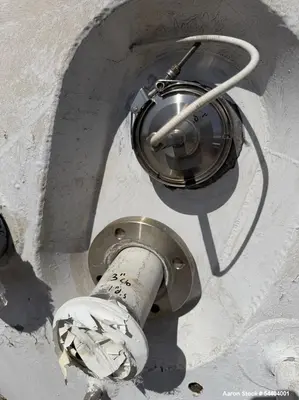

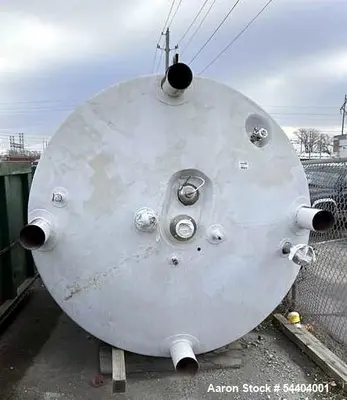

Used DCI Stainless Steel Jacketed Tank, Approximately 8,500 liter (2,246 gallon) Capacity. 316L stainless steel. Approximately 76" diameter x 102" straight side, dished top and bottom. Internal rated MAWP 50/FV PSI at 350 degrees F with MDMT -20 degrees F at 53/FV PSI, with full vacuum capability. Jacket rated 100/FV PSI at 350 degrees F with MDMT -20 degrees F at 150/FV PSI, allowing heating or cooling of product. Openings Top: 18" manway with 3" sight glass, 8" top center, 4" sight glass, (2) 4", (8) 3". 4" Center bottom outlet. (3) Internal baffles. Insulation with carbon steel sheathing. Top lifting lugs. Built in 1989, Serial# 90PH39619. National Board# 1499. Legs cut off approximately even with the bottom outlet. Tank measures approximately 90" outside diameter and 144" overall height, with an approximate shipping weight of 2,500 lbs. Vessel is non-agitated and suitable for a variety of processing or storage applications..

Used Equipment Facts About This Machine
Manufacturer: DCI
Capacity: Approx. 8,500 Liters (2,246 Gallons)
Material: 316L Stainless Steel
Orientation: Vertical
Condition: Used
Manufacturer Information
DCI, Inc. is a leading manufacturer of stainless steel vessels and processing equipment, widely used in sanitary and industrial applications including dairy, food processing, beverage, pharmaceutical, and chemical industries. Known for high-quality fabrication, DCI tanks are built to meet strict ASME and National Board standards.
Description
Used DCI stainless steel jacketed tank with an approximate capacity of 8,500 liters (2,246 gallons). Constructed of 316L stainless steel, this vertical vessel features dished top and bottom heads and is designed for durability and corrosion resistance in demanding environments.

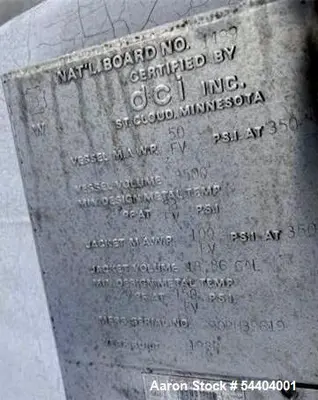

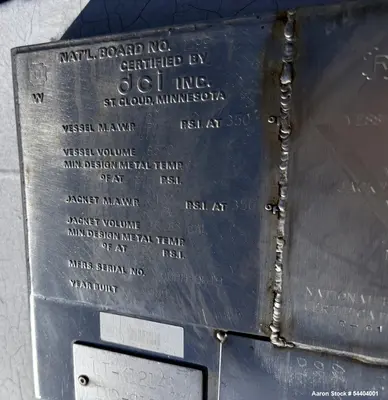

The tank is National Board certified (NB #1499) and rated for a maximum allowable working pressure (MAWP) of 53 PSI/full vacuum at 350°F, with a minimum design metal temperature (MDMT) of -20°F. The jacket is rated at 100 PSI/full vacuum at 350°F and MDMT -20°F, with an additional 150 PSI/full vacuum rating, allowing for efficient heating or cooling of product.
This non-agitated vessel includes an 18-inch manway, center bottom outlet, and modified legs (cut approximately even with the bottom outlet). Ideal for storage or processing applications requiring temperature control.
Specifications

Manufacturer: DCI

Capacity: 8,500 Liters (2,246 Gallons)

Material: 316L Stainless Steel

Orientation: Vertical

Construction: Dished top and bottom heads

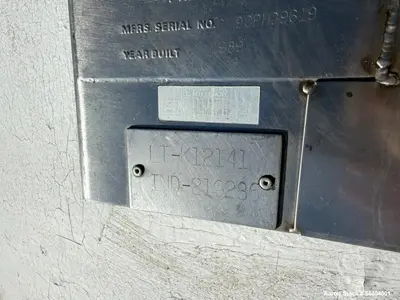

Serial Number: 90PH39619

Year Built: 1989

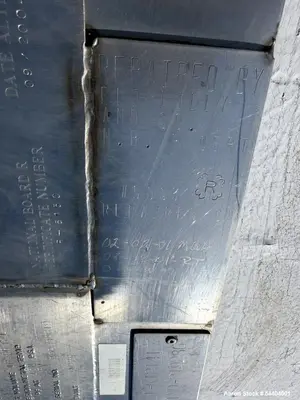

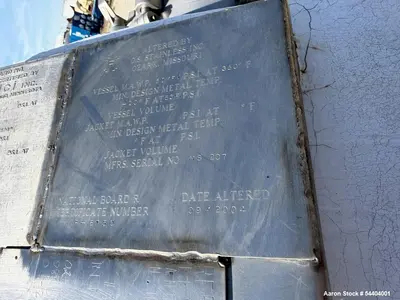

National Board Number: 1499

MAWP: 53 PSI / Full Vacuum @ 350°F

MDMT: -20°F

Jacket Rating: 100 PSI / Full Vacuum @ 350°F

Secondary Jacket Rating: 150 PSI / Full Vacuum

Agitation: None (non-agitated)

Manway: 18-inch

Outlet: Center bottom outlet

Legs: Cut near bottom outlet

Outside Diameter: ~90 inches

Inside Diameter: ~80 inches

Straight Side Height: ~108 inches

Overall Height: ~144 inches

Approx. Weight: 2,500 lbs

Applications
This DCI jacketed tank is ideal for:

Heated or cooled liquid storage
Food and beverage processing
Dairy processing systems
Pharmaceutical production
Cosmetic manufacturing
Chemical processing
Batch processing operations
Temperature-controlled storage
Mixing (external or recirculated systems)
Sanitary storage applications

What Products Would This Be Used For

Milk and dairy products
Liquid foods and syrups
Pharmaceuticals
Cosmetic creams and liquids
Chemicals and specialty fluids
Water and purified liquids
Cleaning solutions
Alcohol and beverage products
Liquid ingredients
Process intermediates
