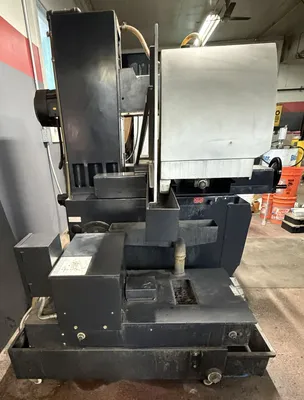

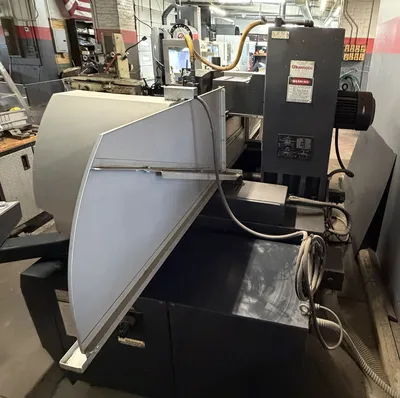

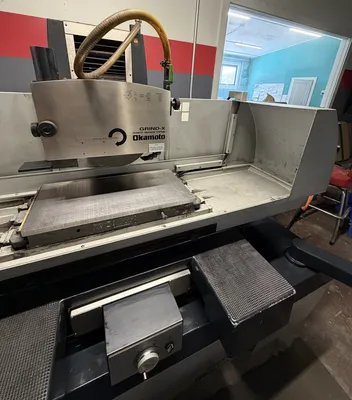

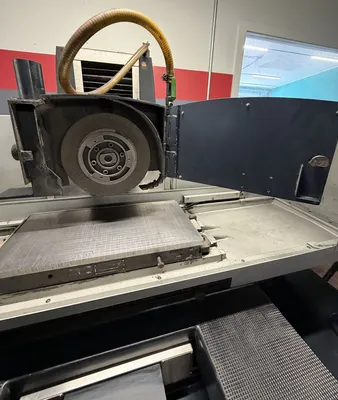

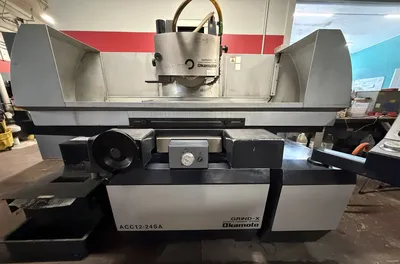

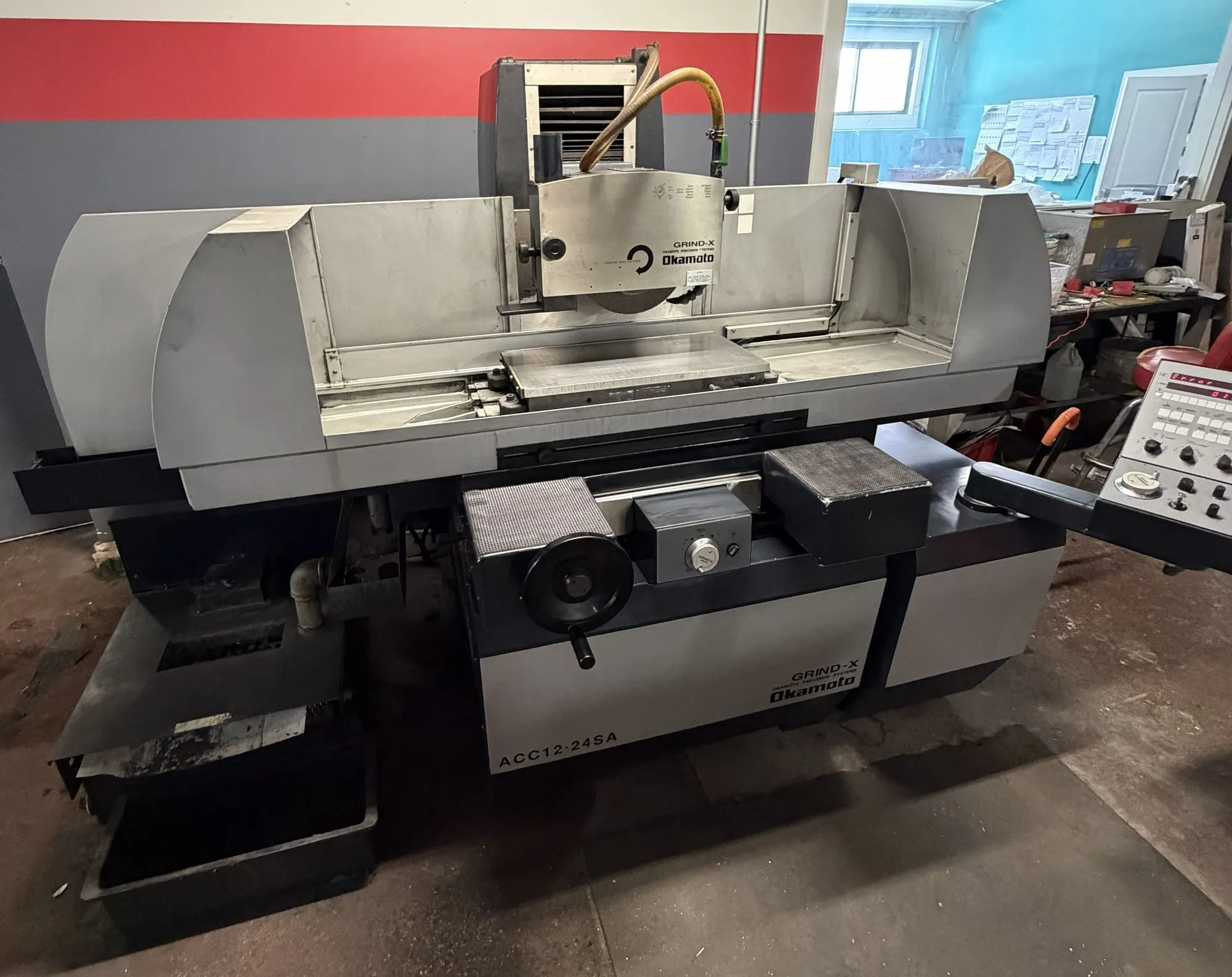

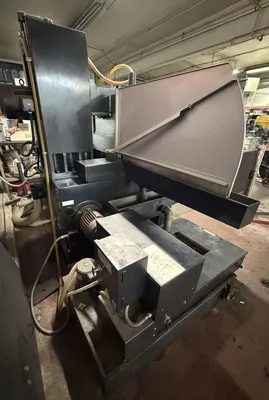

OKAMOTO 12-24 SA Reciprocating Precision Surface Grinder (used) New 2018 - saddle type surface grinder. The ACC-12•24 is a next generation automatic type surface grinder that provides the reliability and simplicity of electronic control while still providing "hands-on" operation. It incorporates the proven design and construction features that have made Okamoto automatic surface grinders the preferred choice for users worldwide.
| Table-W | 12" | 304.8 mm |
| Table-L | 24" | 609.6 mm |
| Power | 5 hp | 3.7 kW |
| Grinding Wheel Width | 1.5" | 38.1 mm |
| Grinding Wheel Dia. | 12" | 304.8 mm |
| Control | CNC (Marposs) | CNC (Marposs) |
Highly rigid construction with wide frame that eliminates table overhang.
Double Vee table slides.

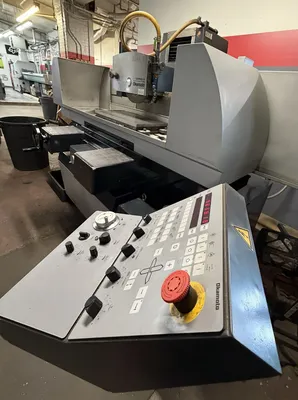

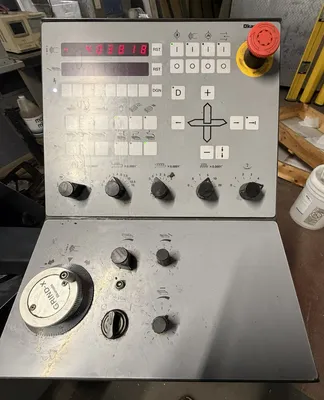

User-friendly MDI Control set-up. Touch Pad Control for Cross and Vertical Rapid Feeds.
Teach Function for Crossfeed Position.
Micro Feeder standard.
High-accuracy flat and form grinding with programmable dressing and dress compensation.
AC driven vertical feed with minimum increment of 0.00005".
Manual Pulse Generator also built into control.
All functions integrated into control.
Table Working Area W x L:12″ x 24″
Distance from Grinding Wheel to Table surface:13.6″
Grinding Wheel:12″ x 1.5″ x 5″
Grinding Wheel Spindle:5 hp
Floor Space:108″ x 76″ x 70″
Weight:5,380 lbs
Standard Accessories:
Grinding Wheel
Grind Wheel Flange
Wheel Guard for Ø16” x 2” width Wheel
Dresser Block with Diamond Tool
Flexible Nozzle

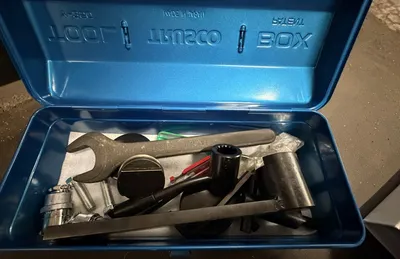

Necessary Tools
Leveling Bolts and Plates
Splash Cover
Automatic Demagnetizing with Adjustable Magnetic Power
OPTIONAL ACCESSORIES:
(One) A601PG3 Coolant System with Paper Filter (34 Gallon)

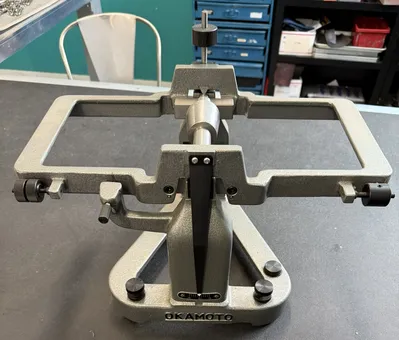

(One) A611 Grinding Wheel Balancing Stand with Arbor
(One) A604OKS Okamoto Electro Magnetic Chuck
(Height 2.95”, Pole Div = 0.59”, 95 W, Transverse)
