USED 1991 Bridgeport SERIES I

42" Table 2HP Spindle Bridgeport SERIES I VERTICAL MILL, Vari-Speed, R-8, Trak DRO, Servo Pwr Fd, Chrome,

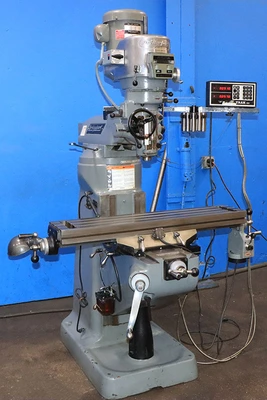

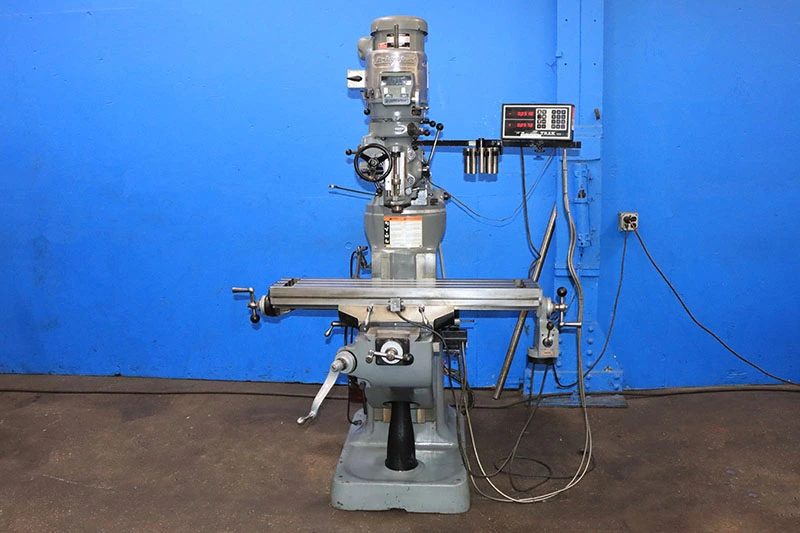

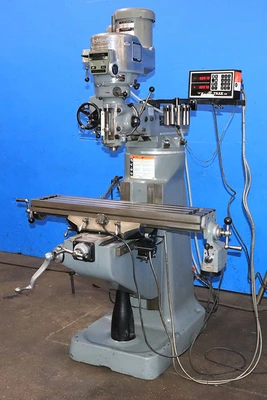

BRIDGEPORT VERTICAL MILLING MACHINE

MODEL: SERIES I, S/N: BR 258895, NEW: 1991

SPECIFICATIONS:

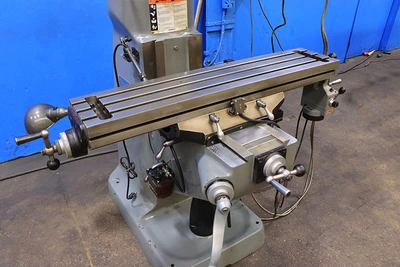

TABLE SIZE .............................. 9" X 48"

NUMBER OF T-SLOTS ....................... 3

LONGITUDINAL TABLE TRAVEL ............... 36"

CROSS TRAVEL ............................ 12"

QUILL TRAVEL ............................ 5"

KNEE TRAVEL ............................. 16"

RAM TRAVEL .............................. 12"

MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2" / 2-1/2"

MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.

    TP FACE OF COLUMN ................... 18-3/4" / 6-3/4"

HEAD TILT, LEFT & RIGHT ................. 90 DEGREES

HEAD TILT, FRONT & REAR ................. 45 DEGREES

INFINITELY VARIABLE SPEED RANGE ......... 60-4,200 RPM

SPINDLE TAPER ........................... R-8

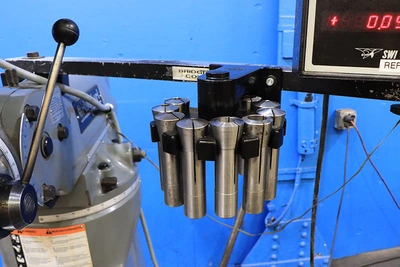

MAX COLLET CAPACITY ..................... 3/4"

QUILL TRAVEL ............................ 5"

QUILL FEEDS ........................ 0.0015", 0.003", 0.006"

APPROXIMATE WEIGHT ...................... 2,000 LBS

EQUIPPED WITH:

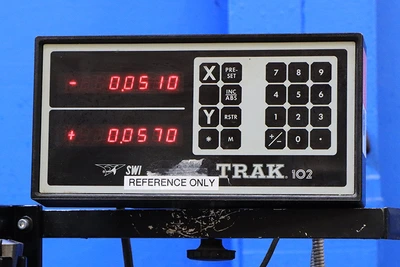

TRAK TWO AXIS DIGITAL READOUT

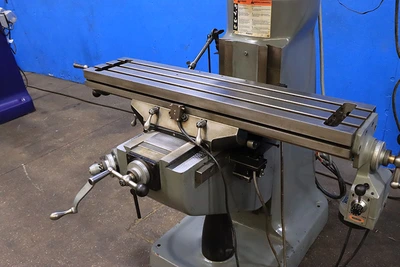

SERVO POWER FEED FOR LONGITUDINAL TRAVEL

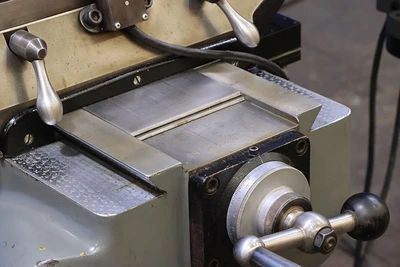

CHROME WAYS

BIJUR ONE SHOT LUBRICATION SYSTEM

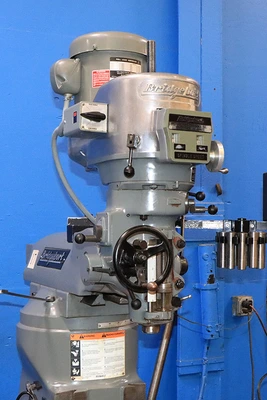

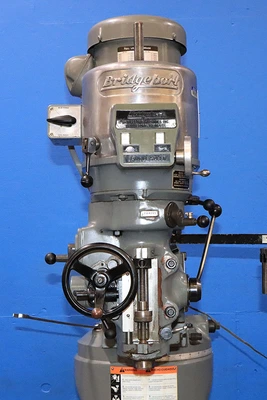

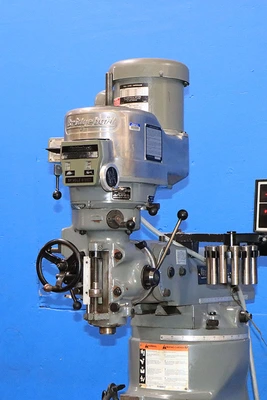

BRIDGEPORT SERIES I MILLING HEAD

2 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

CONDITION:   *** SUPERB  ***

FOR MORE INFORMATION: Call David at 973-497-7570
