USED 2019 MIYANO ABX-64SYY
Overview
Description

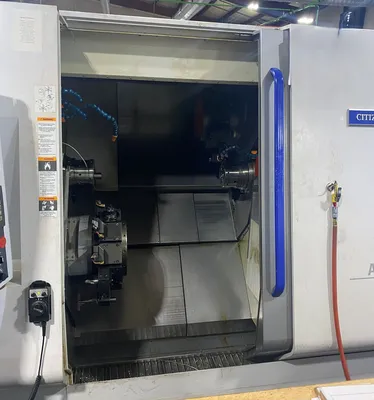

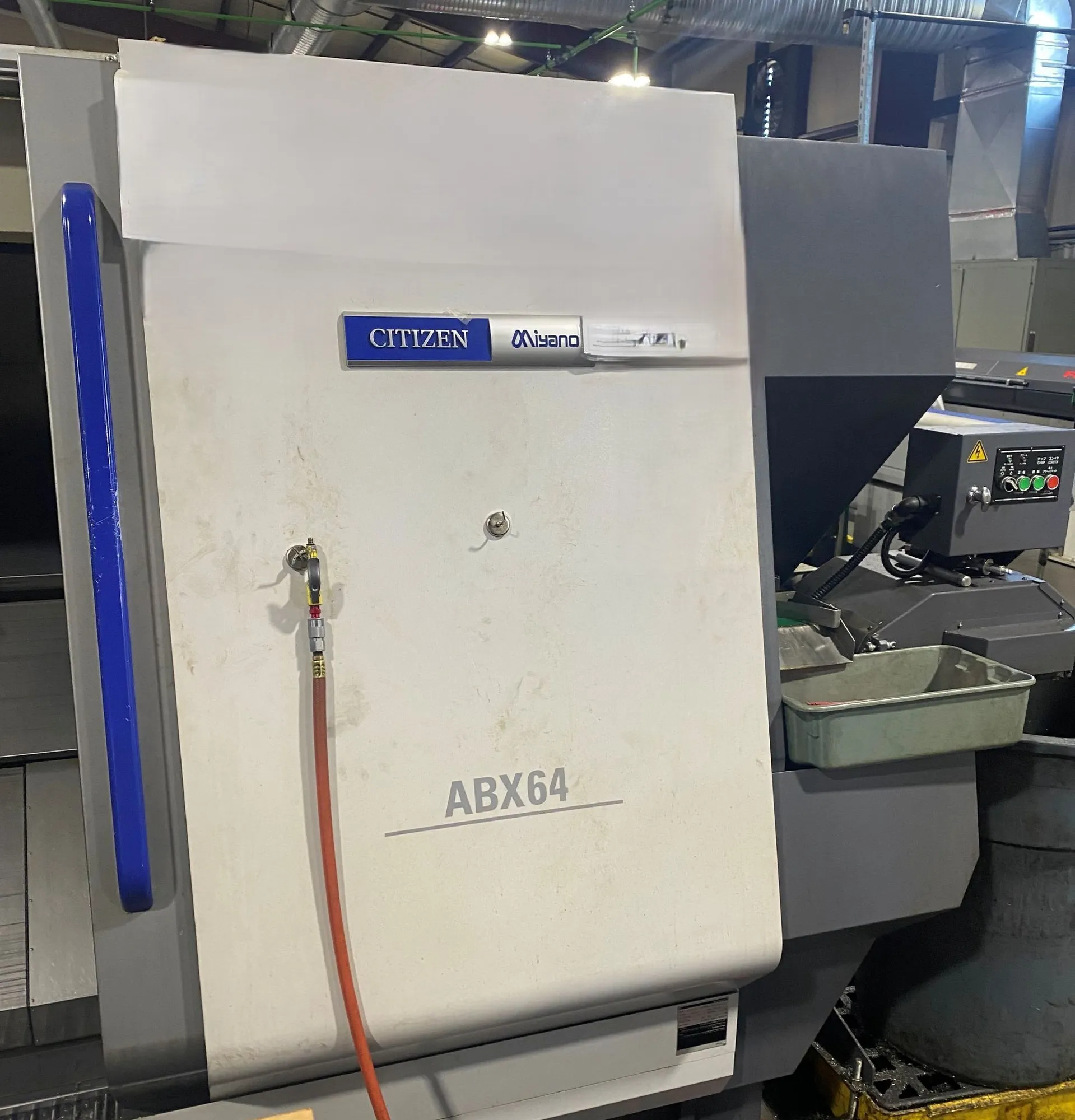

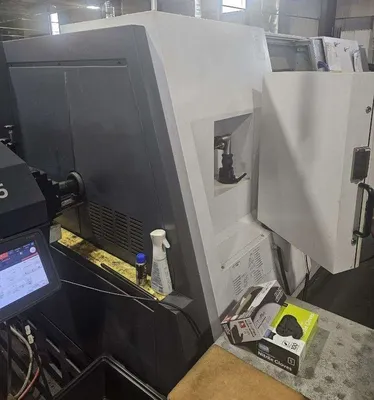

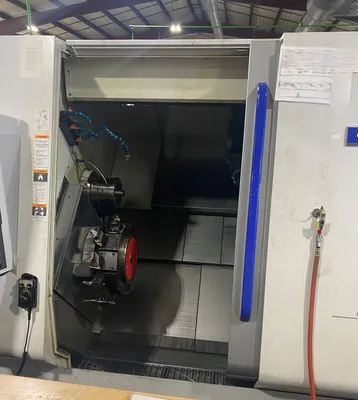

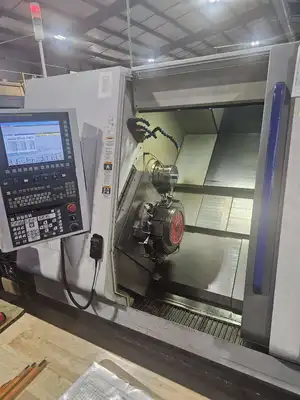

(1) MIYANO ABX-64SYY Multi-Axis CNC Lathe (used) New 2019 w/low hours, FMB Turbo 5-65 magazine bar loader (12' bars), 2 channel sets, Chip Conveyor, Servo Parts Catcher, Part Conveyor, Part Ejector for Right Spindle (Cylinder Type), Programmable Through Coolant and Air for Right Spindle (Headwall Air Also), Dead length S Style Collet Chucks for Left(S26) and Right(S22) Spindle, Light Tower – 3-Color, Cutoff Confirmation, Tool Setter and Tooling Package - Static Tools Included and (4) X Mill Drill Live Tool Holders, (4) Z Mill Drill Live Holders, All manuals, tool kit and keys. RAN OIL.
Specifications
| # Axis | 9 | 9 |
|---|---|---|
| Machining Length | 5" | 127 mm |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 64 mm | 2.5197" |
| Power | 15 hp | 11.2 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Tailstock | No | No |

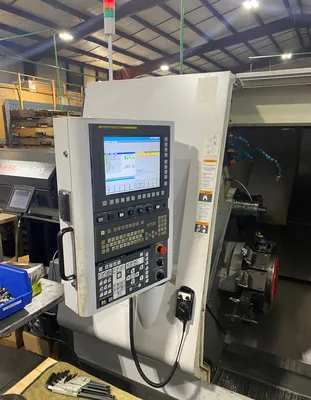

| Control | CNC (Fanuc 31i-B) | CNC (Fanuc 31i-B) |
| Weight | 24,000 LBS | 24,000 LBS |

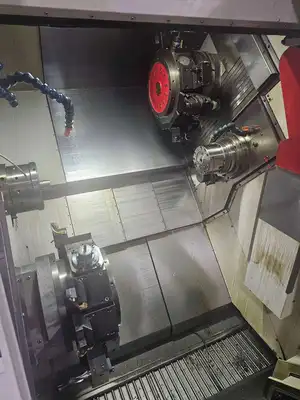

9-CUTTING AXES (X1, Z1, Y1, X2, Z2, Y2, Zs, C1, C2)
CNC SUPER TURNING CENTER WITH
• TWO SPINDLES
• TWO TURRETS
• TWO Y-AXIS SLIDE
• 40-Nm TWENTY-FOUR REVOLVING TOOL STATIONS
Super ABX Features
More powerful Live Tool capability.
The 40 Nm Tool with 6.0HP Motor allows for increased productivity.
2.5" Diameter Bar Capacity
5" Work Length (on standard parts catcher)
I. Including:
1) 20 HP AC Left (Main) Spindle Drive Motor
2) 10 HP AC Right (Back) Spindle Drive Motor
3) 2.5” Dia. Left (Main) Spindle Chuck System for H-S26 Collet Pads
4) 2” Dia. Right (Back) Spindle Chuck System for H-S22 Collet Pads (Spindle Through Bore)
5) Spindle Disk Brake on Left (Main) Spindle
6) Spindle Disk Brake on Right (Back) Spindle
7) Air Blow on Left (Main) Spindle
8) Air Blow on Right (Back) Spindle (Outer and Inner)
9) Work Ejector (Cylinder Type)
10) 2 Sets of 12 Stations Turret (HD1 & HD2) with Y-Axis
11) 6.0 HP Revolving Tool Motor
12) Filler Tube Assembly
13) Coolant System with Level Switch (106 Gallon Capacity Coolant Tank)
14) High Pressure Coolant System (2-Turrets and Right Spindle)
15) Cut-Off Confirmation
16) Door Interlock
17) Automatic Lubrication System
18) Programmable Parts Catcher (Servo Type)
19) Parts Conveyor
20) Machine Light
21) Signal Tower, 3 Steps
22) Tool Setter
23) Chip Conveyor (Hinge Type: High)
24) Bar Feed Interface (Harting 24 Pin Type Connector)
Equipped With

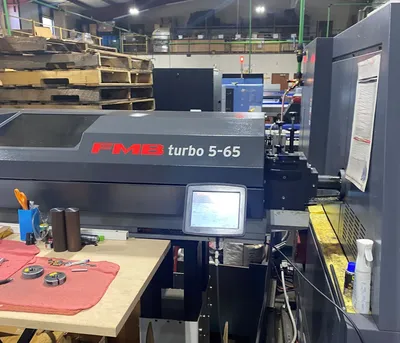

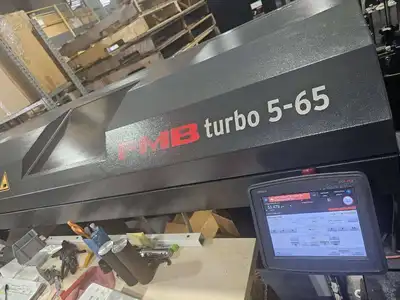

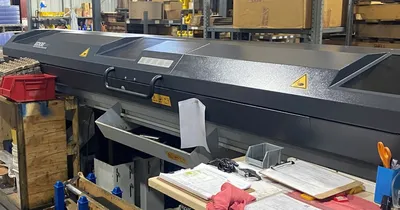

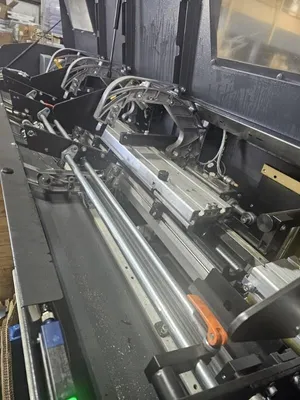

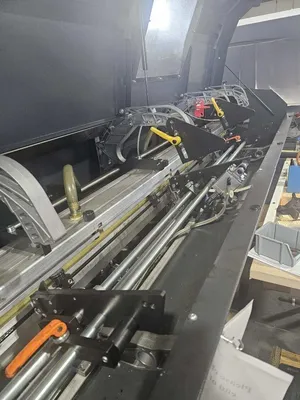

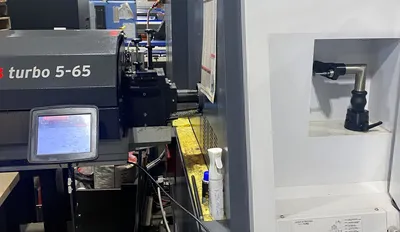

FMB Turbo 5-65 magazine bar loader (12' bars), 2 channel sets

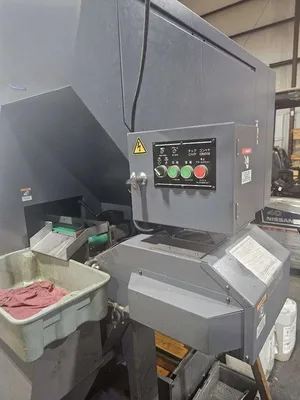

Chip Conveyor
Servo Parts Catcher
Part Conveyor, Part Ejector for Right Spindle (Cylinder Type)
Programmable Through Coolant and Air for Right Spindle (Headwall Air Also)
Dead length S Style Collet Chucks for Left(S26) and Right(S22) Spindle
Light Tower – 3-Color
Cutoff Confirmation
Tool Setter and Tooling Package - Static Tools Included and (4) X Mill Drill Live Tool Holders, (4) Z Mill Drill Live Holders
All manuals, tool kit and keys.
RAN OIL.
