The EDWARDS ED9-HAT1000 10 Ton Tube/Pipe Bender is a quick-connect hydraulic tool to greatly expand your fabrication capabilities. Designed for medium to heavy material, the Edwards 10 Ton Bender powers through 2" (I.D.) Schedule 40 pipe, 2-1/2" (O.D.) tube and 2" square tube quickly and accurately. Choose from our over 260 standard Bender Die Sets to get your job done.
| Roll Adjustment | Hydraulic | Hydraulic |
| Motor | 5 HP | 5 HP |
| Power | 3 Phase, 575V | 3 Phase, 575V |
| Pipe Capacity | 2 in. (Sch. 40) | 2 in. (Sch. 40) |
| Round Tube Capacity | 2.5 in. (.095) | 2.5 in. (.095) |
| Square Tube Capacity | 2 in. (.25) | 2 in. (.25) |
| Chromolly Round Tube | 2.25 in. (.083) | 2.25 in. (.083) |
| Capacity | 10 T | 9,071.9 kg |
| Degree of Bend (Max) | 180 | 180 |
| Dimensions | H 40.5 x W 36.5 x D 42 in. | H 40.5 x W 36.5 x D 42 in. |
| Weight | 600 lbs. | 600 lbs. |
*Optional:
10 Ton Bender and Portable Power Unit 1 Phase, 230 Volt
10 Ton Bender and Portable Power Unit 3 Phase, 230 Volt
10 Ton Bender and Portable Power Unit 3 Phase, 460 Volt
10 Ton Bender and Portable Power Unit 3 Phase, 575 Volt
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

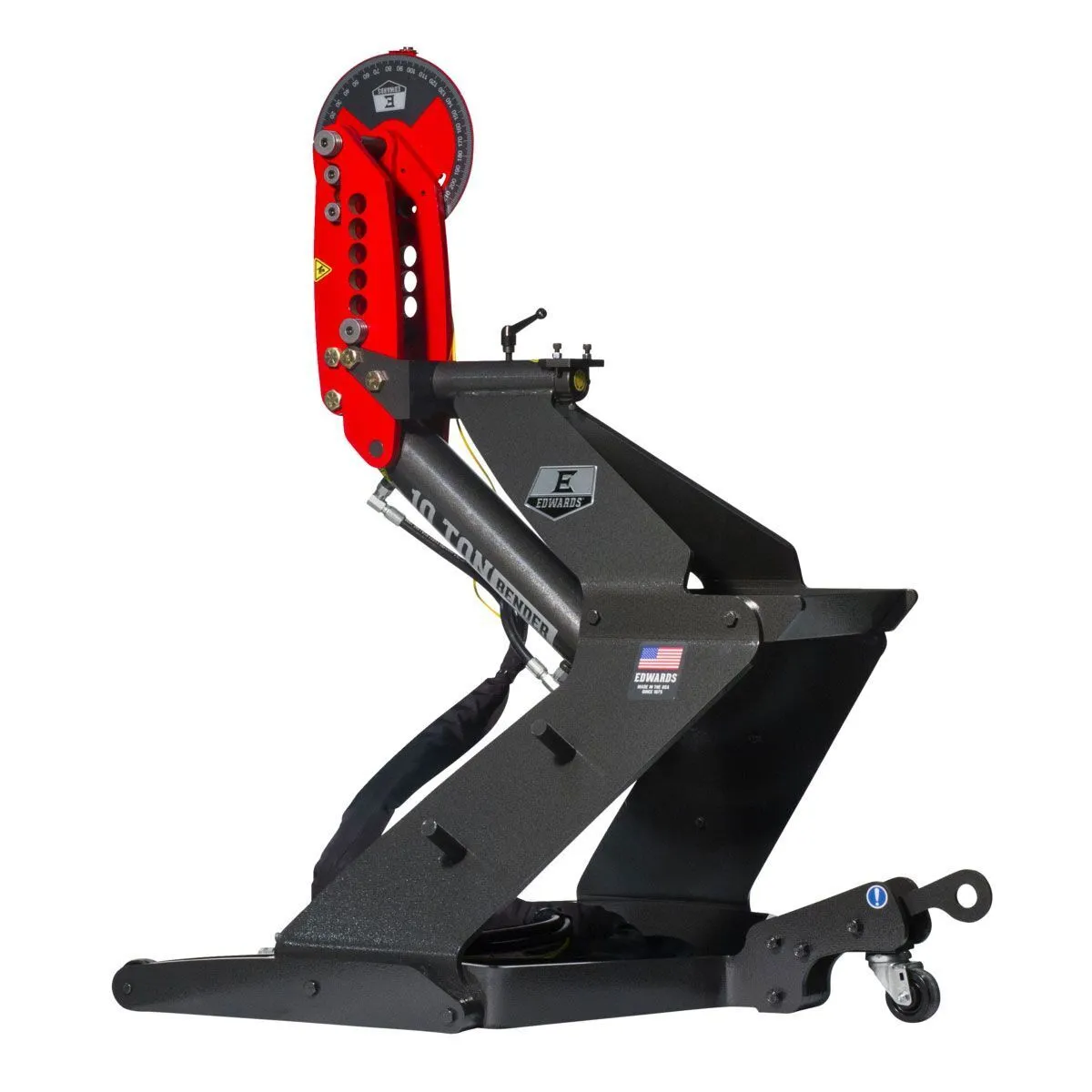

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Models:
10 Ton Bender and Portable Power Unit 1 Phase, 230 Volt
10 Ton Bender and Portable Power Unit 3 Phase, 230 Volt
10 Ton Bender and Portable Power Unit 3 Phase, 460 Volt
10 Ton Bender and Portable Power Unit 3 Phase, 575 Volt
Optional Items:
HAT001 - Portable Power Unit 1 Phase, 230 Volt
HAT002 - Portable Power Unit 3 Phase, 230 Volt
HAT003 - Portable Power Unit 3 Phase, 380 Volt, 50Hz
HAT004 - Portable Power Unit 3 Phase, 460 Volt
HAT005 - Portable Power Unit 3 Phase, 575 Volt
HAT006 - Portable Power Unit 3 Phase, 208 Volt
Tube Bender Dies
Pipe Bender Dies
Square Tube Bender Dies
